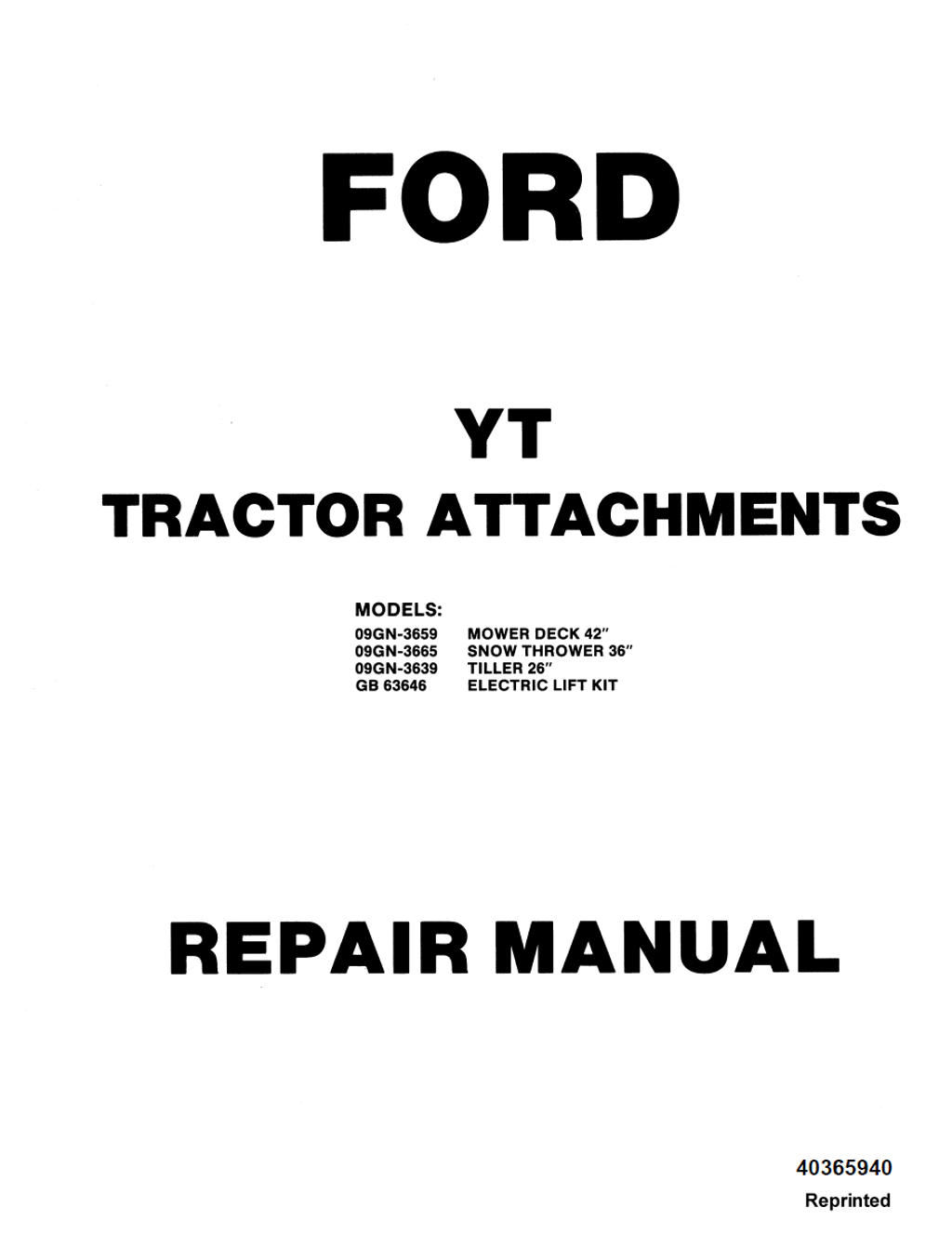

Ford 09GN-3659, 09GN-3665, 09GN-3639, GB 63646 YT Tractor Attachments Repair Manual 40365940 English
Brands: Ford / Ford New Holland / New Holland Agriculture
Equipment Type: Lawn & Garden Tractor Attachments
Manuals Type: Repair Manual
Machine Model & Serial Number: 09GN-3659 (42" Mower Deck), 09GN-3682/3683 (42" & 48" Mowers), 09GN-3665 (36" Snow Thrower), 09GN-3639 (26" Tiller), GB 63646 / GB 63676 (Electric Lift Kit)
Region: N/R
Book Code: 40365940
Issued: Reprinted (Includes 1984-1986 Revisions)
Language: English
Pages: 110
File Format: Portable Document Format (PDF)
Remark: Massive factory repair manual compilation for Yard Tractor (YT) attachments. Extremely valuable: Features deep-level disassembly and rebuild procedures for the 26" Rotary Tiller chain case, Tine Shaft bearing and seal replacements. Also covers precision spindle replacements for mower decks, worm gear calibration for snow throwers, and comprehensive wiring diagrams/testing for the Electric Lift Kit.
Table of contents
- 42" MOWER ATTACHMENT (Model 09GN-3659)
- Introduction and Safety
- Set-Up Instructions (Initial Deck Set-Up, Deck Mounting, Deck Removal)
- Lubrication and Maintenance
- Adjustment and Servicing
- Blade Removal, Sharpening and Balancing
- Drive Belt Adjustment and Replacement
- Mower Belt Adjustment and Replacement
- Spindle Removal and Replacement
- Mower Deck Leveling (Front to Rear Pitch, Side to Side Level, Blade Alignment)
- Trouble-Shooting of Mower Cutting Problems
- Bolt Torque Specifications
- SNOW THROWER 36" (Model 09GN-3665)
- Introduction and Safety
- Snow Thrower Mounting and Removal
- Lubrication and Maintenance
- Adjustments and Servicing
- Primary (Upper) and Secondary (Lower) Drive Belt Adjustments
- Drive Chain Adjustment and Replacement
- Lift Height Adjustment and Worm Gear Adjustment
- Skid and Scraper Blade Adjustment
- Drive Pulley Shaft Replacement
- Output Shaft Removal and Replacement
- Idler Sprocket and Collector Removal and Replacement
- Trouble-Shooting
- 26" ROTARY TILLER (Model 09GN-3639)
- Introduction and Safety
- Set-Up Instructions (Tiller Mounting, Tiller Removal, Tilling Depths)
- Lubrication and Maintenance
- Adjustment and Servicing
- Primary and Secondary Drive Belt Adjustments
- Tiller Chain Case Removal
- Tine Shaft Bearing Adjustment
- Tine Shaft Seal and Input Shaft Seal Replacement
- Chain Case Rebuild
- Trouble-Shooting
- ELECTRIC LIFT KIT (Models GB 63646 / GB 63676)
- Introduction and Safety
- Set-Up Instructions (Lift Kit Assembly and Mounting)
- Adjustment and Servicing
- Power Lift Assembly Removal and Replacement
- Test of Operation
- Power Lift Switch Check
- Wiring Diagrams (GB63646 and GB63676)
- Trouble-Shooting
- 42" & 48" MOWER ATTACHMENT (Model 09GN-3682/3683)
- Introduction and Safety
- Set-Up Instructions (Deck Mounting and Removal)
- Adjustment and Servicing (Blade Removal, Drive Belt, Spindle Replacement)
- Mower Deck Leveling and Trouble-Shooting
Service Techniques
Appropriate service methods and proper repair procedures are essential for the safe, reliable operation of all equipment. The Operator's Manual, supplied with each tractor or implement, contains detailed safety precautions relating to driving, operating and servicing. Replace worn or damaged components, such as mower drive belts, worn spindles, or bent snow thrower stop bars, to ensure optimal attachment performance and safety. When reassembling gearboxes or chain cases, always use new oil seals and ensure proper shimming is achieved.
