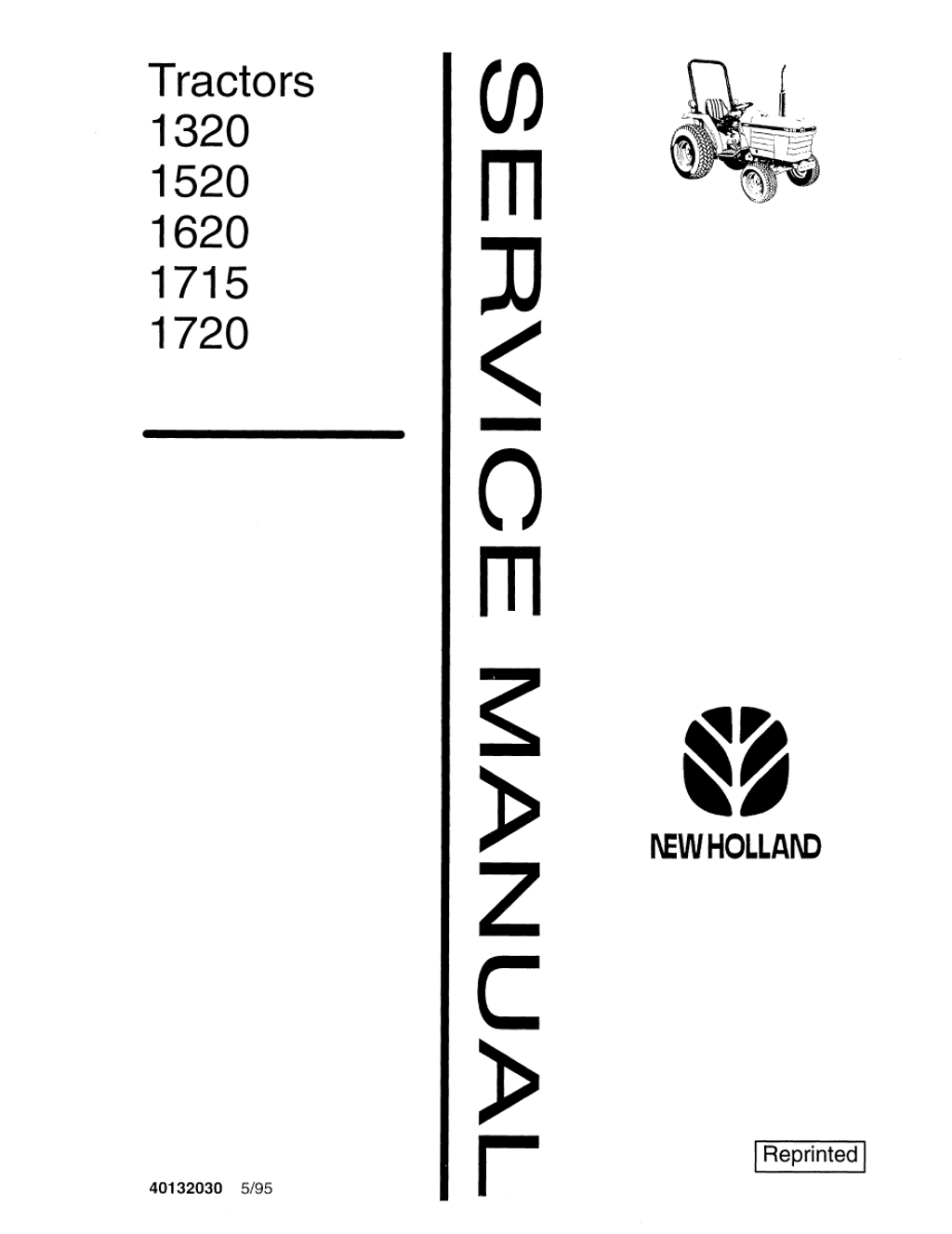

Ford New Holland 1320, 1520, 1620, 1715, 1720 Tractor Service Manual 40132030 (SE4602) English
Brands: Ford / Ford New Holland / New Holland Agriculture
Equipment Type: Tractor
Manuals Type: Service Manual
Machine Model & Serial Number: 1320, 1520, 1620, 1715, 1720
Region: N/R
Book Code: 40132030 (Includes Supplements 40132022, 40132023, 40132024)
Issued: Printed in U.S.A. May, 1995
Language: English
Pages: 594
File Format: Portable Document Format (PDF)
Remark: Massive complete factory service manual compilation including multiple supplements. Extremely valuable: Contains comprehensive Engine Overhaul procedures for the 3-Cylinder Diesel Engine (pistons, connecting rods, cylinder block, and crankshaft). Also features deep-level overhaul guides for the 9x3 Gear Transmission, Hydrostatic Transmission, 12x12 Synchromesh Shuttle Transmission, and Four-Wheel Drive (FWD) axles.
Table of contents
- PART 1 - ENGINE SYSTEMS
- Chapter 1 ENGINE AND LUBRICATION SYSTEM
- Description and Operation
- Engine Overhaul (Cylinder Head, Valves, Pistons, Connecting Rods, Crankshaft, Main Bearings, Camshaft)
- Engine Front Cover, Timing Gears and Oil Pump
- Chapter 2 COOLING SYSTEM (Radiator, Water Pump, Thermostat)
- Chapter 3 TROUBLE SHOOTING, SPECIFICATIONS AND SPECIAL TOOLS
- Chapter 1 ENGINE AND LUBRICATION SYSTEM
- PART 2 - FUEL SYSTEM
- Chapter 1 INJECTION PUMP (Description, Spill Timing Procedures, Smoke Screw Adjustment)
- Chapter 2 INJECTORS (Overhaul and Adjustments)
- Chapter 3 TROUBLE SHOOTING, SPECIFICATIONS AND SPECIAL TOOLS
- PART 3 - ELECTRICAL SYSTEM
- Chapter 1 WIRING, SWITCHES, GLOW PLUGS AND INSTRUMENTATION
- Chapter 2 BATTERY
- Chapter 3 STARTING SYSTEMS (Starter Motor Overhaul, Neutral Start Switch, Key Start Switch)
- Chapter 4 CHARGING SYSTEM (Alternator Disassembly and Assembly)
- Chapter 5 ENGINE FUEL STOP SOLENOID
- PART 4 - CLUTCHES
- Chapter 1 SINGLE CLUTCH
- Chapter 2 DOUBLE CLUTCH 1320-1520
- Chapter 3 DOUBLE CLUTCH 1720
- Chapter 4 SERVICING CLUTCH RELATED COMPONENTS (Pilot Bearing, Release Bearing, Linkage)
- PART 5 - TRANSMISSION SYSTEMS
- Chapter 1 9 x 3 GEAR TRANSMISSION MODEL 1320-1520
- Chapter 2 HYDROSTATIC TRANSMISSION MODEL 1320-1520
- Chapter 3 HYDROSTATIC TRANSMISSION GEARBOX MODEL 1320-1520
- Chapter 4 HYDROSTATIC TRANSMISSION CONTROL LINKAGE
- Chapter 5 NON-SYNCHROMESH 12 x 4 GEAR TRANSMISSION - MODEL 1720
- Chapter 6 SYNCHROMESH 12 x 12 SHUTTLE TRANSMISSION - MODEL 1720
- Chapter 7 CREEPER GEAR OPTION MODEL 1720
- PART 6 - POWER TAKE-OFF SYSTEMS
- Chapter 1 POWER TAKE-OFF SYSTEMS MODEL 1320-1520 (Transmission Drive, Live PTO, Hydrostatic)
- Chapter 2 MID-MOUNT POWER TAKE-OFF MODEL 1320-1520
- Chapter 3 POWER TAKE-OFF SYSTEMS MODEL 1720
- PART 7 - DIFFERENTIAL, REAR AXLE AND BRAKES
- Chapter 1 DIFFERENTIAL, REAR AXLE AND BRAKES (Overhaul and Adjustments)
- Chapter 2 SPECIFICATIONS
- PART 8 - HYDRAULIC SYSTEM
- Chapter 1 HYDRAULIC SYSTEM CIRCUITS (Control Valve Assembly, Flow Control Valve)
- Chapter 2 HYDRAULIC PUMP AND FILTER
- Chapter 3 REMOTE VALVE (Single and Double Spool)
- PART 9 - STEERING SYSTEMS
- Chapter 1 POWER STEERING SYSTEM (Control Valve, Pump, Cylinder Overhaul)
- Chapter 2 TROUBLE SHOOTING, TESTING AND SPECIFICATIONS
- PART 10 - FRONT AXLE AND RELATED PARTS
- Chapter 1 TWO WHEEL DRIVE
- Chapter 2 FOUR WHEEL DRIVE (Gear Reduction Drop Box, Front Axle Differential)
- PART 11 - WHEELS AND TIRES
- PART 12 - SEPARATING THE TRACTOR
- SUPPLEMENTS
- 1620 Tractor Supplement
- 1715 Tractor Supplement
- Hydraulic Control Valve (HPL) Supplement (Tractors 1320 through 3415)
Foreword
This repair manual provides information for the proper servicing and overhaul of Ford 1320, 1520, 1620, 1715, and 1720 Tractor Models and is an essential publication for all service personnel carrying out repairs and maintenance procedures. The Manual is divided into twelve PARTS, each sub-divided into Chapters. Each Chapter contains information on general operating principles, detailed inspection and overhaul and, where applicable, troubleshooting, special tools and specifications.
