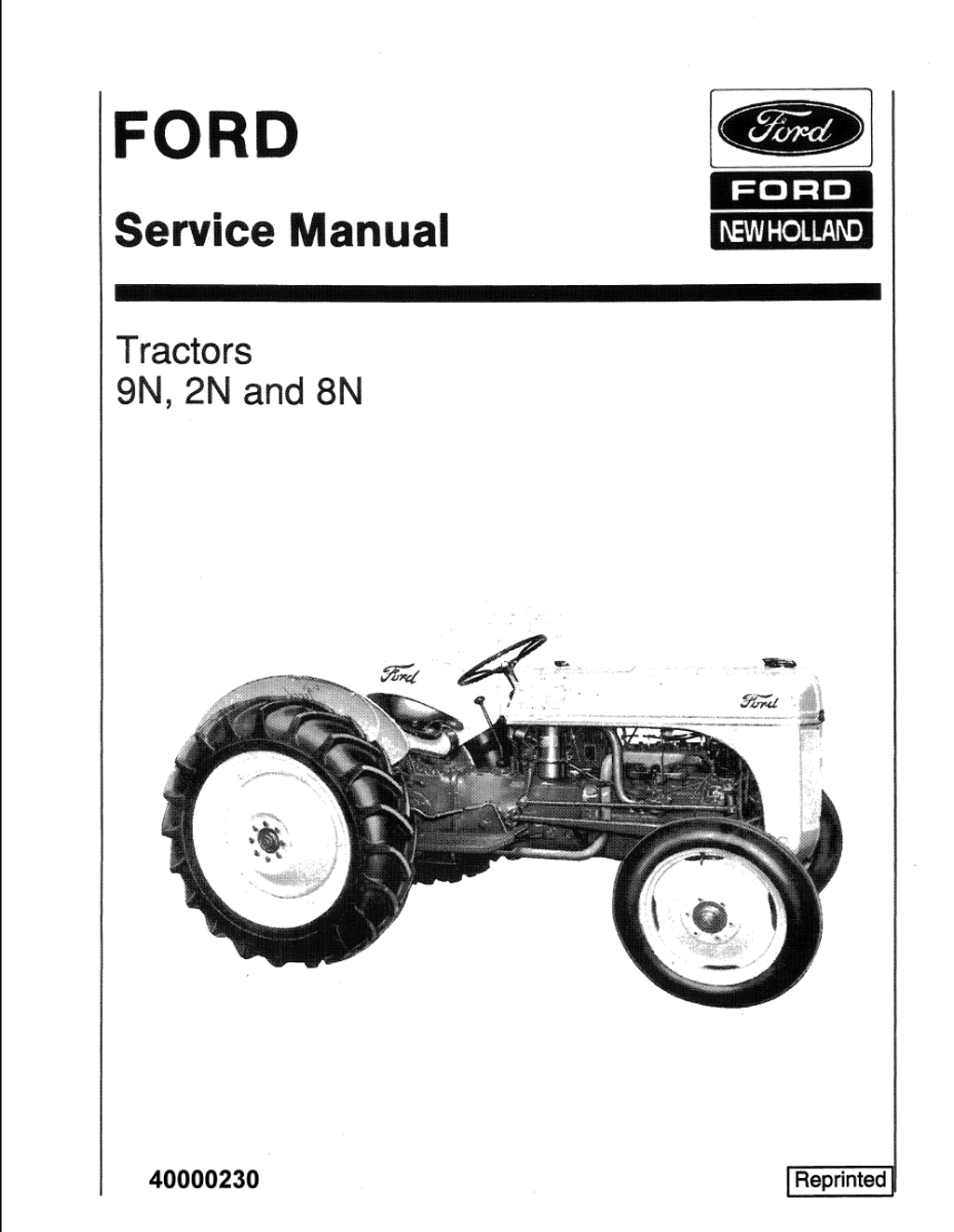

Ford New Holland 2N, 8N, 9N Tractor Service Manual 40000230 English
$ 15.99 USD
Brands: Ford / Ford New Holland / New Holland Agriculture
Equipment Type: Tractor
Manuals Type: Service Manual
Machine Model & Serial Number: 2N, 8N, 9N
Region: N/R
Book Code: 40000230
Issued: Printed in U.S.A.
Language: English
Pages: 148
File Format: Portable Document Format (PDF)
Remark: Compiled from several out-of-print Ford Motor Company Publications.
Table of contents
- Description and Specifications
- 111. Description
- 112. Specifications
- a. General
- b. Capacities
- c. Engine
- d. Ignition System
- e. Carburetor
- f. Governor
- g. Cooling System
- h. Electrical System
- i. Transmission
- j. Rear Axle
- k. Brakes
- l. Steering Gear
- m. Hydraulic System
- n. Power Take-off Adapter
- o. Belt Pulley
- Chapter 1 - Engine
- DESCRIPTION AND DISASSEMBLY
- 111. Data
- 112. Accessory Removal
- 113. Engine Disassembly
- INSPECTION AND REPAIR
- 121. Crankshaft and Flywheel
- 122. Cylinder Block
- 123. Pistons and Connecting Rods
- 124. Camshaft and Valve Mechanism
- 125. Cylinder Head and Front Cover
- 126. Oil Pump
- 127. Water Pump
- 128. Governor
- 129. Oil Pan, Intake and Exhaust Manifolds
- ASSEMBLY OF ENGINE
- 131. Assembly
- 132. Installation of Accessories
- FITS AND TOLERANCES
- 141. Definition of Fits
- 142. Fits and Tolerances
- 143. Torque Wrench Readings
- 4-CYLINDER ENGINE CARBURETOR
- 221. Disassembly
- 222. Cleaning, Inspection, and Repair
- 223. Assembly
- SERVICING THE STARTER
- I. Removing the Starter from the Tractor
- II. Disassembling the Starter
- III. Cleaning and Inspecting the Starter
- IV. Assembling the Starter
- V. Disassembling the Bendix
- VI. Assembling the Bendix
- VII. Installing the Starter on the Tractor
- DESCRIPTION AND DISASSEMBLY
- Chapter 2 - Transmission
- 131. Disassembly
- 132. Inspection and Repair
- 133. Assembly
- Chapter 3 - Power Take-Off
- 161. Disassembly
- 162. Inspection and Repair
- 163. Assembly
- Chapter 4 - Belt Pulley
- 171. Disassembly
- 172. Inspection and Repair
- 173. Assembly
- Chapter 5 - Rear Axle
- 151. Disassembly
- 152. Inspection and Repair
- 153. Assembly
- Chapter 6 - Hydraulic System
- 141. Hydraulic Unit
- 142. Hydraulic Pump
- 143. Hydraulic System Adjustments
- Chapter 7 - Steering Gear
- 121. Adjustments
- 122. Disassembly
- 123. Inspection and Repair
- 124. Assembly
- Chapter 8 - Service Bulletins
- Engine
- New Valves and Adjustable Tappets
- Engine Overhaul Gasket Kit
- Replacing Crankshaft Bearing Liners
- Tractor Changes-Use for Effective Point of Change Only
- Wrenches for Adjustable Tappets
- Head Bolt Torque Specifications
- 8N Ford Tractor Engine
- Servicing Cast Iron Sleeves
- Engine Valve Clearance
- Oversize Pistons and Ring Sets
- Ignition
- Installing and Timing the Angle Drive Distributor
- Distributor Shaft 8N-12175
- Correction of Errors in Tractor Operator's Manuals
- Dust Shield Kit for Angle Drive Distributor
- Transmission
- Transmission Jumping Out of Reverse
- Hydraulic
- Hydraulic Pump Exhaust Valve Retaining Pins
- Failure of the 74034-S Pin in the Hydraulic Lift Cover Assembly
- Servicing Hydraulic Pump Exhaust Valve
- Rear Axle and Drive
- Rear Axle Spline and Hub
- Steering
- Locating Marks for Adjustment of Front Wheel Toe-In
- Electrical
- Installation of Generator 8N-10000-B
- Fuel
- Carburetors on 8N Ford Tractors
- Miscellaneous or General
- 8N Tractor Changes
- Engine
Introduction
This service manual has been compiled from several out-of-print Ford Motor Company Publications. Although the primary subject of this manual is the 8N tractor, most of the information which follows is also useful for 9N and 2N tractors.
