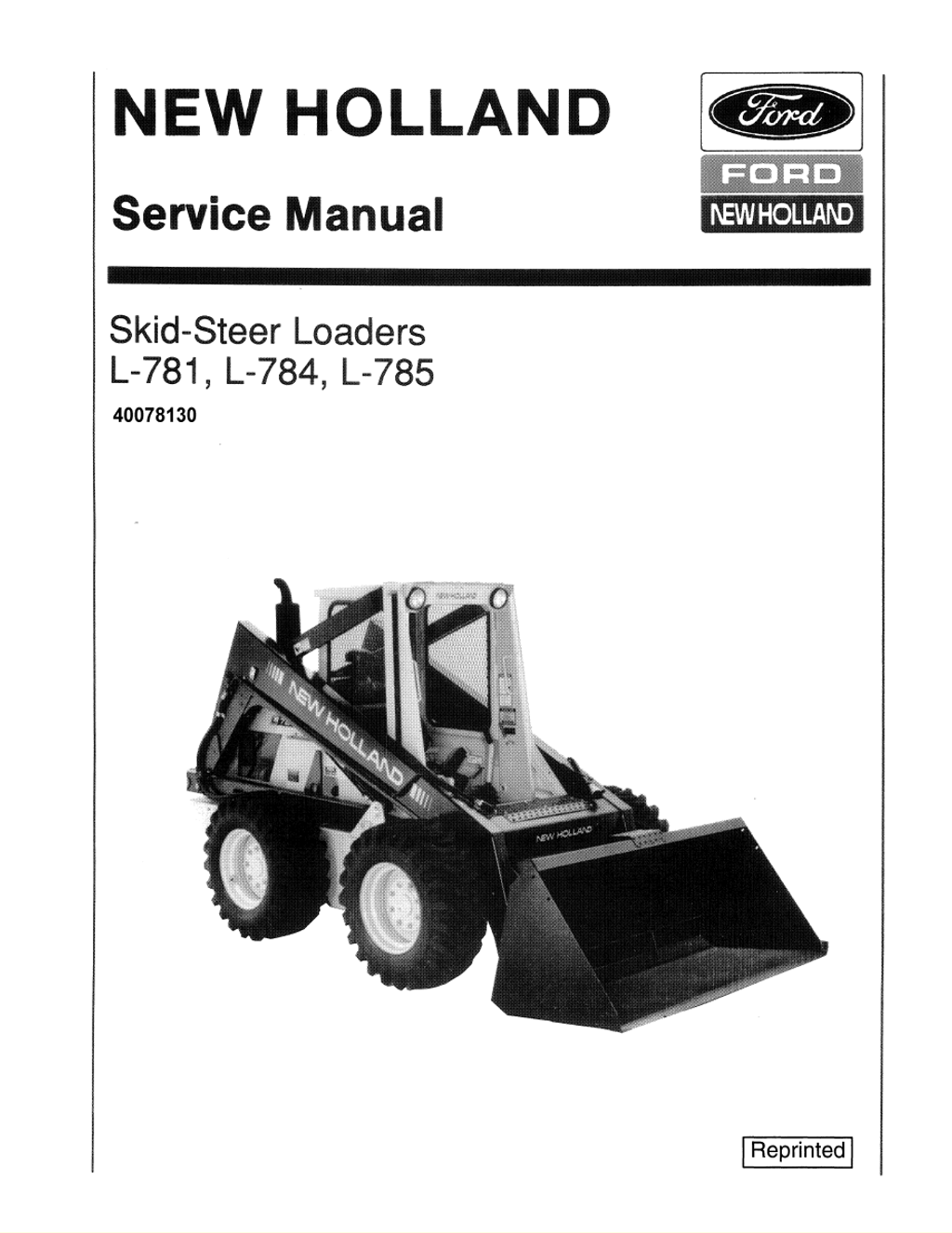

Ford New Holland L781, L783, L784, L785 Skid Steer Loader Service Manual (Chassis only) 40078130 English
Brands: Ford New Holland / New Holland Construction
Equipment Type: Skid Steer Loader
Manuals Type: Service Manual (Chassis only)
Machine Model & Serial Number: L781, L783, L784, L785
Region: N/R
Book Code: 40078130
Issued: Printed in U.S.A.
Language: English
Pages: 106
File Format: Portable Document Format (PDF)
Remark: For information on engine repair, refer to the manufacturer's service manual.
Table of contents
- SAFETY
- SECTION 1 - OPERATION
- SECTION 2 - STEERING ADJUSTMENTS
- SECTION 3 - HYDROSTATIC TRANSMISSION REMOVAL
- SECTION 4 - TRANSMISSION PUMP REPAIR
- SECTION 5 - HYDROSTATIC TRANSMISSION MOTORS
- SECTION 6 - GEAR PUMP
- SECTION 7 - BUCKET AND BOOM CYLINDERS
- SECTION 8 - CONTROL VALVE
- SECTION 9 - FINAL DRIVE
- SECTION 10 - ELECTRICAL SYSTEM
- SECTION 11 - SEAT ACTIVATED BOOM LOCKOUT
- SECTION 12 - TROUBLESHOOTING
- SECTION 13 - SPECIFICATIONS
- INDEX
Introduction
This manual provides the technical information needed to properly service and maintain the L-780 series skid-steer loaders. Use this manual in conjunction with the operator's manual which is supplied with the loader. Keep both manuals available for ready reference. On New Holland equipment, left and right are determined by standing behind the unit, looking in the direction of travel.
