40215110

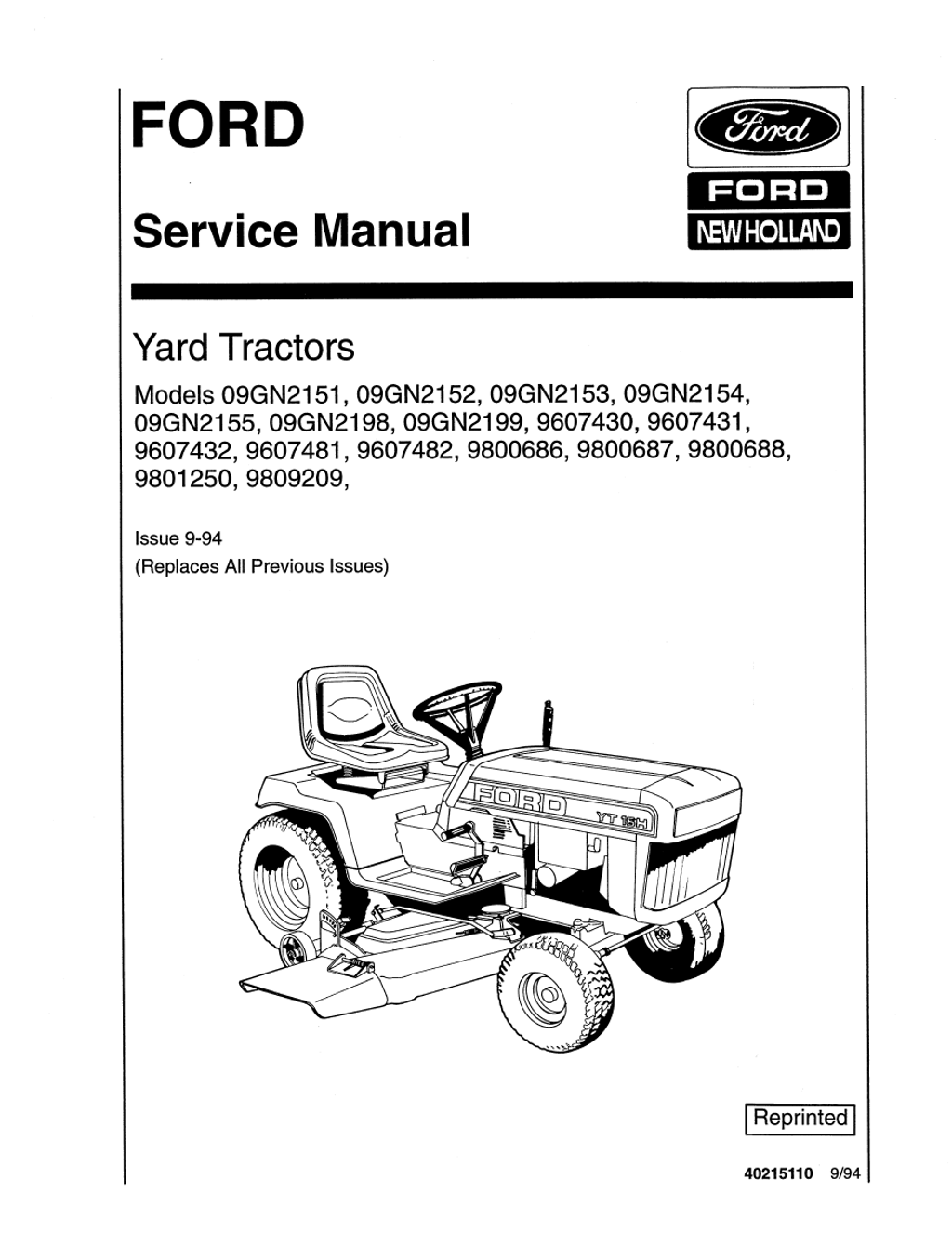

Ford New Holland YT12.5, YT14, YT16, YT16H, YT18H Yard Tractors Service Manual 40215110 English

$ 16.99 USD
View More

Brands: Ford / New Holland / Ford New Holland / New Holland Agriculture

Equipment Type: Yard Tractor

Manuals Type: Service Manual

Machine Model & Serial Number: YT12.5, YT14, YT16, YT16H, YT18H (Models 09GN2151, 09GN2152, 09GN2153, 09GN2154, 09GN2155, 09GN2198, 09GN2199, 9607430, 9607431, 9607432, 9607481, 9607482, 9800686, 9800687, 9800688, 9801250, 9809209)

Region: N/R

Book Code: 40215110

Issued: Issue 9-94 (Final Consolidated Edition)

Language: English

Pages: 131

File Format: Portable Document Format (PDF)

Remark: The definitive factory service manual for Ford New Holland Yard Tractors. Nuclear Level Value: Provides exhaustive internal repair procedures for both Peerless gear-drive and Eaton hydro-drive transaxles. Includes complete overhaul instructions for the Eaton Series 850 and 851 hydrostatic units, along with surgical troubleshooting for safety interlock systems and electric PTO clutch assemblies. Essential for professional-grade maintenance of high-specification residential yard equipment.

Table of contents

  • GENERAL INFORMATION
    • Model and Engine Cross-Reference Chart
    • Wiring Diagrams (Models 09GN2151 thru 9809209)
  • 16 H.P. YARD TRACTOR (GEAR DRIVE)
    • Engine Removal and Replacement
    • Electric PTO Clutch Adjustment and Removal
    • Peerless Transaxle Removal and Brake Service
    • Interlock Switch System Testing
  • 16 H.P. YARD TRACTOR (HYDRO DRIVE)
    • Eaton Hydrostatic Transmission Removal
    • Traction Drive Brake Cable Adjustment
    • Hydro Drive Lever Neutral Setting
  • EATON SERIES 850 AND 851 HYDROSTATIC TRANSAXLE REPAIR
    • Specialized Overhaul Tools
    • Complete Disassembly and Planetary Gear Inspection
    • Pump and Motor Rotor-Ball Select Fit Procedures
    • Charge Pump Gerotor Reconditioning
    • Transaxle Reassembly and Housing Seals
    • Fault-Logic Troubleshooting Guide

Professional Surgical Insight
When rebuilding the Eaton 850/851 transaxle, ball pistons are select-fit to their bores and must never be interchanged to maintain the 0.0002 inch clearance required for pressure containment. For electric PTO clutches, setting the air gap at exactly 0.012 inches is mandatory to prevent armature drag or premature slippage. Ensure the interlock system switches (seat, PTO, clutch) are tested for continuity during any "no-start" diagnosis to isolate faulty safety modules before replacing major electrical components.
