CASE Construction 430CK, 530CK Construction King Backhoe Loader Service Manual Section XII 9-70011I English

Brand: CASE Construction Equipment

Product Range: Construction King Backhoe Loader

Publication Type: Service Manual Section XII

Equipment Model: 430CK, 530CK Construction King

Serial Number: -

Publication Number: 9-70011I

Issued: Printed in U.S.A. (Reprinted)

Language: English

Pages: 422

File Format: PDF Document

Additional Information: This manual encompasses engine maintenance and repair.

Table of Contents

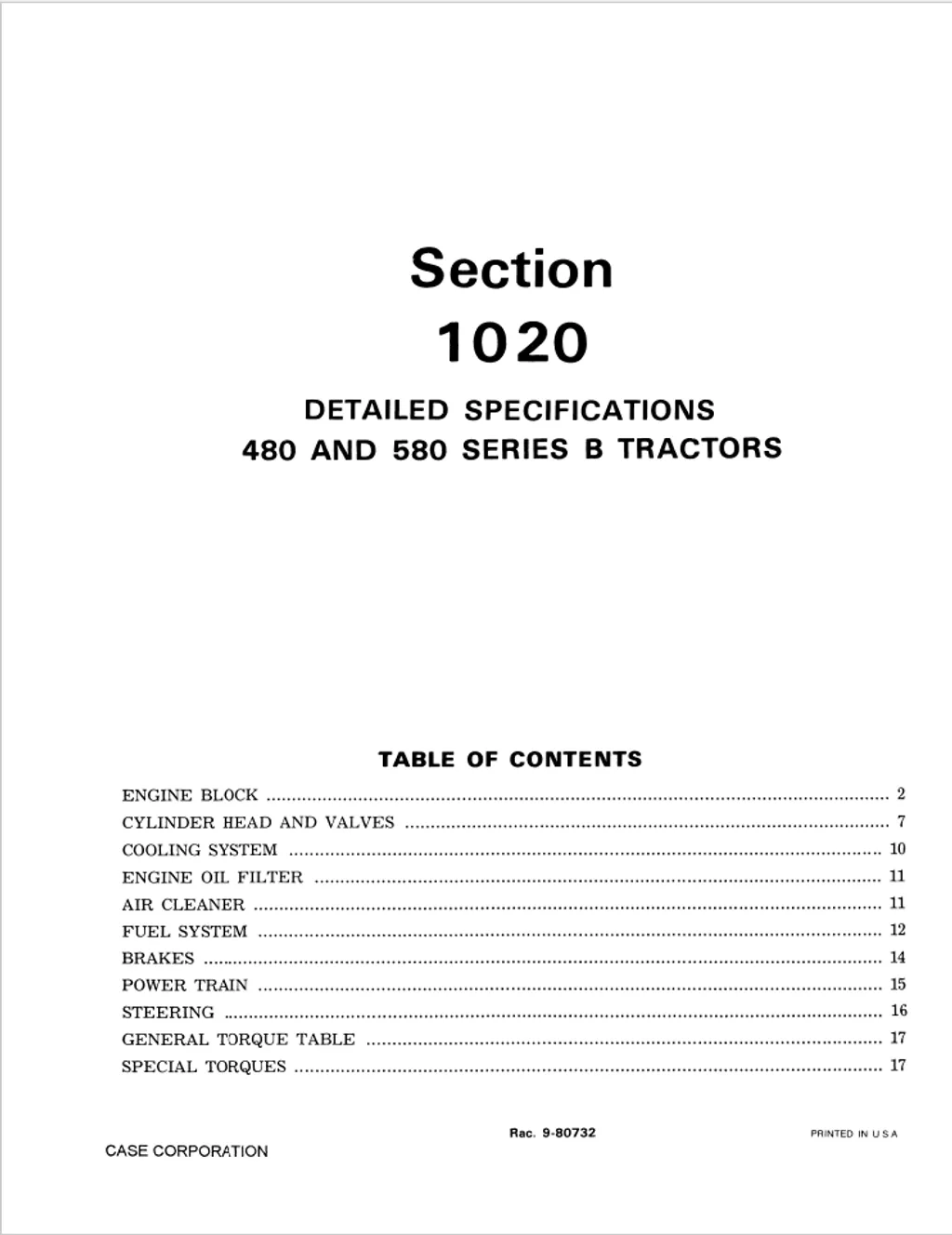

Section 1020 - Detailed Specifications 480 and 580 Series B Tractors

Section F - Electrical System

Section 2013 - Cylinder Head and Valves 148, 159, 188 and 201 Spark Ignition Engines

Section 2014 - Cylinder Head and Valves 188 Diesel Engines

Section 2023 - Engines Block Assemblies 201G, 188G, 159G, 148G Spark Ignition Engines

Section 2024 - Engines Block Assembly 188D Diesel Engine

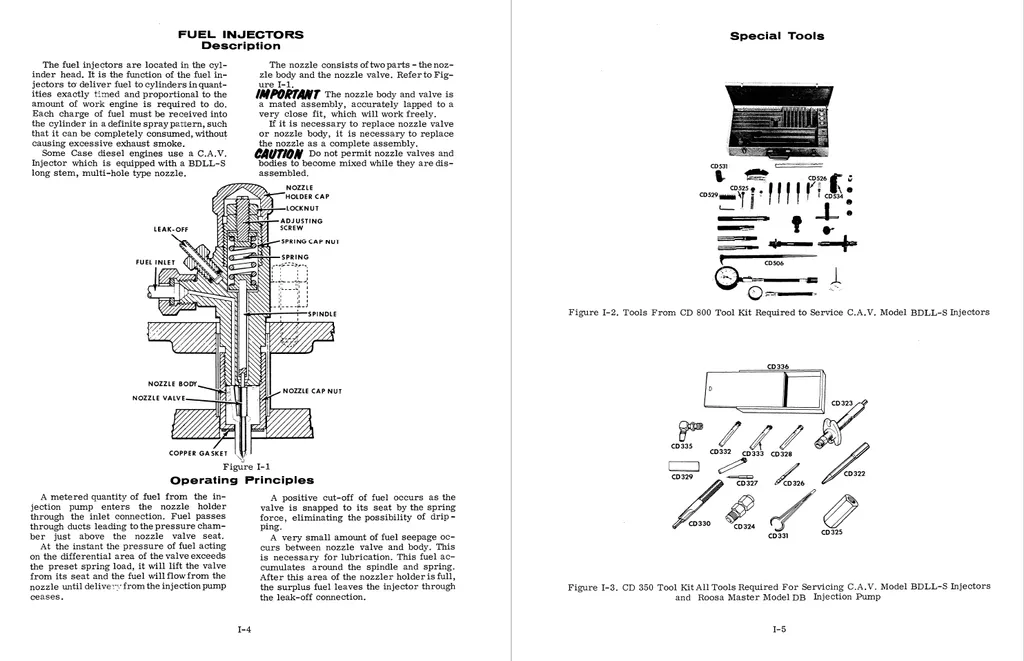

Section I - Servicing The Cav Fuel Injectors

Section 3022 - Roosa Master Model DB Fuel Injection Pumps 188 Series Diesel Engines

Section 3033 - Model 267 Series Zenith Carburetor for the 188G and 159G Spark Ignition Engines

Section 4019 - Break-Away Couplings and Portable Hydraulic Cylinders

Section D - Servicing The Remote Hydraulic Valves

Section O - Servicing The Hydrostatic Steering System, Engine Power Pump, Control Valve, Manual Pump, Cylinders

Section R - Servicing The Draft-O-Matic Hydraulic System, Valve, Rockshaft Assembly

Section 3SO - Servicing The Constant Running Power Take-Off

Section 65 - Four Speed Transmission and Final Drive

Section 66 - Mechanical Shuttle

Section 67 - Dual Range Assembly

Section 68 - 11 Inch Traction Clutch

Section 74 - Differential Brakes, Differential Lock and Parking Brake

Section X - Servicing The Case-O-Matic 11-Inch Torque Converter/ Control Valve/ Pressure Regulator and Pump
