Isuzu Worldwide Industrial Engines and Marine Engines Snap-on Electronic Parts Catalog

$ 75.00 USD

This catalog provides comprehensive details about spare parts and accessories tailored for Isuzu industrial and marine engines. Users can input a VIN, part number, or keyword to efficiently locate desired information. To refine results for a specific Isuzu engine, simply enter the complete VIN, the last 8 digits of the chassis number, or the serial number. Click the "Find VIN" button to dynamically display parts pertinent to the provided VIN.

Effortlessly find specific parts by entering keywords and clicking a dedicated button. Alternatively, streamline searches by selecting relevant groups and corresponding illustrations. Experience efficient and accurate sourcing of Isuzu industrial and marine engine parts through this optimized catalog interface.

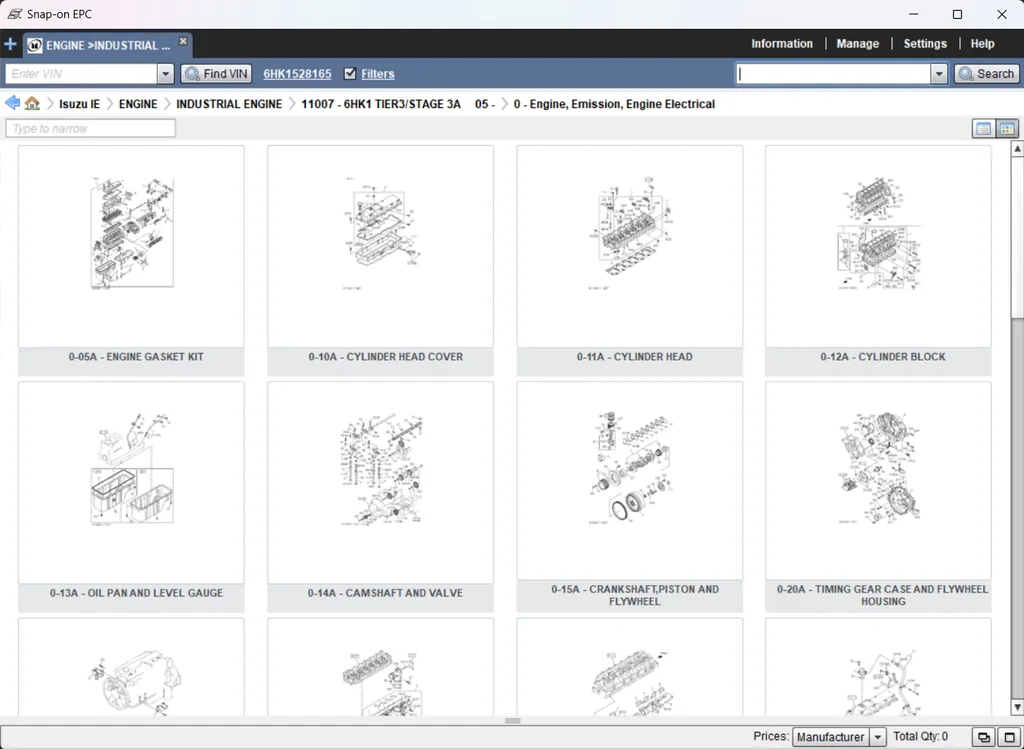

Parts Index and Illustrations

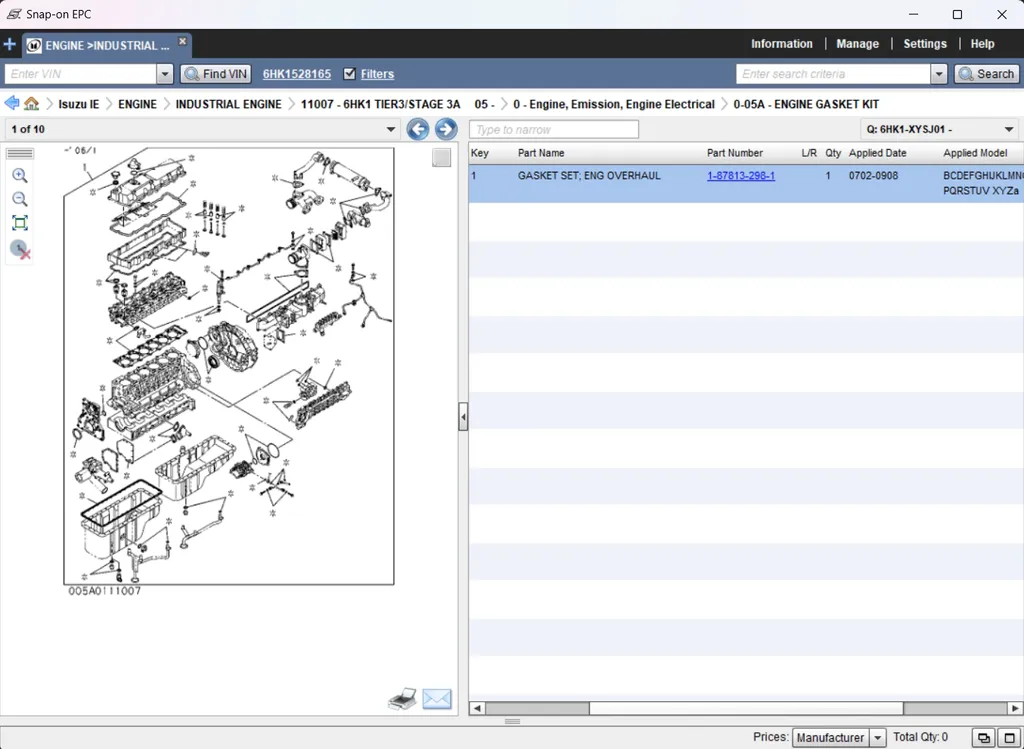

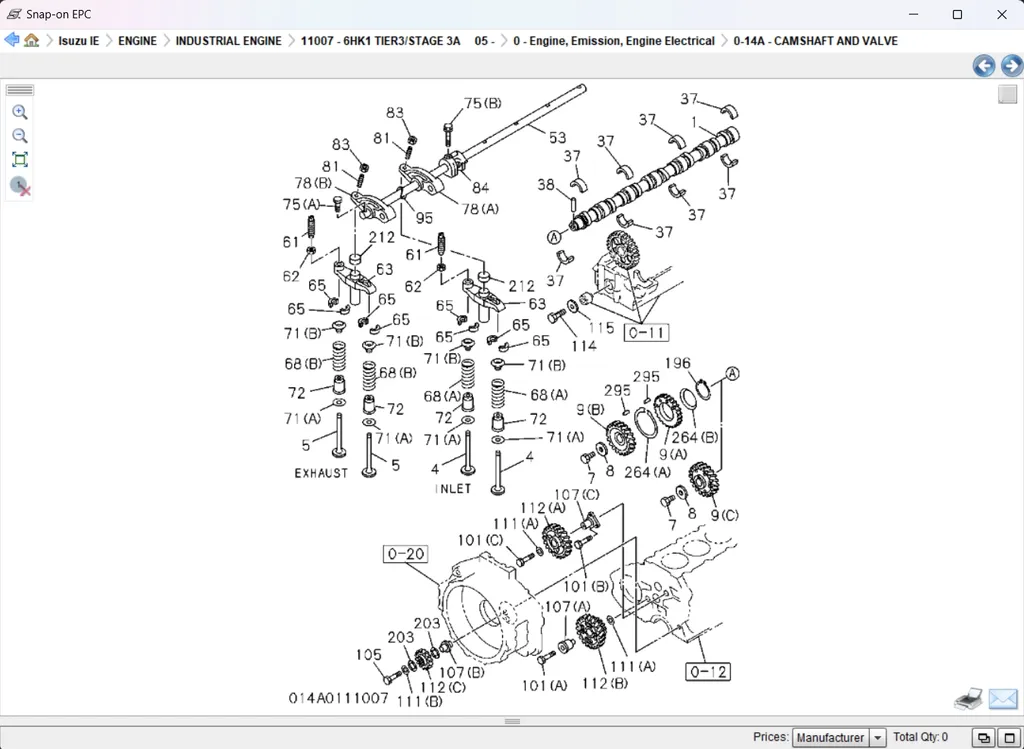

Each part listed in the parts index is accompanied by a numerical callout. Each callout corresponds to a matching callout in the illustration. From the parts index, you can add parts to your picklist, read notes, or view supersession history and other information about a part.

The Tool Bar
On the toolbar, you can enter a VIN or search for a particular part number or keyword. You can enter a full VIN, the chassis number (last 8 digits), or a serial number.
Enter a VIN and click the Find VIN button to set the catalog and filter parts so that only parts related to that VIN are displayed. Enter a part number or keyword and click the Search button to display only parts that match the criteria you entered.
Once you have entered a VIN or used the navigation menus to select a vehicle or piece of equipment, you can use the search features to locate the part you need. Searching for a part can be as easy as entering a keyword and clicking a button or selecting a group and illustration.

The Picklist
The picklist allows you to compile and manage lists of parts.

Searching for Parts
You can search for a part by keyword or part number. The search feature becomes active once you have selected a product from the Product Index. Locate the part you need from the list and click on it to go directly to the parts index and illustration containing the part.

Using VINs

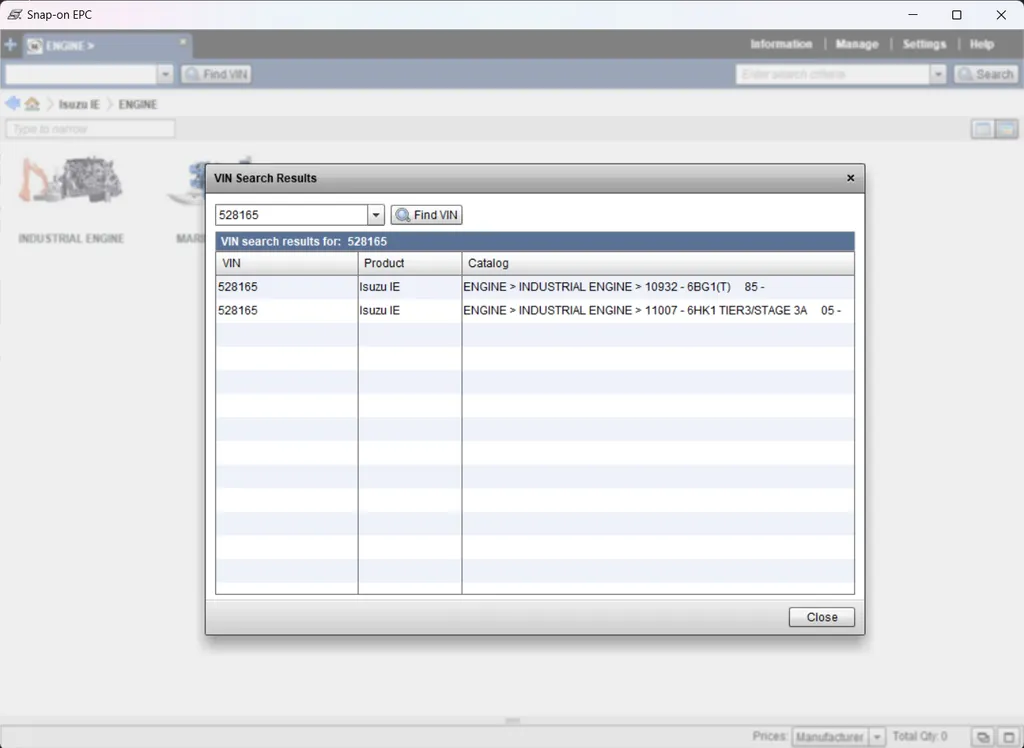

One of the fastest ways to find the right parts is to enter a VIN or unit ID. You can enter a full VIN, a chassis number (last 8 digits of a VIN), a serial number, or a complete unit ID.
Entering one of these numbers reduces the parts displayed to those associated only with the vehicle or unit on which you are working. The EPC maintains a history of the last 15 numbers that were entered into the VIN field.

Supersession Information
When supersession is available for a part, the supersession indicator appears next to the part in the parts index. Click the supersession indicator to open the Parts Details window, with the supersession information displayed. Supersession information is displayed in a tree structure with the newest part displayed at the top of the list.

Additional Information & System Requirements

Type of Catalog: Spare Parts Catalog

Size: 2.03GB

Region: All Regions

Version: 07.2015

Language: Multilanguage

Operating System: Windows XP, Windows Vista, Windows 7, Windows 8 & 8.1, Windows 10, Windows 11 (32 Bit-x86 & 64 Bit-x64)

Isuzu Worldwide Snap-on EPC Models List:

ENGINE

INDUSTRIAL ENGINE

50326 - C240 76-80

50321 - C240 81-92

50873 - C240(EXP) 93-

50799 - C240 93-

51053 - C330 77-80

51046 - 2CA1 05-

50345 - 2KC1 93-97

10398 - DA640 75-80

10397 - E120 71-74

10401 - E120 75-92

10402 - E120 93-94

51055 - 2AA1/2AB1 77-91

51056 - 2KA1/2KB1/2KC1 83-93

50845 - 2YA1 91-

50347 - 3AA1/3AB1 72-75

50348 - 3AA1/3AB1/3AD1 76-91

50351 - 3AB1 92-94

50350 - 3AE1/3AF1 79-89

50974 - 3CA1/3CB1/3CD1/3CE1 03-

51618 - 3CE1 TIER4 15-

51548 - 3CH1 TIER4 14-

50346 - 3KA1/3KB1/3KC1 83-84

50330 - 3KA1/3KB1/3KC1 85-92

50331 - 3KA1/3KB1/3KC1 93-97

50334 - 3KC2 89-96

50343 - 3KR1 84-93

50329 - 3KR1 94-97

50335 - 3KR2 89-95

50792 - 3LA1/3LB1 91-

50793 - 3LD1/3LD2 92-

50844 - 3YA1/3YB1/3YC1/3YE1 95-

51052 - 4BA1 77-91

50336 - 4BC2 81-93

50337 - 4BC2 93-94

50320 - 4BD1 80-93

50872 - 4BD1(EXP) 93-

50794 - 4BD1 94-

50874 - 4BE1 93-

50791 - 4BG1 89-

50875 - 4BG1-BCVP 93 -

51045 - 4CG1/4CG2 05-

51521 - 4CG1 TIRE3 14-

51054 - 4FA1 80-91

50338 - 4FB1/4FC1 81-92

50339 - 4FB1/4FC1 93-95

50332 - 4FE1 85-95

51043 - 4HK1 TIER3/STAGE 3A 05-

51505 - 4HK1 TIER4/STAGE 4 14-

51545 - 4HK1 GB3 14-

51274 - 4HK1 I-TIER4/STAGE3B 10-

50319 - 4JA1/4JB1/4JC1 84-94

50795 - 4JA1/4JC1 95-

50796 - 4JB1 95-

50349 - 4JD1/4JE1/4JF1 87-94

50797 - 4JG1/4JG2 93-

51547 - 4JJ1 GB3 14-

51417 - 4JG1 CHINA 12-

51106 - 4JJ1 TIER3/STAGE 3A 06-

51585 - 4JJ1 TIER4/STAGE 4 15-

51400 - 4JJ1 I-TIER4/STAGE3B 11-

50798 - 4LB1/4LC1/4LE1/4LE2 93-

51165 - 4LE1/4LE2 I-TIER4 07-

51427 - 4LE2 TIER4/STAGE3B 12-

10392 - 6BB1 77-92

10393 - 6BB1 93-

10382 - 6BD1 77-92

10383 - 6BD1T 77-92

10822 - 6BD1(EXP) 93-

10767 - 6BD1 93-

10931 - 6BG1(N) 85-

10932 - 6BG1(T) 85-

10855 - 6HK1 00-

11007 - 6HK1 TIER3/STAGE 3A 05-

11571 - 6HK1 TIER4/STAGE 4 14-

11623 - 6HK1 GB3 14-

11299 - 6HK1 I-TIER4/STAGE3B 10-

10400 - 6QA1 83-93

10769 - 6RB1 83-

10395 - 6SA1 85-96

10766 - 6SD1 88-

11625 - 6UZ1 GB3 15-

11034 - 6UZ1 TIER3/STAGE 3A 06-

11596 - 6UZ1 TIER4/STAGE4 14-

11301 - 6UZ1 I-TIER4/STAGE3B 10-

10856 - 6WG1 00-

11626 - 6WG1 GB3 15-

11008 - 6WG1 TIER3/STAGE 3A 05-

11595 - 6WG1 TIER4/STAGE4 14-

11300 - 6WG1 I-TIER4/STAGE3B 10-

10394 - 8PA1 80-97

10770 - 10PB1 79-

10399 - 12PB1 80-94

MARINE ENGINE

50327 - UMC240 71-92

50854 - UMC240 93-

51057 - UM2AB1 71-91

51058 - UM2KC1 88-94

51059 - UM3AB1 71-91

50850 - UM3KC1 85-

50846 - UM3YA1/UM3YC1/UM3YD1 94-

51060 - UM4BA1 78-89

51061 - UM4BB1 71-90

51062 - UM4BC2 82-91

50323 - UM4BD1 71-92

50851 - UM4BD1 93-

50852 - UM4BG1 89-

50853 - UM4JA1/UM4JB1 85-

50855 - UM4JG1 97-

50847 - UM4LC1 95-

10388 - UM6BB1/UM6BD1 73-92

10799 - UM6BD1 92-

10386 - UM6BG1 85-92

10800 - UM6BG1 93-

10797 - UM6HE1 95-

11089 - UM6HK1 07-

11119 - UM6HK1(COMMON RAIL) 07-

11016 - UM6QA1 82-90

10387 - UM6RB1 86-93

10801 - UM6RB1 94-

11017 - UM6SA1 83-92

10802 - UM6SD1 88-

11014 - UM6WF1 05-

10798 - UM6WG1 99-

11191 - UM6WG1(COMMON RAIL) 08-

11018 - UM8PB1 82-90

11019 - UM12PB1 93-93

10803 - UM12PD1 91-
