CLAAS Parts Doc Agricultural Equipment Electronic Spare Parts Catalogue
CLAAS Parts Doc - Guiding you to the part you need: Parts Doc is the CLAAS electronic spare parts catalog for your CLAAS harvesting machines and tractors. Users are able to generate machine serial number specific Parts Doc catalogs, which provide all of the applicable part numbers and drawings for their machines.

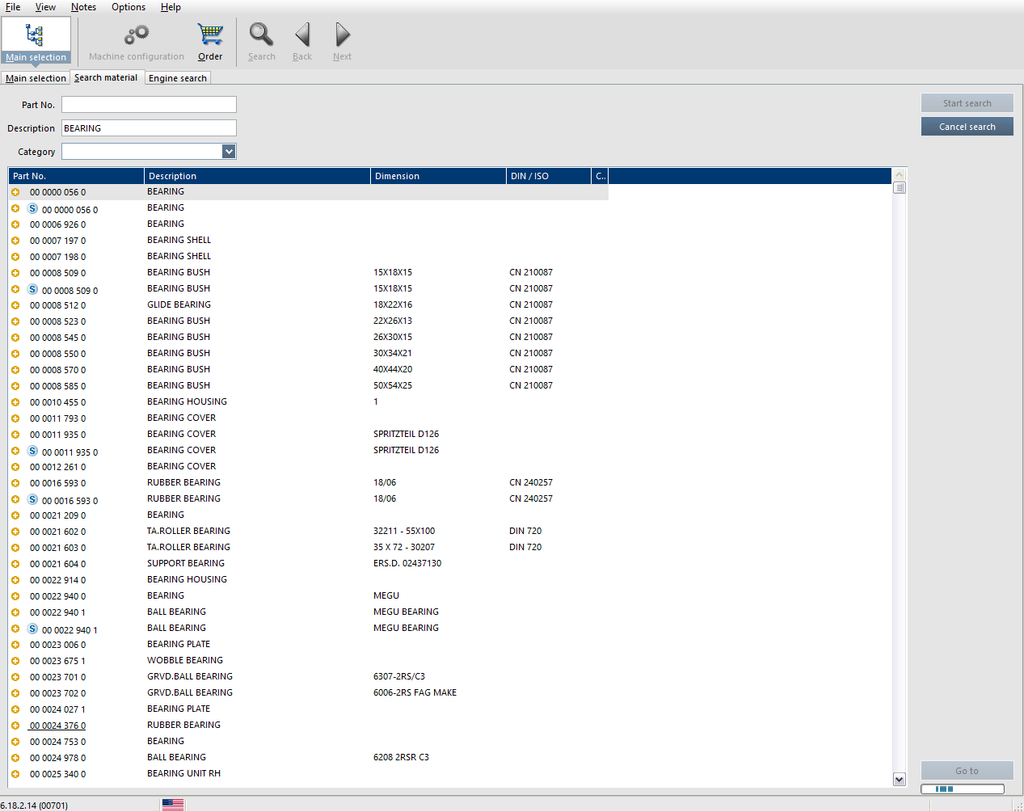

The entered search term is automatically transferred to the 'Search' window and the search result is listed.

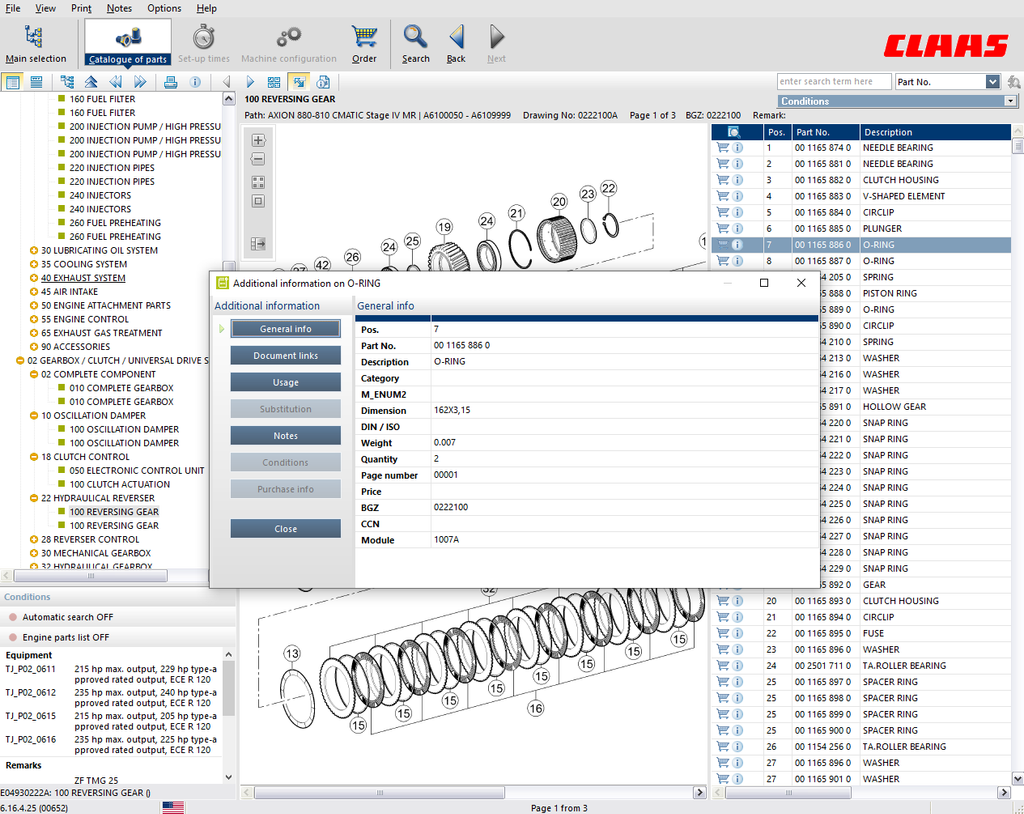

The additional information contains important notes and explanations on articles, drawings and documentation.
The General info can contain remarks and comments on the selected article and display information which are generally not part of the parts list. General info of the selected article are integrated either in the 'Additional information' dialogue or under the assembly tree.
Document links in the parts catalogue are indicated by the Book icon. They enable the display of the document(s) (e.g. for assembly, maintenance, service) directly at the article.
The Usage provides information on the installation location(s) of the selected article, i.e. which assembly (assemblies) contains(contain) the selected article.
Print current drawing and/or parts list
Clicking on the Printer icon will open the 'Print' dialogue and you can print the drawing and parts list. The drawing and parts list are printed on separate pages.
Notes can be created on all articles in parts lists, on drawings and on documentation.
Product Family / Product Line:
CHUNYU GRAIN HARVEST
MAIZE PICKER HEAD
PICK UP, N.A.
CORN HEADER, N.A.
Type of Catalog: Spare Parts Catalog
Region: All Regions
Version: Update 701/11.2021
Operating System: Windows XP, Windows Vista, Windows 7, Windows 8 & 8.1, Windows 10 (32 Bit-x86 & 64 Bit-x64)
