ISUZU / CASE Construction 4BG1T, 6BG1T Diesel Engine Service Manual 7-28460 English

Official Manual Overview

Take uncompromising control over your heavy-duty powertrain with this factory-issued Service Manual, engineered specifically for the turbocharged ISUZU 4BG1T (4-cylinder) and 6BG1T (6-cylinder) Diesel Engines utilized across CASE equipment. Moving far beyond basic preventative maintenance, this literature provides dual-architecture rebuild protocols, allowing elite technicians to seamlessly transition between 4B and 6B block overhauls. It delivers surgical machining specifications, dictating a microscopic 0.001-0.019 mm (0.0004-0.0007 in) fitting clearance for cylinder liners, and exact calibration data for the Bosch A and AD-type in-line injection pumps—mandating an absolute 185 kg/cm² (2630 psi) injection starting pressure. Reassembly integrity is guaranteed with dedicated torque matrices, distinguishing critical fastening values such as the massive 20.1-24.5 kgf.m (145-177 lb.ft) flywheel torque requirement for the 6BG1T versus the 14.5-17.5 kgf.m (105-127 lb.ft) for the 4BG1T. From deep-level crankshaft run-out metrology (verifying 0.05 mm standard tolerances) to exhaustive troubleshooting charts for resolving continuous knocking or unstable low idling, this is the definitive blueprint for dealership-level diesel reconstruction.

• Brands: ISUZU / CASE Construction
• Equipment Type: Diesel Engine
• Manuals Type: Service Manual
• Machine Model: 4BG1T, 6BG1T
• Serial Number: N/R
• Region: N/R
• Book Code: 7-28460
• Issued: Printed in France, Septembre 2000
• Language: English
• Pages: 168
• File Format: PDF (Searchable)

Core Selling Points

• Advanced Fluid Dynamics & Pump Clearances: Move beyond basic parts replacement with factory-grade fluid system metrology. The manual provides exact micrometer tolerances for rebuilding the lubrication network, mandating a strict 0.12 mm (0.0047 in) clearance between the oil pump body and driven gear, and a highly precise 0.3 to 0.8 mm (0.0118 to 0.0315 in) tolerance between the cooling impeller and pump body.
• Absolute Structural Metrology Standards: Eliminate guesswork in heavy block reconstruction. Technicians are provided with uncompromising machining thresholds, including the absolute 0.2 mm (0.008 in) cylinder head warpage limit, the 89.65 mm minimum cylinder head height allowance, and precise cylinder liner bore grading matrices to match pistons perfectly.
• Dual-Architecture Torque Parameters: Secure engine integrity with specific fastening architectures tailored for both the 4-cylinder and 6-cylinder variants. It dictates precise values such as the massive 55 to 65 kgf.m (378 to 470 lb.ft) torque requirement for the 6BG1T crankshaft pulley nut (requiring a 54 mm wrench), along with specific angular tightening methodologies.

Features & Highlights

• Exhaustive Fuel System Calibration: Empowers mechanics to service and tune Bosch A-type and AD-type in-line plunger pumps to OEM specifications. It outlines mandatory testing protocols to verify the injection starting pressure at exactly 185 kg/cm2 (2630 psi) and details visual diagnostic criteria for identifying restricted orifice spray patterns or dripping needle valves.
• Heavy-Duty Block Testing Protocols: Features specialized testing procedures to guarantee structural health before reassembly. This includes conducting a mandatory water jacket hydraulic pressure test at 5 kg/cm2 (71.1 psi) for three minutes to expose hidden internal coolant leaks or blown seals.
• Complete Valve Train Reconstruction: Delivers surgical instructions for upper-end overhauls. The literature mandates precise thermostat valve lift verification (10.0 mm at 95°C) and dictates strict valve spring inclination limits (maximum 2.7 mm) to prevent catastrophic valve dropping during high-RPM operations.

Problem Solver

• Eradicates Diagnostic Blind Spots: The comprehensive troubleshooting matrices map out specific diagnostic paths for complex issues like "engine knocking" or "dark exhaust smoke." It quickly isolates mechanical failures from fuel delivery faults, allowing technicians to pinpoint a worn VE pump cam disc, a stuck piston ring, or delayed fuel injection timing.
• Cures Fatal Lubrication Failures: Resolves elusive oil pressure drops that threaten the rotating assembly. The guide extensively charts the internal oil gallery logic, detailing exact relief valve opening pressures (8 kg/cm2) and bypass valve thresholds (up to 4.5 kg/cm2) to ensure continuous protection for crankshaft and camshaft bearings.
• Prevents Component Seizure: Improperly assembled auxiliary drives can destroy a newly rebuilt engine. This manual safeguards your labor by dictating strict forced-fit parameters, such as the 0.14 mm limit for the water pump pulley center, and providing precise 12-degree B.T.D.C. injection timing alignment instructions for both the 4B and 6B configurations.

Important Pre-Purchase Advisories

• Dedicated Powertrain Focus: Please note that this is a specialized diesel engine manual strictly covering the Isuzu 4BG1T and 6BG1T blocks. It does not contain full machine chassis wiring diagrams, CAN-Bus electronic controls, or hydraulic schematics for the host equipment.
• Special Tools Section Note: While proprietary service tools (such as specific crankshaft gear removers or dial indicators) are heavily referenced throughout the repair procedures, the manufacturer officially noted that the dedicated "Special Tool List" (Section 13) was to be distributed at a later date and is essentially left blank.

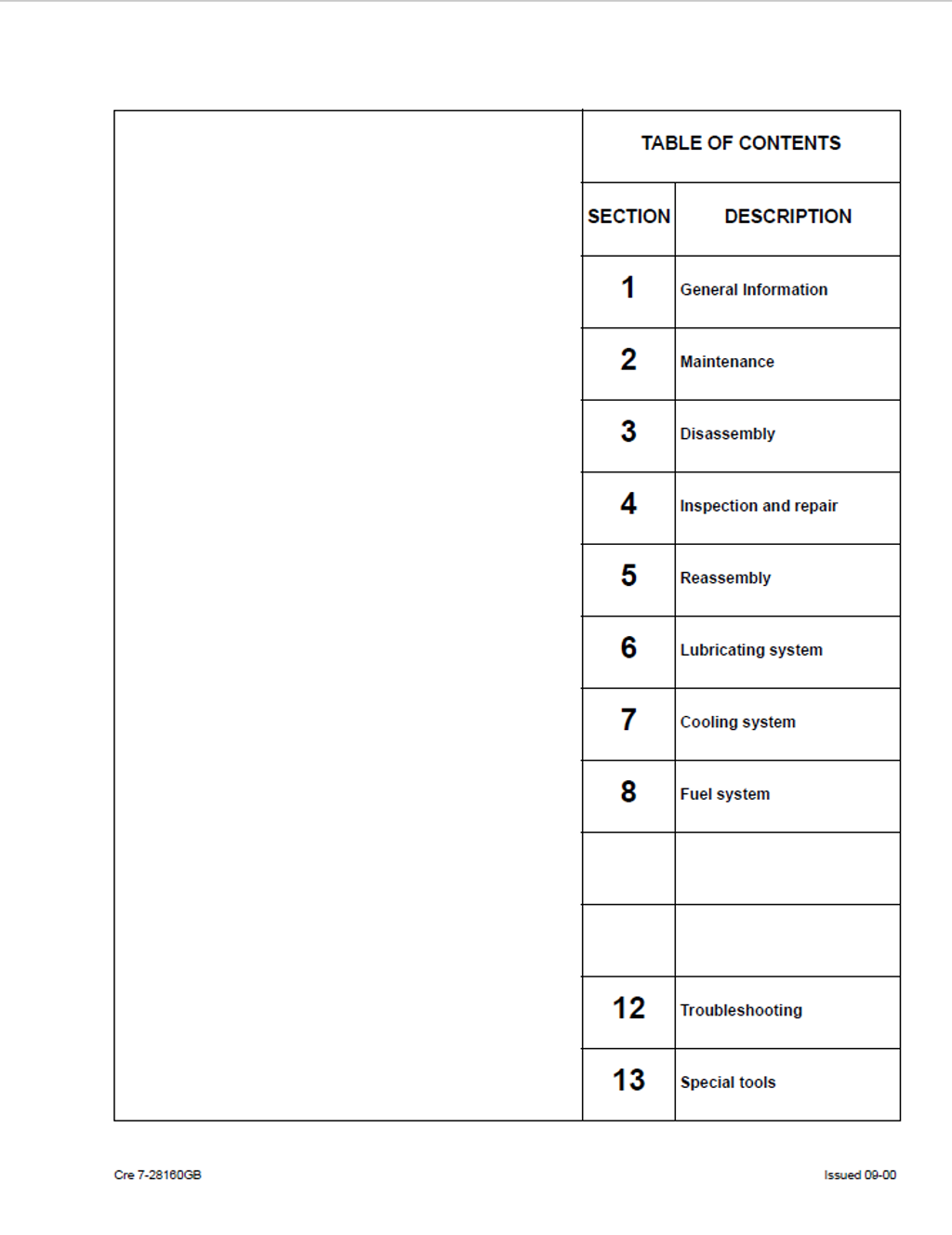

Table of Contents

• General Information
  • General repair instructions
  • Notes on the format of this manual

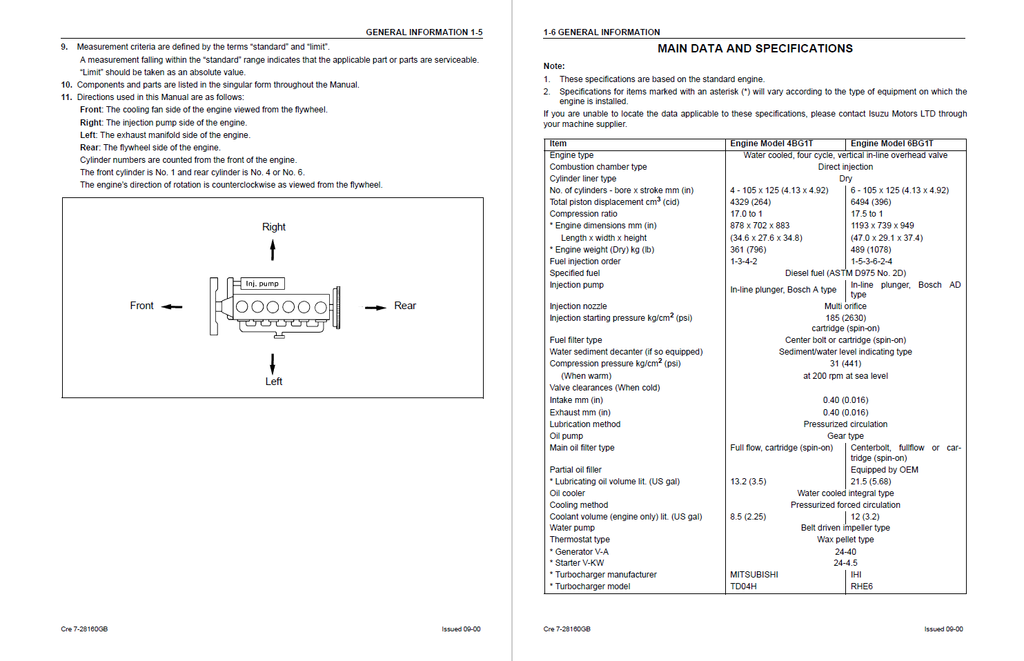

  • Main data and specifications
  • Tightening torque specifications
  • Angular nut and bolt tightening method
  • Major component mounting nuts and bolts
  • Identification
• Maintenance
  • Fuel system
  • Cooling system

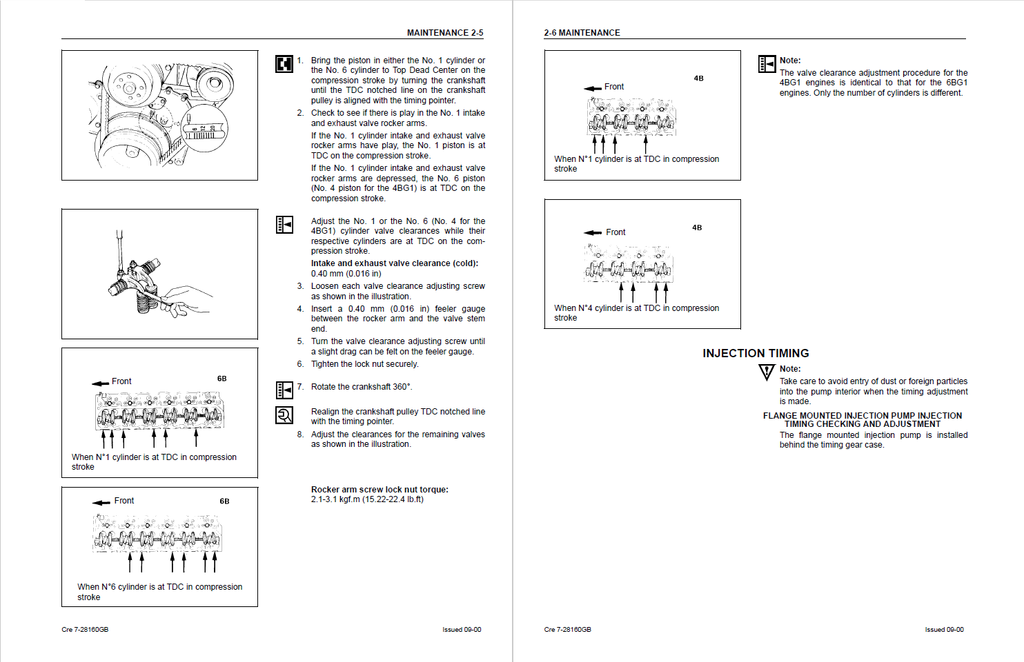

  • Valve clearance adjustment
  • Injection timing
  • Compression pressure measurement
  • Turbocharger inspection
  • Engine repair kit
• Engine Assembly I (Disassembly)

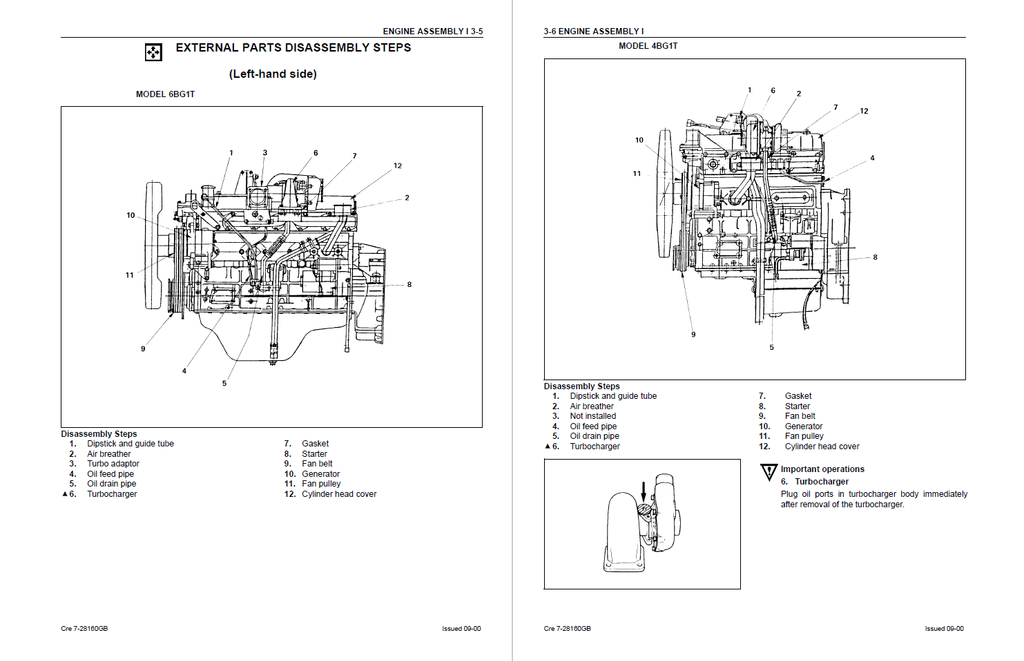

  • External parts disassembly steps
  • Major components
  • Rocker arm and rocker arm shaft disassembly steps
  • Cylinder head disassembly steps
  • Piston and connecting rod disassembly steps
• Engine Assembly II (Inspection and repair)
  • Cylinder head
  • Valve guide
  • Valve spring
  • Tappet
  • Push rod
  • Rocker arm shaft and rocker arm
  • Idler gear and idler gear shaft
  • Camshaft

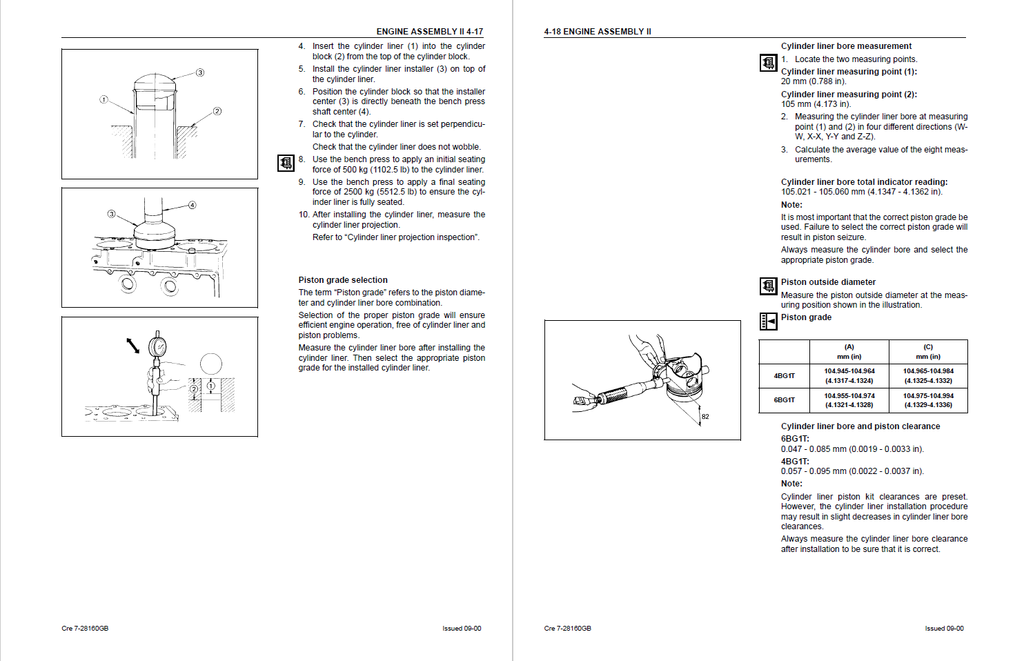

  • Cylinder body and liner
  • Piston and piston ring
  • Piston pin
  • Connecting rod
  • Crankshaft
  • Flywheel and flywheel housing
  • Timing gear case cover
• Engine Assembly III (Reassembly)
  • Piston and connecting rod reassembly steps
  • Cylinder head reassembly steps

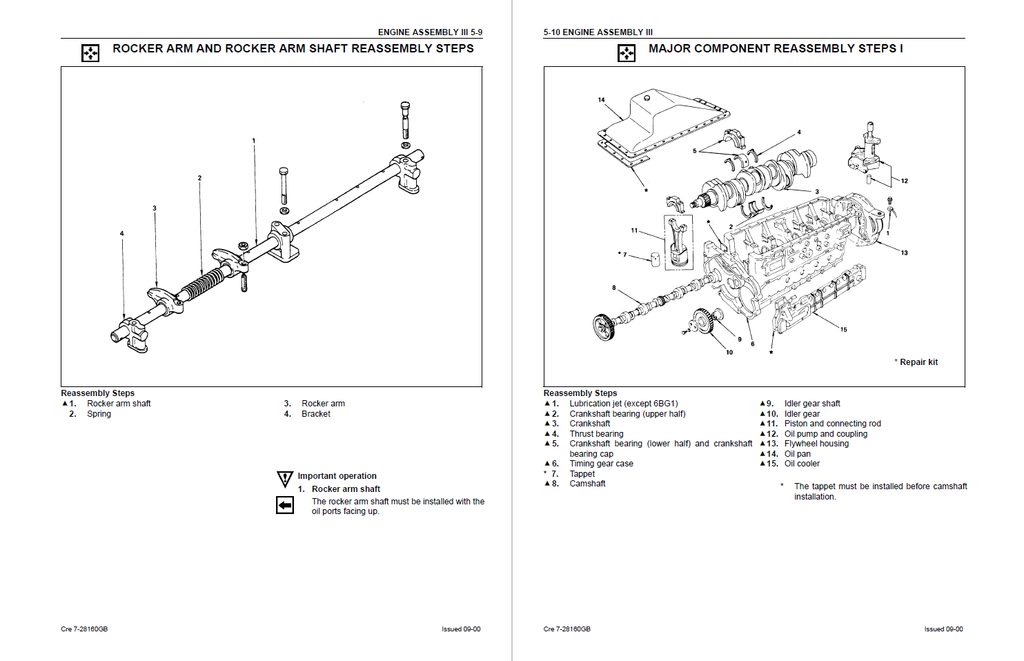

  • Rocker arm and rocker arm shaft reassembly steps
  • Major component reassembly steps I
  • Major component reassembly steps II
  • External part reassembly steps (Left-hand side)
  • External part reassembly steps (Right-hand side)

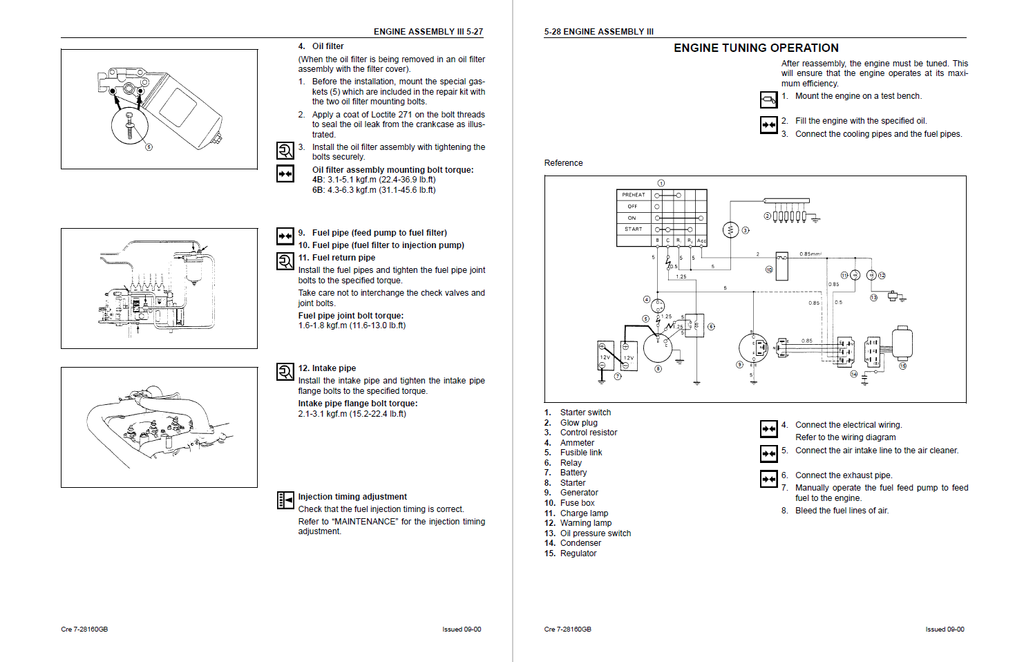

  • Engine tuning operation
• Lubricating System
  • General information
  • Oil pump
    • Disassembly
    • Inspection and repair
    • Reassembly
  • Oil cooler
    • Disassembly
    • Inspection and repair
    • Reassembly
• Cooling System
  • Water pump
    • Reassembly
  • Thermostat
    • Inspection and repair
• Fuel System
  • General description

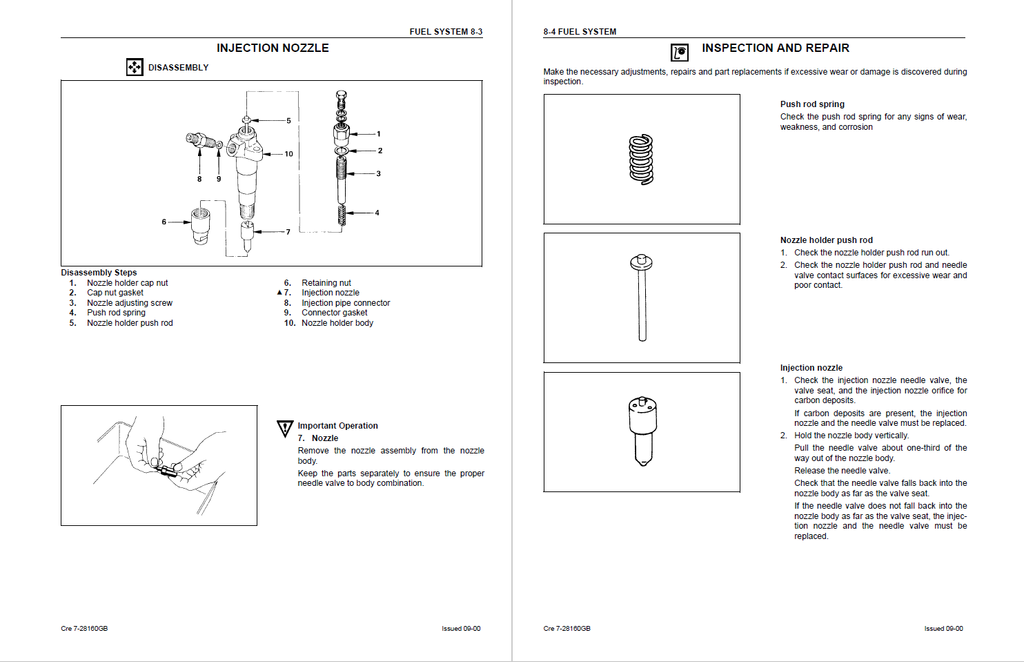

  • Injection nozzle
    • Disassembly
    • Inspection and repair
    • Reassembly
• Troubleshooting
  • Starter motor inoperative
  • Starter motor operates but engine does not turn over
  • Engine turns over but does not start though fuel is being delivered to the injection pump
  • Engine turns over but does not start
  • Fuel is not being delivered to the injection pump
  • Unstable low idling
  • Insufficient power
  • Excessive fuel consumption
  • Excessive oil consumption
  • Overheating
  • White exhaust smoke
  • Darkish exhaust smoke
  • Oil pressure does not rise

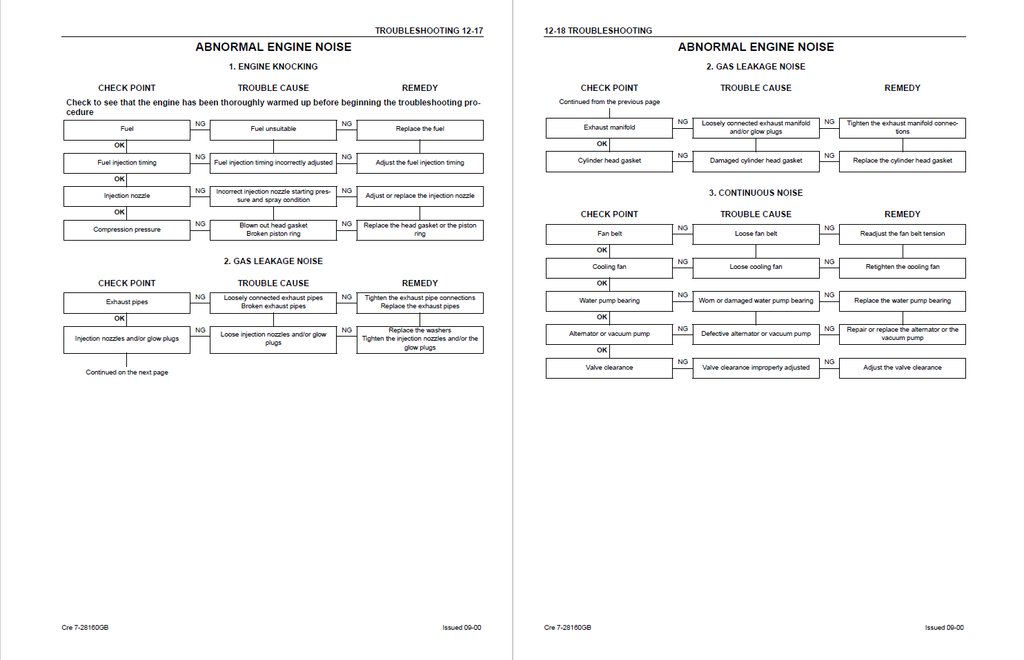

  • Abnormal engine noise
