7-28240, 7-28470_1

ISUZU / CASE Construction 4JB1 Diesel Engine Service Manual 7-28240, 7-28470 English

$ 14.99 USD
View More

Official Manual Overview

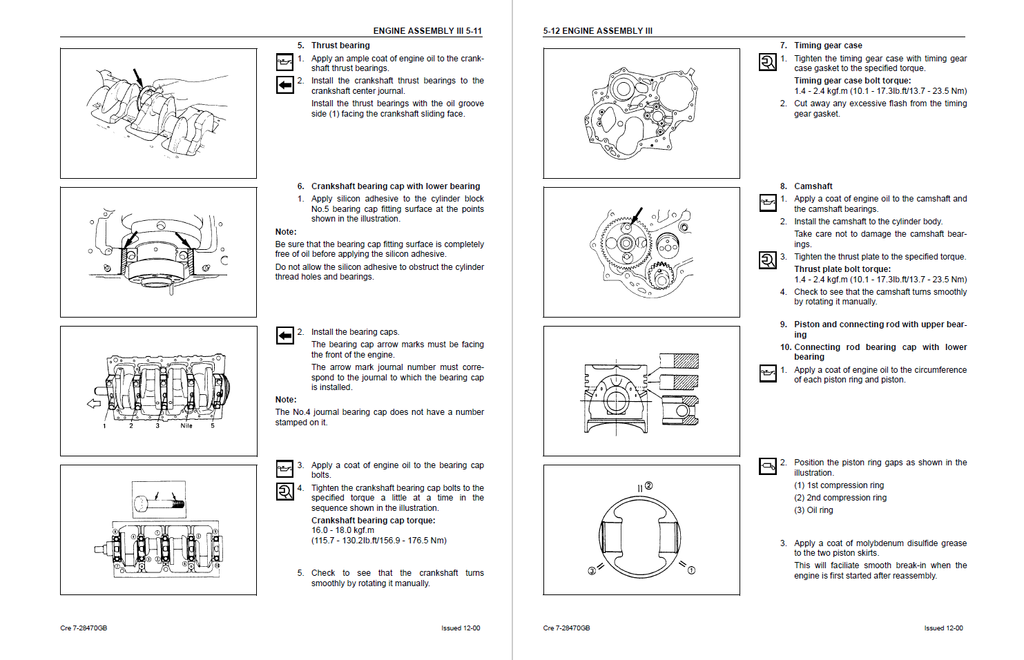

Equip your engine rebuild bay with this dedicated OEM Service Manual, explicitly compiled for the ISUZU 4JB1 Diesel Engine (as utilized in CASE equipment). Unlike general machine chassis manuals that bypass internal engine repairs, this volume dives straight into the heart of the powerplant. It delivers micro-tolerance machining specifications and complete block rebuild protocols, featuring surgical teardown procedures for the Bosch A-type in-line fuel injection pump and RSV mechanical governor. Technicians will find absolute mathematical certainty with exact micrometer wear limits for cylinder liners (93.021 - 93.060 mm standard bore) and strict torque architectures, such as the 16.0 - 18.0 kgf.m required for the crankshaft bearing caps. Furthermore, it details precise fuel system calibrations, including the 185 kg/cm² nozzle opening pressure, ensuring maximum combustion efficiency. This is the ultimate blueprint for resolving catastrophic engine failures, restoring lost compression, and executing dealership-level diesel overhauls.

  • Brands: ISUZU / CASE Construction
  • Equipment Type: Diesel Engine
  • Manuals Type: Service Manual
  • Machine Model: 4JB1
  • Serial Number: N/R
  • Region: N/R
  • Book Code: 7-28240, 7-28470
  • Issued: Printed in France, December 2000
  • Language: English
  • Pages: 148
  • File Format: PDF (Searchable)

Core Selling Points

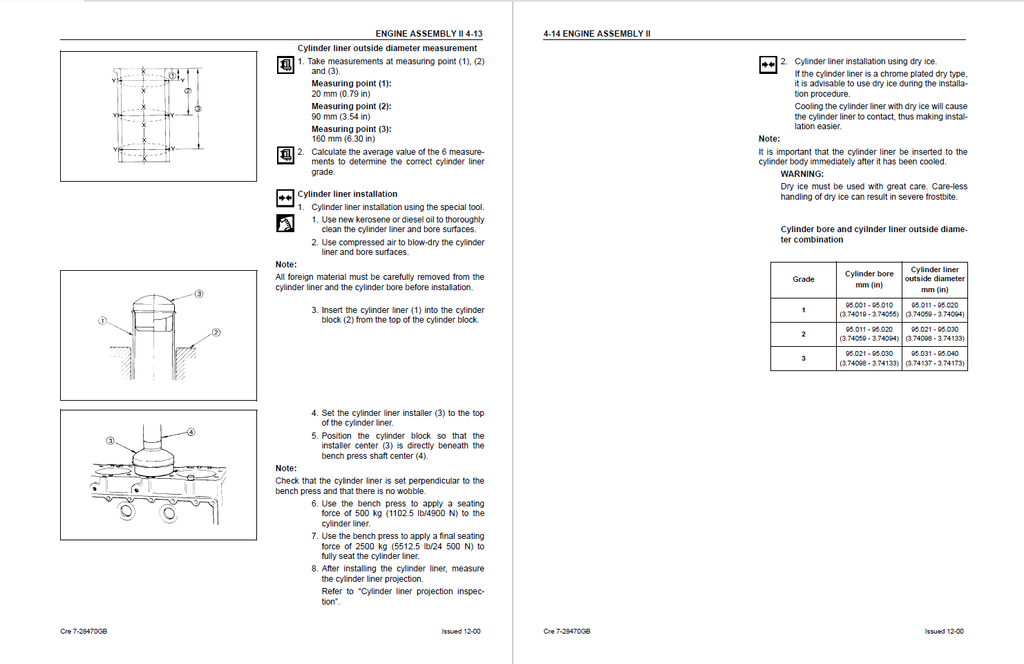

  • Master-Level Machining & Metrology: Execute complete block reconstruction with absolute mathematical certainty. The manual dictates strict micrometer parameters, requiring technicians to verify crankshaft journal wear limits down to exactly 69.910 mm (2.7524 in) and ensuring cylinder liner fitting interference is maintained between a microscopic 0.001 to 0.020 mm (0.0004 to 0.0078 in).
  • Bosch Fuel Injection Calibration: Move beyond simple filter changes and dive into precise fuel delivery tuning. The literature provides the exact specifications to test and adjust the Bosch A-type injection pump and nozzles, requiring an opening pressure calibration of precisely 185 kg/cm2 (2630 psi) and detailing the exact oxidized chrome lapping procedures to restore leaking needle valves.
  • Symptom-Based Diagnostic Matrices: Rapidly isolate mechanical failures from fuel delivery faults. The comprehensive troubleshooting section maps out specific diagnostic paths for issues like unstable low idling or continuous engine knocking, allowing mechanics to quickly identify hidden culprits such as a stuck relief valve, a worn cam disc (VE pump), or a blown cylinder head gasket.

Features & Highlights

  • Rigid Assembly Torque Architecture: Prevent catastrophic engine failure caused by improper fastening. The documentation provides a complete torque specification matrix for every critical component, mandating values like 166.7 to 205.9 Nm (123.0 to 151.9 lb.ft) for the crankshaft damper pulley and strict sequential tightening patterns for the cylinder head bolts.
  • Advanced Metallurgy Verification: Contains highly specialized testing procedures rarely found in standard literature. It instructs engine builders on how to verify the integrity of the crankshaft's Tufftriding (Nitrizing Treatment) surface using a 10% ammonium cuprous chloride solution to ensure the journals are safe for continued service.

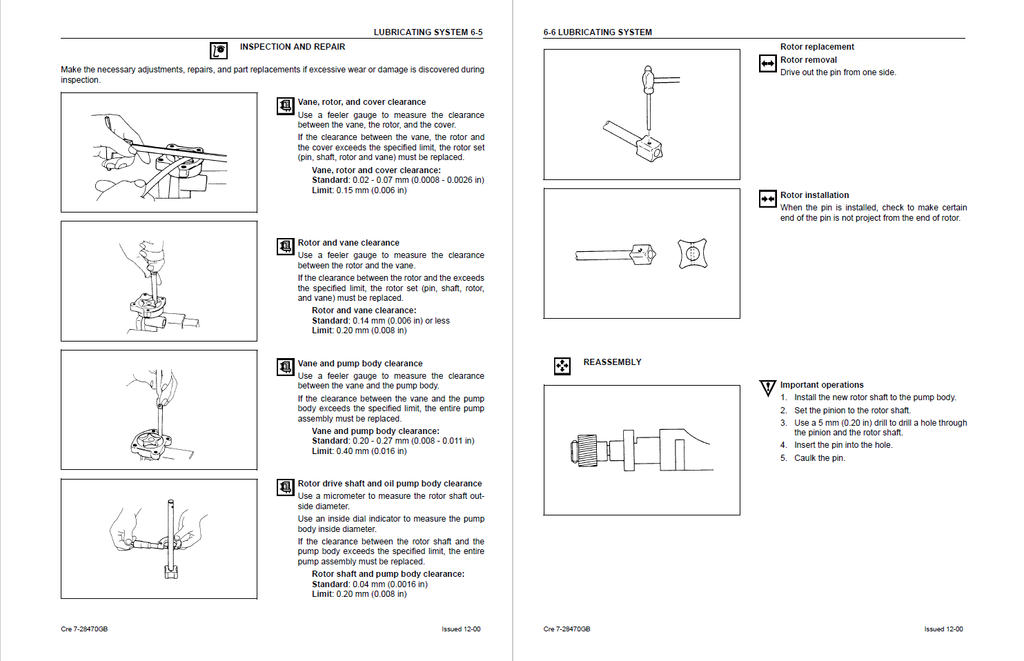

  • Comprehensive Fluid System Overhaul: Details the complete teardown and inspection of both the cooling and lubrication networks. Technicians are guided through rebuilding the trochoid oil pump (verifying standard rotor-to-body clearances of 0.04 mm) and inspecting the centrifugal water pump impeller, alongside thermostat valve lift verification (8.0 mm at 95°C).

Problem Solver

  • Eliminates Diagnostic Guesswork: Stops the costly cycle of replacing random components when an engine loses power or produces dark exhaust smoke. By utilizing the manual's exact compression testing baseline—specifically targeting 31.0 kg/cm2 (441 psi) at 200 rpm—technicians can definitively prove whether a performance drop is a top-end valve seating issue or worn cylinder liners.
  • Prevents Fatal Machining Errors: Saves machine shops from destroying expensive engine blocks. The manual explicitly warns that the inner dry-type cylinder liners are chrome-plated and absolutely cannot be rebored or honed, dictating mandatory replacement when scored.
  • Cures Hidden Oil Pressure Drops: Resolves elusive lubrication failures that threaten the entire rotating assembly. The guide outlines step-by-step checks for the built-in oil cooler, safety valves, and relief valves, ensuring the system maintains its critical 4.0 kg/cm2 (56.89 psi) delivery pressure.

Important Pre-Purchase Advisories

  • Exclusive Engine Focus: Please be aware that this publication is a dedicated powerplant manual explicitly for the Isuzu 4JB1 diesel engine block. It does not contain chassis wiring diagrams, hydraulic schematics, or undercarriage service instructions for the host machinery.
  • Special Tools Addendum: While proprietary service tools (such as specific valve spring compressors or connecting rod bushing installers) are heavily referenced throughout the repair procedures, the manufacturer officially marked the "Special Tool List" section (Section 13) to be distributed at a later date.

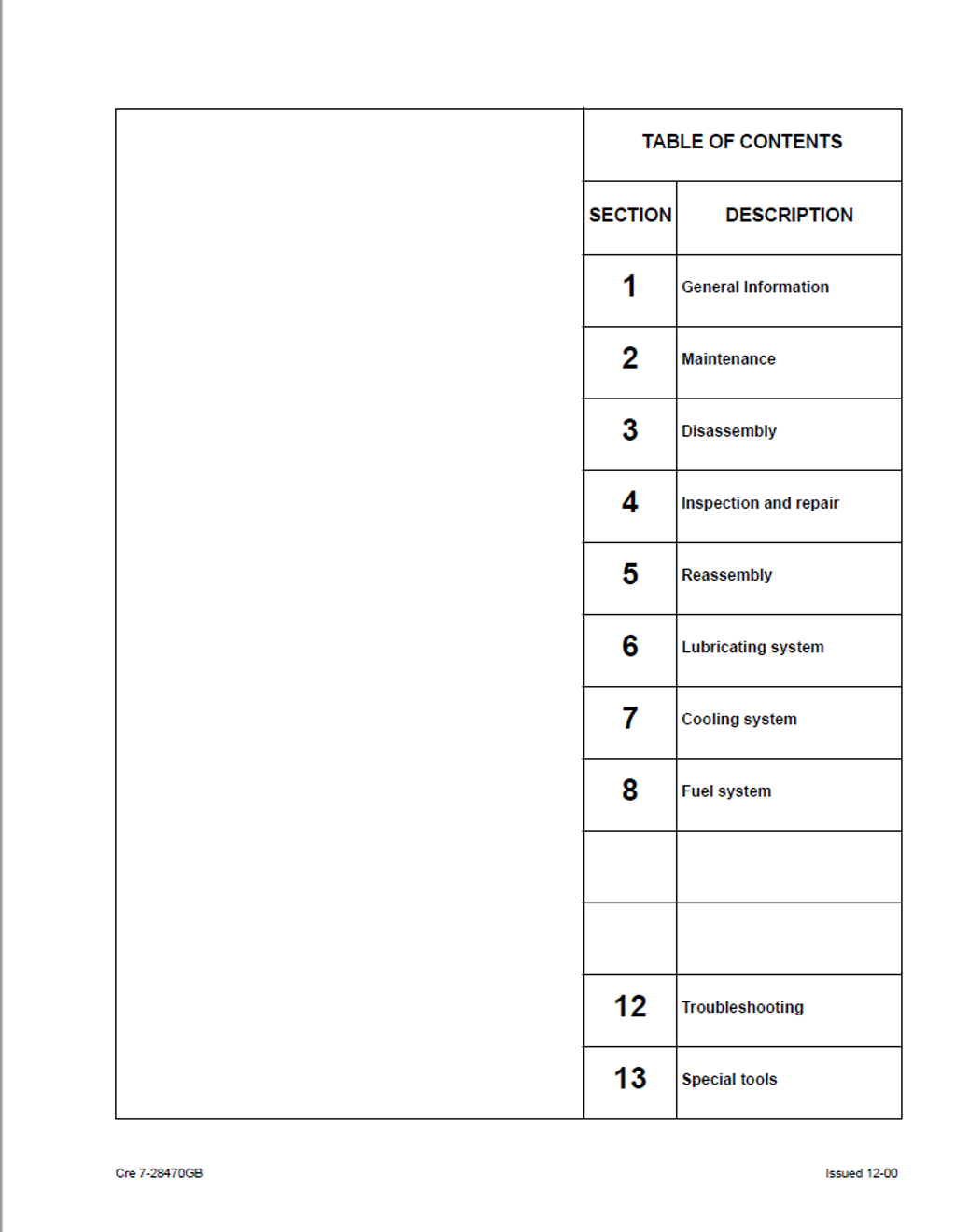

Table of Contents

  • General Information
    • General repair instructions
    • Notes on the format of this manual

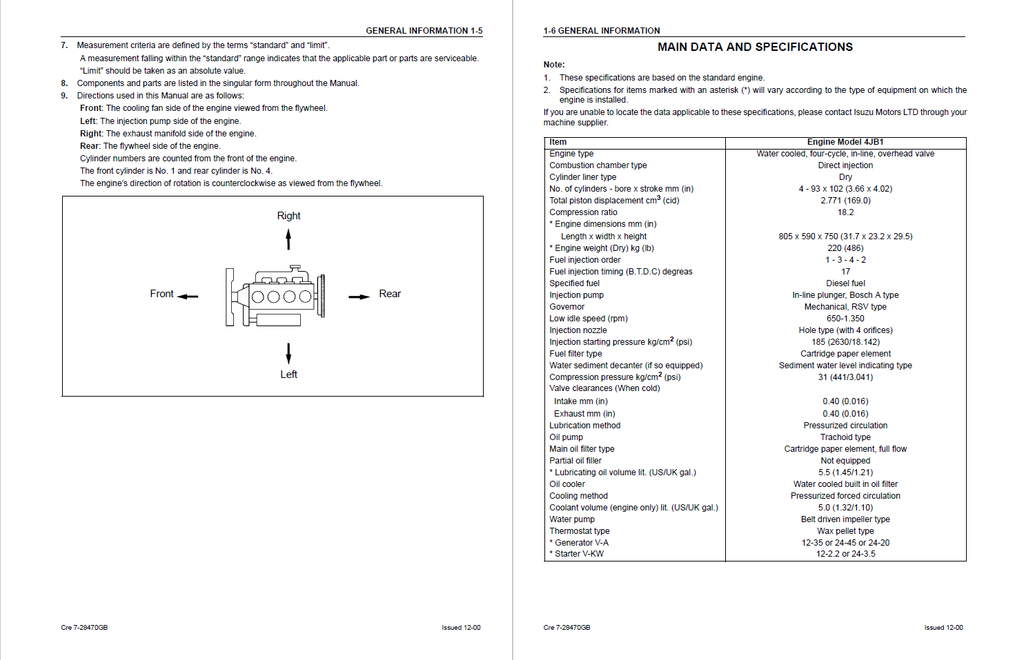

    • Main data and specifications
    • Tightening torque specifications
    • Major component mounting nuts and bolts
    • Identification
  • Maintenance
    • Fuel system
    • Cooling system

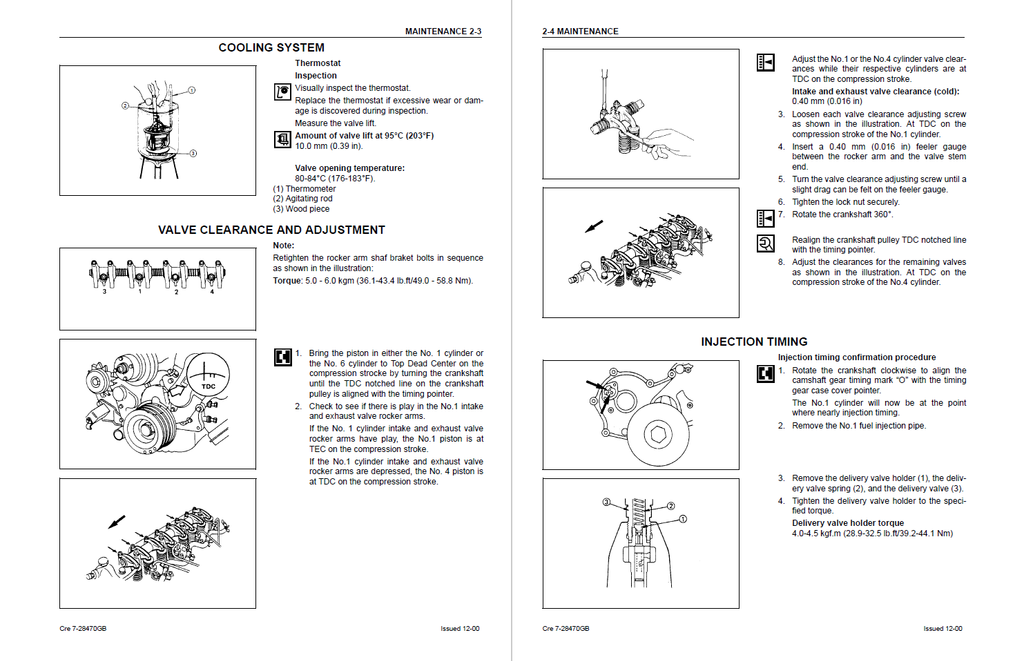

    • Valve clearance adjustment
    • Injection timing
    • Compression pressure measurement
    • Engine repair kit
  • Engine Assembly I (Disassembly)
    • External parts disassembly steps
    • Rocker arm shaft and rocker arm
    • Cylinder head disassembly steps
    • Piston and connecting rod disassembly steps
    • Camshaft, camshaft timing gear and thrust plate disassembly steps
  • Engine Assembly II (Inspection and repair)
    • Cylinder head
    • Valve guide
    • Valve and valve seat insert
    • Valve spring
    • Rocker arm shaft and rocker arm
    • Cylinder block
    • Tappet
    • Camshaft
    • Crankshaft and bearing
    • Crankshaft pilot bearing
    • Flywheel and ring gear
    • Piston
    • Piston ring
    • Piston pin
    • Connecting rod
    • Idler gear shaft and idler gear
    • Timing gear case cover
  • Engine Assembly III (Reassembly)
    • Rocker arm shaft and rocker arm reassembly
    • Cylinder head reassembly
    • Camshaft, camshaft timing gear and thrust plate reassembly steps
    • Major component reassembly steps
    • External parts reassembly steps
  • Lubricating System
    • Main data and specifications
    • General information
    • Oil pump
      • Disassembly
      • Inspection and repair
      • Reassembly
    • Oil filter with built-in oil cooler
      • Disassembly
      • Inspection and repair
      • Reassembly
  • Cooling System
    • Main data and specifications
    • General description
    • Water pump
      • Disassembly
      • Inspection and repair
      • Reassembly
    • Thermostat
  • Fuel System
    • Main data and specifications
    • General description
    • Injection nozzle
      • Disassembly
      • Inspection and repair
      • Reassembly
  • Troubleshooting

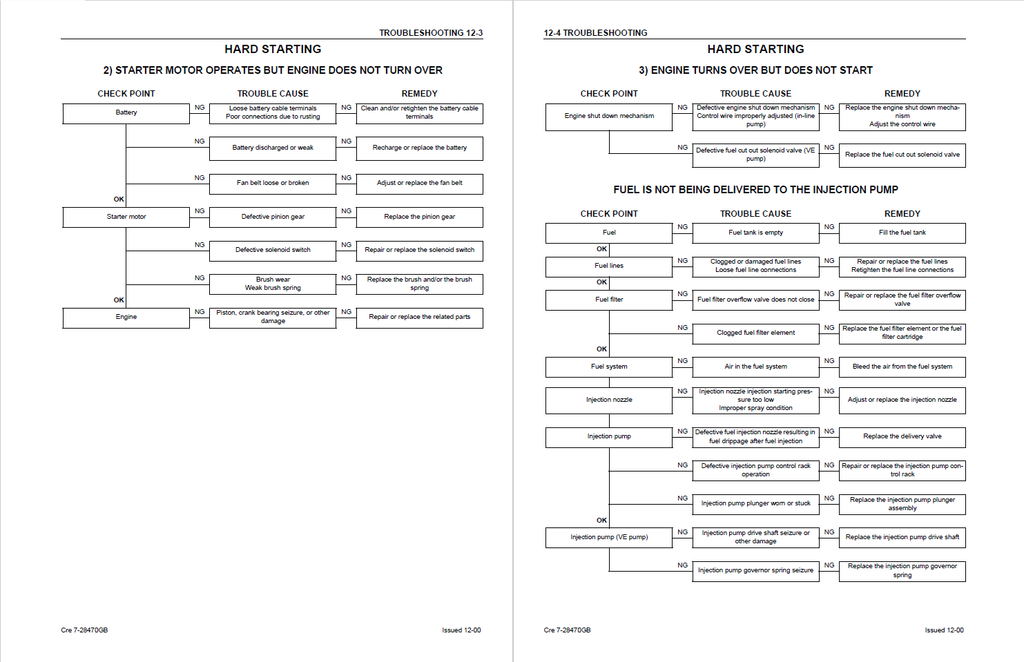

    • Hard starting
    • Unstable low idling
    • Insufficient power
    • Excessive fuel consumption
    • Excessive oil consumption
    • Overheating
    • White exhaust smoke
    • Dark exhaust smoke
    • Oil pressure does not rise
    • Abnormal engine noise
