ISUZU / CASE Construction 6HK1 Diesel Engine Service Manual 9-36540 English

Official Manual Overview

Take absolute mastery over the massive 7.79-liter powerhouse with this dedicated OEM Service Manual, engineered explicitly for the ISUZU 6HK1 Diesel Engine powering CASE equipment. This is not a basic maintenance guide; it is the ultimate blueprint for dealership-level block reconstruction. It delivers uncompromising metrology data, dictating precise 0.122–0.156 mm (0.0048–0.0061 in) cylinder liner clearances and mandating strict metallurgical tests, such as utilizing an ammonium cuprous chloride chemical solution to verify the crankshaft's Tufftriding integrity before reassembly. Technicians will find complete calibration matrices for the Bosch P-Type in-line injection pump, requiring exact dual-stage nozzle opening pressures of 18.1 MPa (2630 psi) and 22.1 MPa (3200 psi). From rebuilding the gear-driven overhead camshaft to executing complex angular torque sequences (such as the 78 Nm + 60° + 60°-90° requirement for the flywheel housing bolts), this literature empowers mechanics to restore maximum heavy-duty performance with absolute mathematical certainty.

• Brands: ISUZU / CASE Construction
• Equipment Type: Diesel Engine
• Manuals Type: Service Manual
• Machine Model: 6HK1
• Serial Number: N/R
• Region: N/R
• Book Code: 9-36540
• Issued: Printed in France, January 2002
• Language: English
• Pages: 222
• File Format: PDF (Searchable)

Core Selling Points

• Precision Gear Train Metrology: Reconstruct the rotating assembly with absolute mathematical certainty. The literature mandates strict timing gear clearances, specifying an idler gear backlash standard of 0.10 to 0.17 mm and imposing a hard replacement limit at 0.30 mm to prevent catastrophic valve collision.
• Advanced Fastening Architectures: Avoid block distortion and blown gaskets by utilizing the factory's exact angular tightening methodologies. Mechanics are provided with strict torque sequences, such as the three-stage flywheel housing bolt requirement starting at 78 Nm, followed by a 60-degree rotation, and finishing with a final 60 to 90-degree yield.

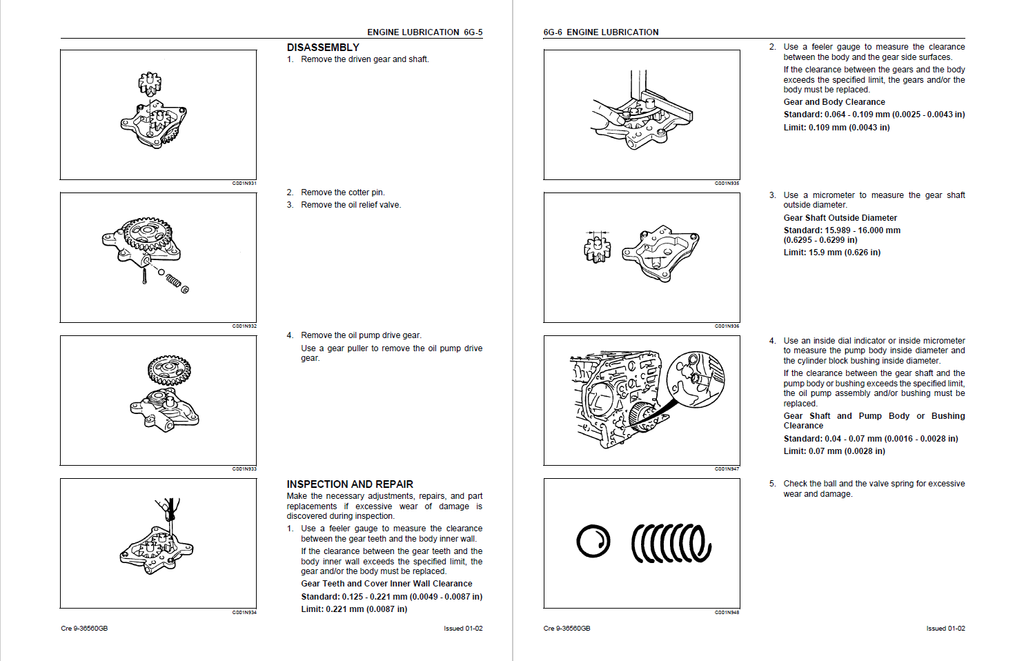

• Surgical Lubrication Overhauls: Move beyond simple oil changes and rebuild the fluid delivery network to OEM specifications. The manual dictates micrometer-level inspections for the oil pump, requiring a precise 0.125 to 0.221 mm clearance between the gear teeth and the cover inner wall to guarantee continuous hydrodynamic bearing protection.

Features & Highlights

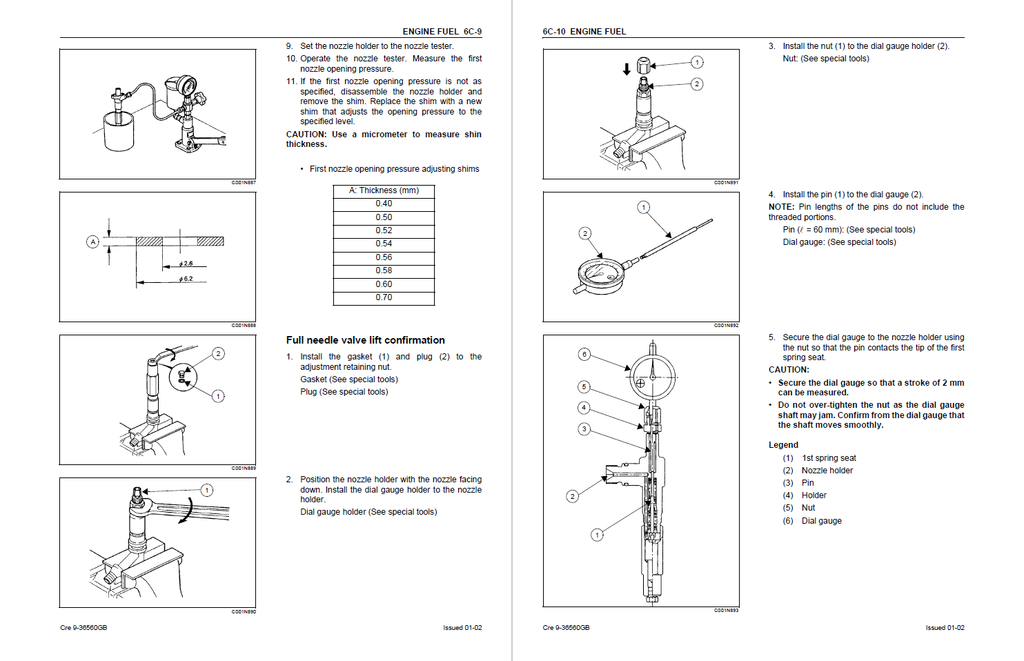

• Dual-Stage Fuel Injection Calibration: Master the intricacies of the 6HK1 fuel delivery system. Technicians are guided through comprehensive bench-testing protocols to verify the first nozzle opening pressure at exactly 18.1 MPa (2630 psi) and the second stage at 22.1 MPa (3200 psi), while utilizing a dial gauge to confirm a microscopic 0.05 mm pre-lift.
• Heavy-Duty Electrical Diagnostics: Eliminate the guesswork when dealing with charging and starting failures. The guide maps out complete bench-test procedures for the 24V starting system, including armature continuity checks with a circuit tester, and mandates alternator performance calibration to guarantee a steady 50 A output at 27 volts during 5000 min-1 operation.
• Uncompromising Structural Thresholds: Safeguard your machining investments with rigid factory wear limits. The documentation provides absolute dimensional parameters, including a maximum 0.2 mm cylinder block upper face warpage limit and specific valve depression tolerances, restricting intake valve depth to no more than 2.5 mm.

Problem Solver

• Eradicates Diagnostic Blind Spots: The exhaustive troubleshooting matrices provide definitive logic paths for isolating complex mechanical faults. It rapidly guides mechanics to trace elusive symptoms like "White Exhaust Smoke" or "Abnormal Engine Noise" directly to their root causes, distinguishing between a worn connecting rod bushing, improperly adjusted injection timing, or a damaged turbocharger seal ring.
• Cures Intermittent Overheating: Resolves hidden thermal issues that cook engine blocks. The troubleshooting and cooling sections map out specific diagnostic trees, instructing builders to verify that the thermostat valve achieves exactly 10.0 mm of lift at 95°C and checking for restricted center housing oil drain passages.
• Prevents Reassembly Catastrophes: Improperly sequenced lower ends will destroy structural integrity. This guide safeguards your rebuilds by dictating strict fastening sequences, such as tightening the lower crankcase M10 bolts to exactly 37 Nm in a precise numerical order, ensuring the machined block and crankcase mate perfectly as a single unit.

Important Pre-Purchase Advisories

• Dedicated Powertrain Focus: Please note that this is a specialized diesel engine service manual strictly covering the Isuzu 6HK1 block used in CASE machinery. It does not contain full chassis wiring diagrams, complex hydraulic implement schematics, or undercarriage track service instructions for the host equipment.
• Special Tools Section Omitted: While proprietary service tools (such as specific valve guide replacers or dial indicators) are referenced throughout the repair sequences, the manufacturer explicitly printed a disclaimer in Section 13 stating that the dedicated "Special Tool List" will be distributed at a later date, leaving the physical page intentionally blank.

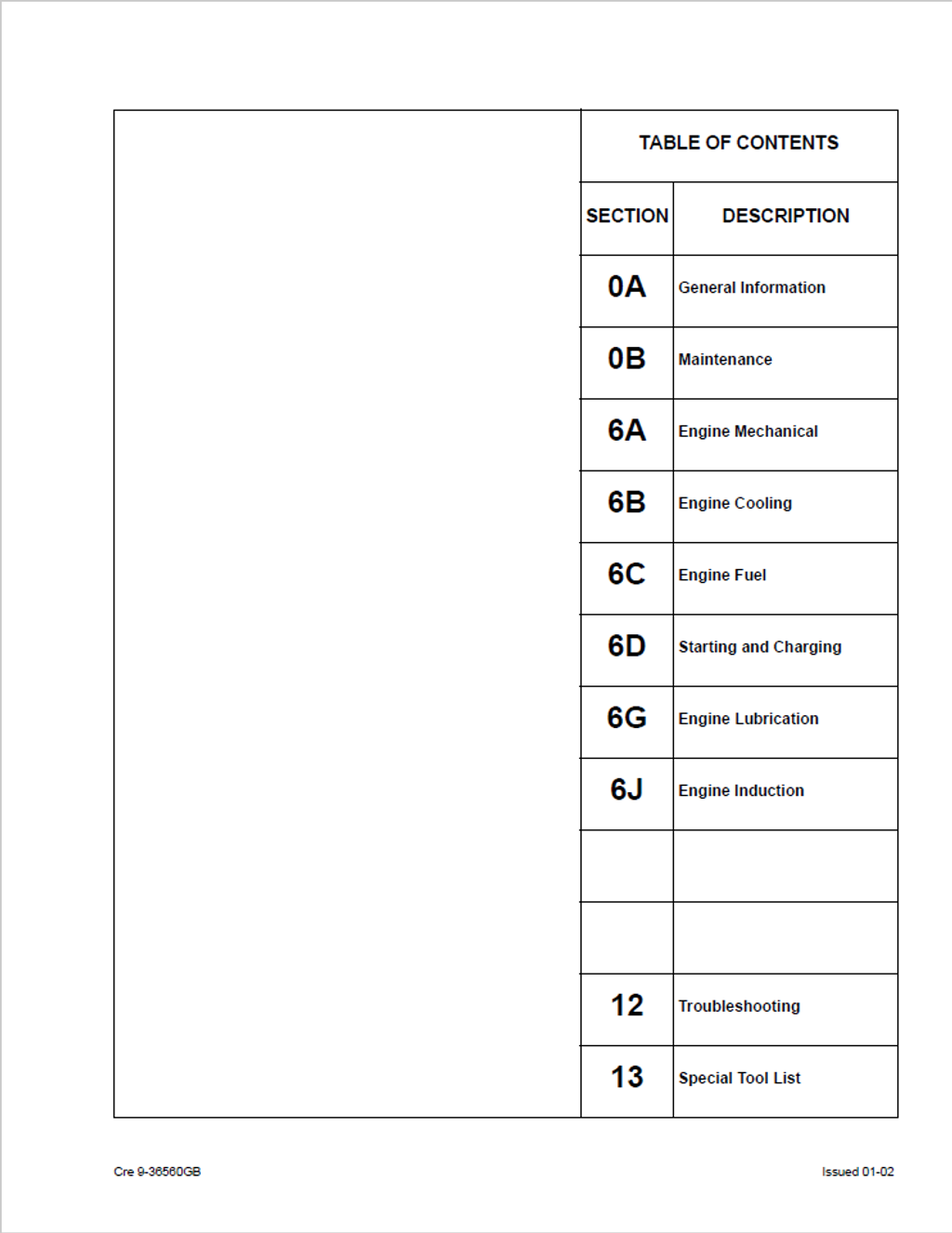

Table of Contents

• General Information
  • General repair instructions

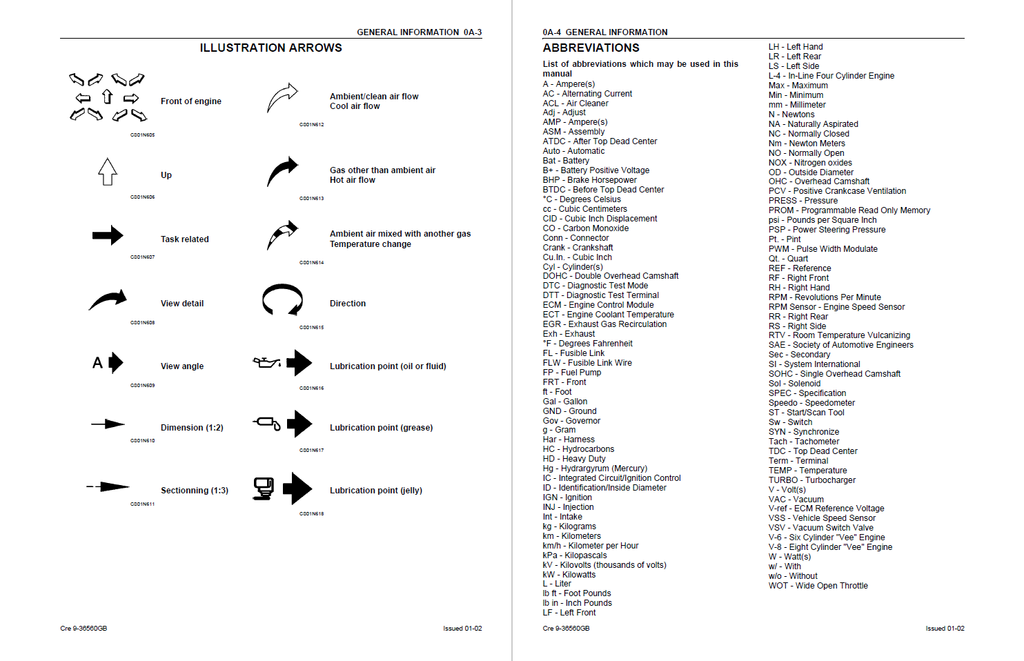

  • Illustration arrows
  • Abbreviations

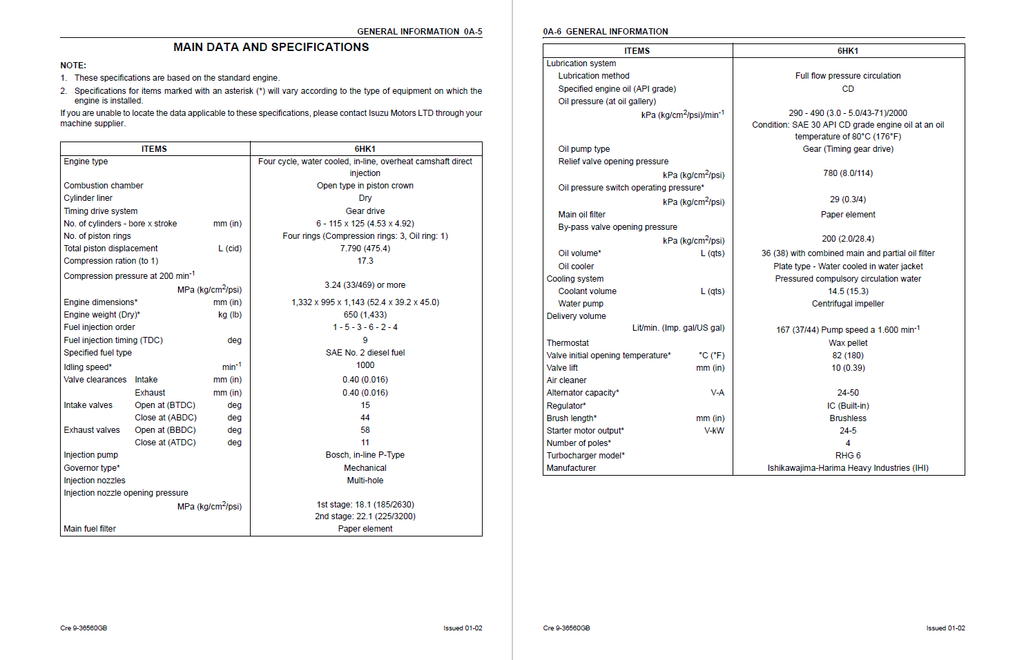

  • Main data and specifications
  • Service standards
  • Engine external view drawing
  • Tightening torque specifications
  • Angular nut and bolt tightening method
  • Major component mounting nuts and bolts
• Maintenance
  • Identification
  • Fuel system
  • Cooling system

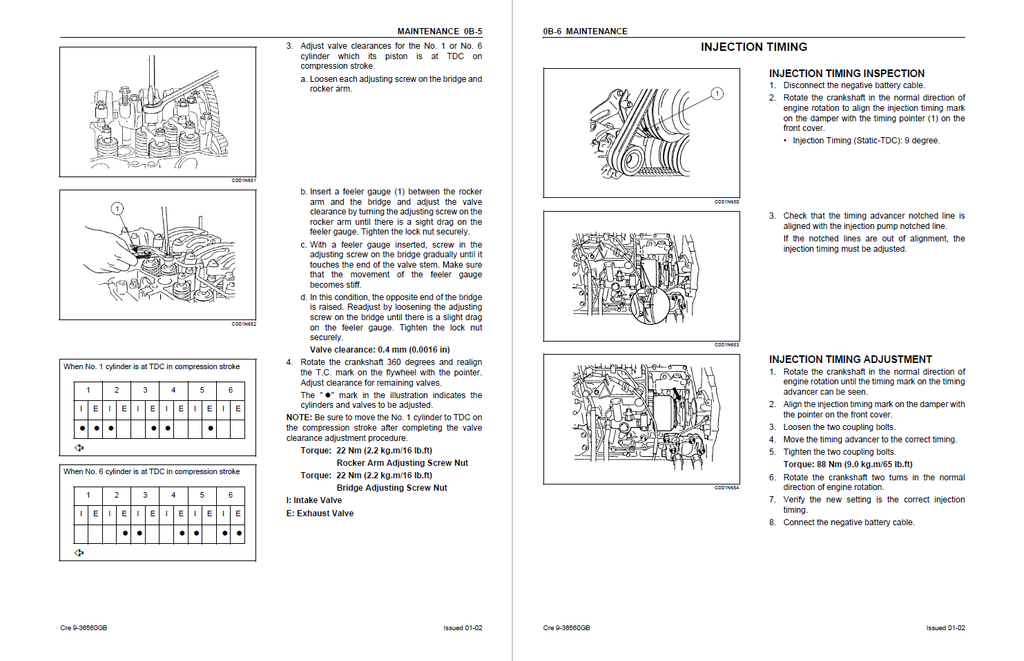

  • Valve clearance and adjustment
  • Injection timing
  • Compression pressure measurement
• Engine Mechanical
  • Service precautions
  • General description
  • Turbocharger
  • Exhaust manifold
  • Intake cover
  • Water pump
  • Alternator
  • Injection pump
  • Bearing case
  • Oil cooler
  • Rocker arm and shaft assembly
  • Camshaft

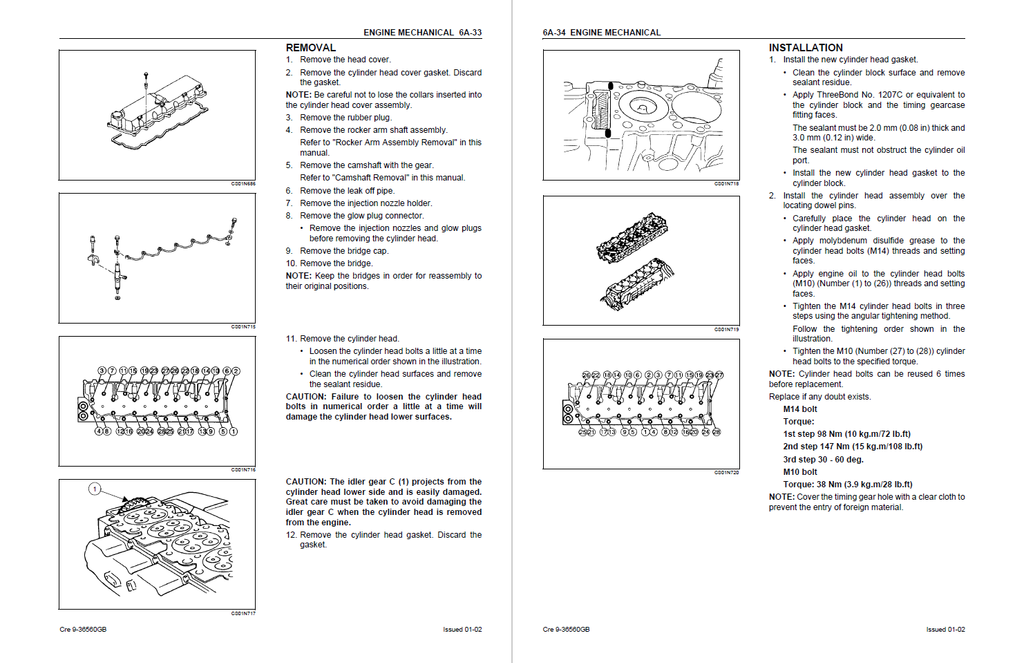

  • Cylinder head
  • Crank pulley and flywheel
  • Timing gears
  • Flywheel housing
  • Oil pan
  • Front cover

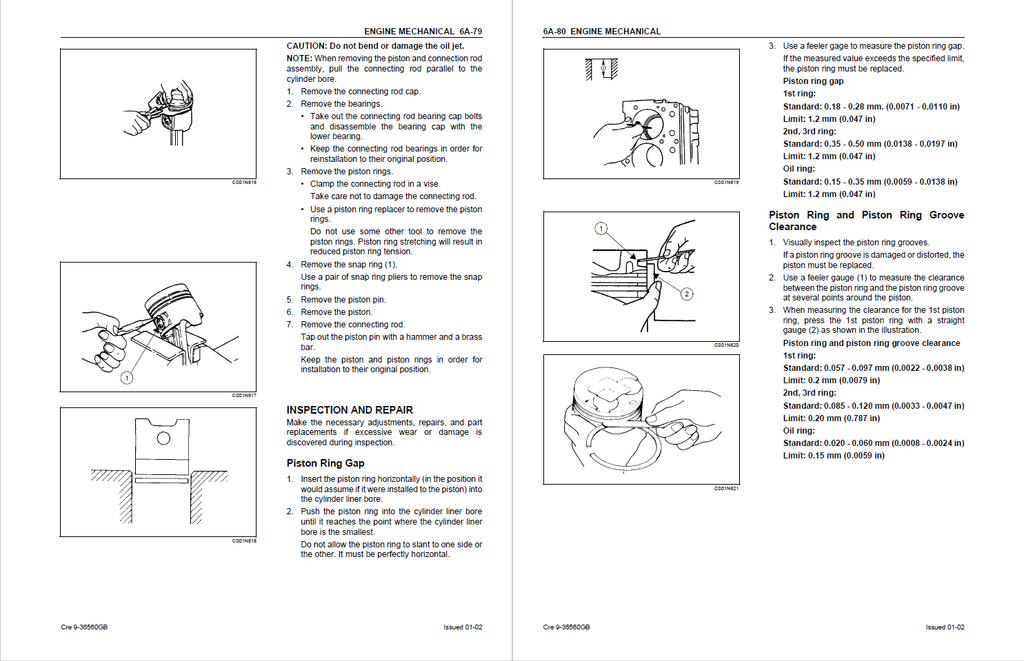

  • Piston
  • Crankshaft
  • Cylinder block
• Engine Cooling
  • Water pump
    • Disassembly
    • Reassembly
• Engine Fuel
  • Service precaution
  • General description
  • Fuel filter
  • Injection nozzle
    • Disassembly
    • Inspection and repair
    • Reassembly
• Starting and Charging
  • Service precaution
  • Alternator
  • Starter motor
    • Disassembly
    • Inspection and repair
    • Reassembly
• Engine Lubrication
  • Service precaution
  • General description
  • Oil pump
    • Disassembly
    • Inspection and repair
    • Reassembly
  • Oil cooler
    • Disassembly
    • Inspection and repair
    • Reassembly
  • Oil port cover
    • Removal
    • Inspection and repair
  • Oil filter
    • Disassembly
    • Inspection and repair
    • Reassembly
• Engine Induction

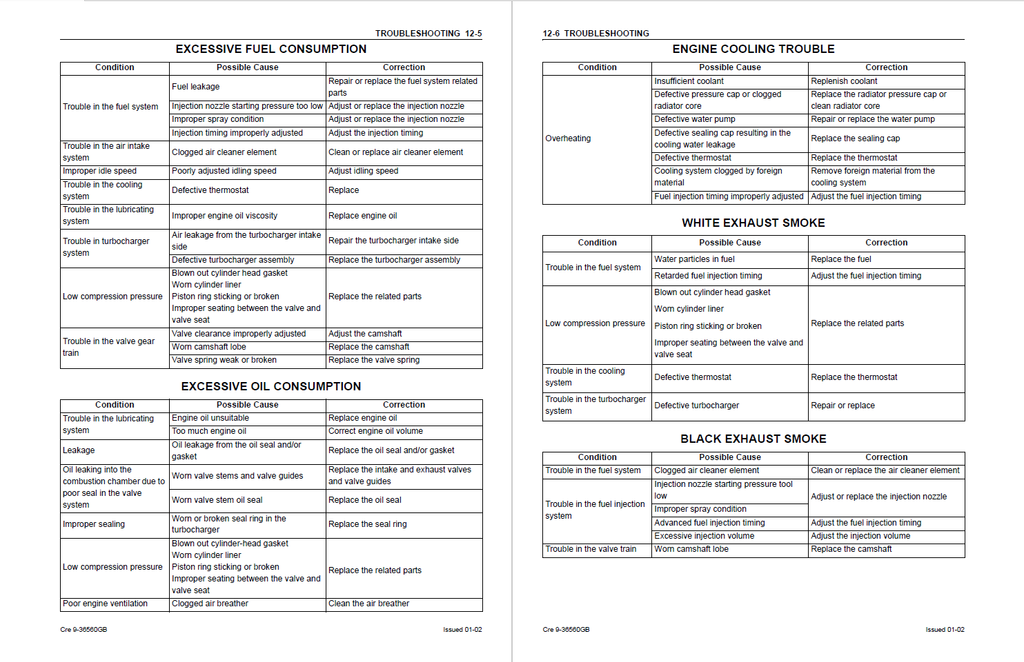

• Troubleshooting
  • Hard starting
  • Unstable idling
  • Insufficient power
  • Excessive fuel consumption
  • Excessive oil consumption
  • Engine cooling trouble
  • White exhaust smoke
  • Black exhaust smoke
  • Lubrication problems
  • Abnormal engine noise
  • Alternator
  • Starter motor
  • Turbocharger
