9-54870NA_01

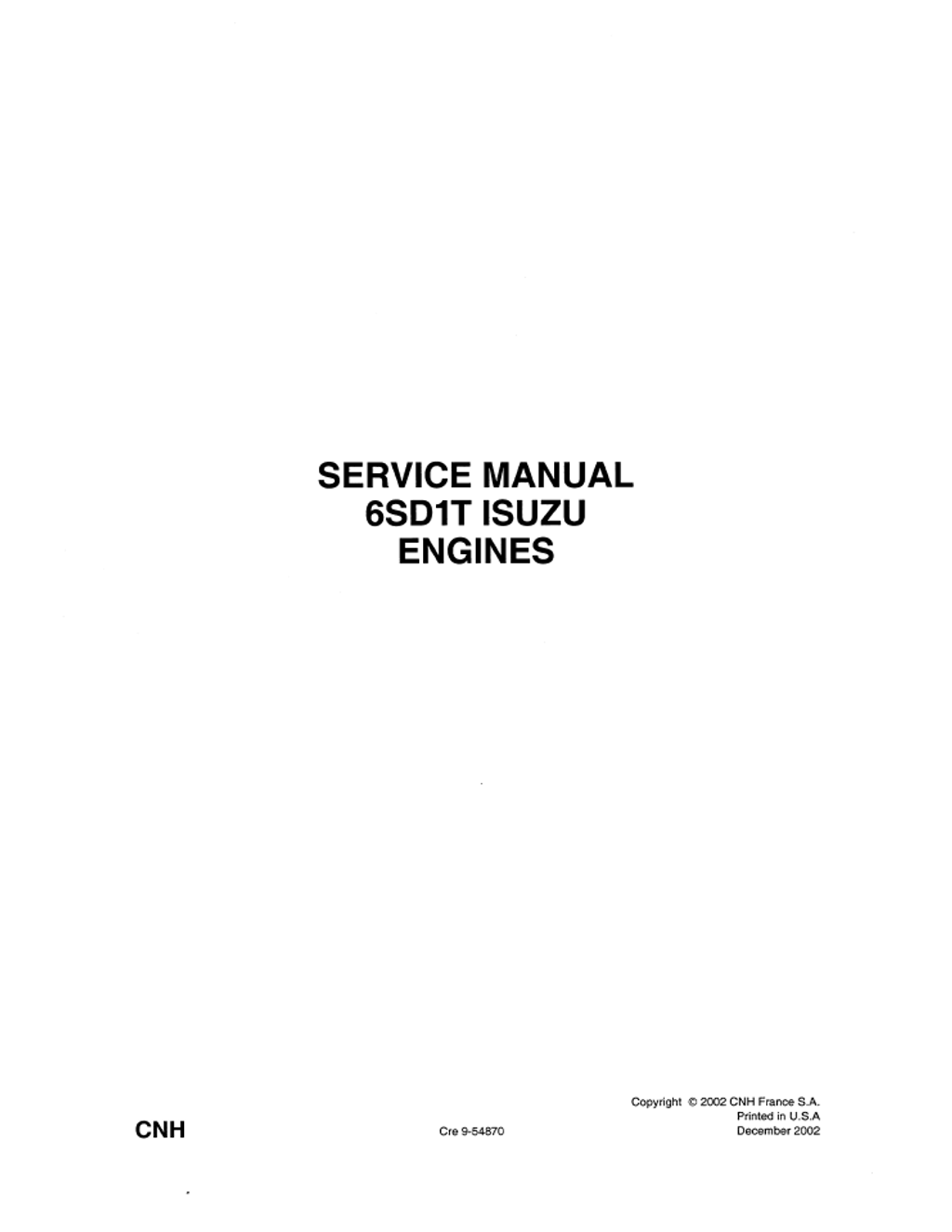

ISUZU / CASE Construction 6SD1T, AA-6SD1T Diesel Engine Service Manual 9-54870NA English

$ 16.99 USD
View More

Official Manual Overview

Take absolute command over the 9.8-liter Isuzu AA-6SD1T Diesel Engine with this uncompromising OEM Service Manual, officially published under the CNH/CASE Construction architecture. Engineered strictly for elite diesel technicians and heavy-duty machinists, this master reference completely bypasses basic external checks to deliver surgical physical reconstruction protocols for the entire cylinder block, overhead camshaft gear train, and advanced two-stage fuel delivery network. It demands absolute mathematical precision, dictating exact dimensional thresholds such as the strict 0.106–0.134 mm cylinder liner projection and condemning the cylinder head if warpage exceeds the 0.2 mm absolute limit. Furthermore, it enforces immense structural fastening matrices, explicitly requiring a critical multi-stage angular tightening sequence for both the M14 cylinder head and lower crankcase bolts (peaking at 152 Nm plus a 30–60 degree final plastic-region rotation) to guarantee absolute rigidity under extreme industrial compression. From calibrating the multi-hole injection nozzles to exact dual-stage opening pressures (17.7 MPa for the first stage and 22.1 MPa for the second) to measuring precise crankshaft journal clearances with Plastigage, this guide provides the exact factory metrology required to eradicate power loss and restore peak 9.8L combustion efficiency.

  • Brands: ISUZU / CASE Construction
  • Equipment Type: Diesel Engine
  • Manuals Type: Service Manual
  • Machine Model: 6SD1T (AA-6SD1T)
  • Serial Number: N/R
  • Region: N/R
  • Book Code: 9-54870NA
  • Issued: Printed in U.S.A. December 2002
  • Language: English
  • Pages: 244
  • File Format: PDF (Searchable)

Core Selling Points

  • Micro-Precision Bottom End Metrology: Take the guesswork out of the rotating assembly. This manual provides absolute micrometer limits for the 6SD1T crankshaft, condemning the journal-to-bearing clearance via Plastigage the moment it exceeds 0.16 mm, and enforcing a strict 0.15 mm maximum runout limit. It ensures that master builders can machine and match bearing grades with factory certainty.
  • Extreme Angular Fastening Architecture: Secure the engine's reciprocating mass against catastrophic industrial loads. The documentation details highly complex multi-stage angular tightening sequences for the bottom end, requiring technicians to lock down the connecting rod bearing caps with an initial 37 to 41 N·m base torque, followed by an aggressive sequence of 60°, 120°, and a final 60° rotational stretch to achieve optimal bolt plasticity.
  • Complete Turbocharger Reconstruction: Stop buying expensive replacement cartridges. This reference equips machinists to completely tear down, clean, and rebuild the turbine core, enforcing uncompromising tolerances such as a 0.015 mm shaft runout limit and a highly restricted 0.075 to 0.155 mm axial play threshold for the rotating assembly.

Features & Highlights

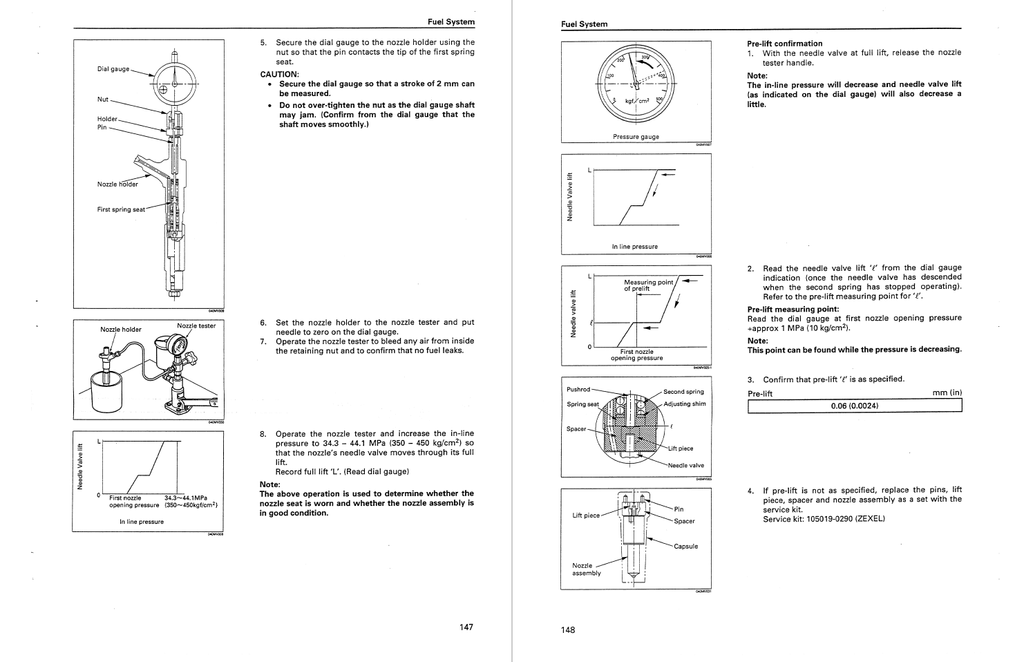

  • ZEXEL Two-Stage Injection Calibration: Restore perfect fuel atomization and eliminate black smoke. The guide dictates exact metrology for the multi-hole nozzle holders, requiring technicians to measure a precise 0.06 mm pre-lift using dial indicators, and mathematically calculate shim thickness to hit the exact 17.7 MPa first-stage and 22.1 MPa second-stage opening pressures.

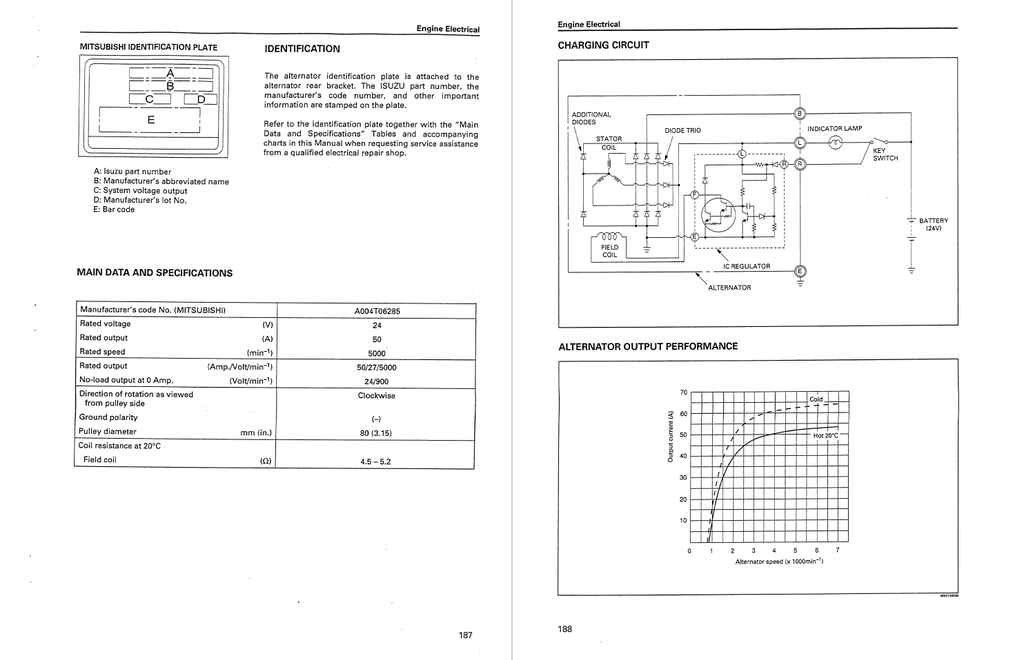

  • Heavy-Duty Electrical Bench Testing: Bypass parts-cannon diagnostics. The manual provides the exact internal blueprints for the 24V/50A Mitsubishi alternator and the 5.5kW Nippon Denso starting motor. It maps out the full charging circuit and dictates specific multimeter limits, such as verifying the alternator rotor coil maintains a strict 4.5 to 5.2 ohms resistance at 20°C.
  • Systematic Symptom Flowcharts: Navigate complex operational failures with logical precision. Dedicated diagnostic matrices use sequential "OK/NG" (No Good) logic trees to track down the root cause of issues like "Lack of Power," isolating whether the fault lies in a broken injection pump plunger spring, improper 7° BTDC injection timing, or a worn roller tappet.

Problem Solver

  • Eradicates Critical Compression Loss: Troubleshoot severe blow-by definitively. The manual outlines exact testing parameters using the specific 5-85317-001-0 gauge adapter, establishing that a healthy 6SD1T cylinder must register 2.84 MPa (412 psi) at 200 rpm, and explicitly condemning any engine falling below the 2.06 MPa (300 psi) absolute death limit.
  • Cures Elusive Thermal Overheating: Eliminate hidden cooling failures that warp cylinder heads. Exhaustive procedures guide builders through testing the wax-pellet thermostat by submerging it in heated fluid, requiring physical verification that the valve achieves its full 10 mm lift precisely at 90°C (194°F), instantly isolating a failed thermostat from a sheared water pump impeller.
  • Resolves Severe Valvetrain Clatter: Prevent upper-head destruction and restore breathing efficiency. Machinists are given absolute geometric data for the cylinder head, instructing them to replace the valve seat inserts if the intake valve depression drops past the 1.48 mm maximum limit, while enforcing a rigid 0.4 mm cold clearance for the overhead camshaft valvetrain.

Important Pre-Purchase Advisories

  • Strictly Engine-Focused Literature: This specific service manual acts as the definitive technical blueprint exclusively for the standalone Isuzu 6SD1T (AA-6SD1T) diesel engine. It exhaustively covers internal engine machining, fuel pump timing, turbocharger rebuilds, and engine-mounted electrical units. For diagnostics relating to the host machine's hydraulic pumps, track undercarriage, or cab CAN-bus electronics, a separate machine-specific chassis manual is strictly required.

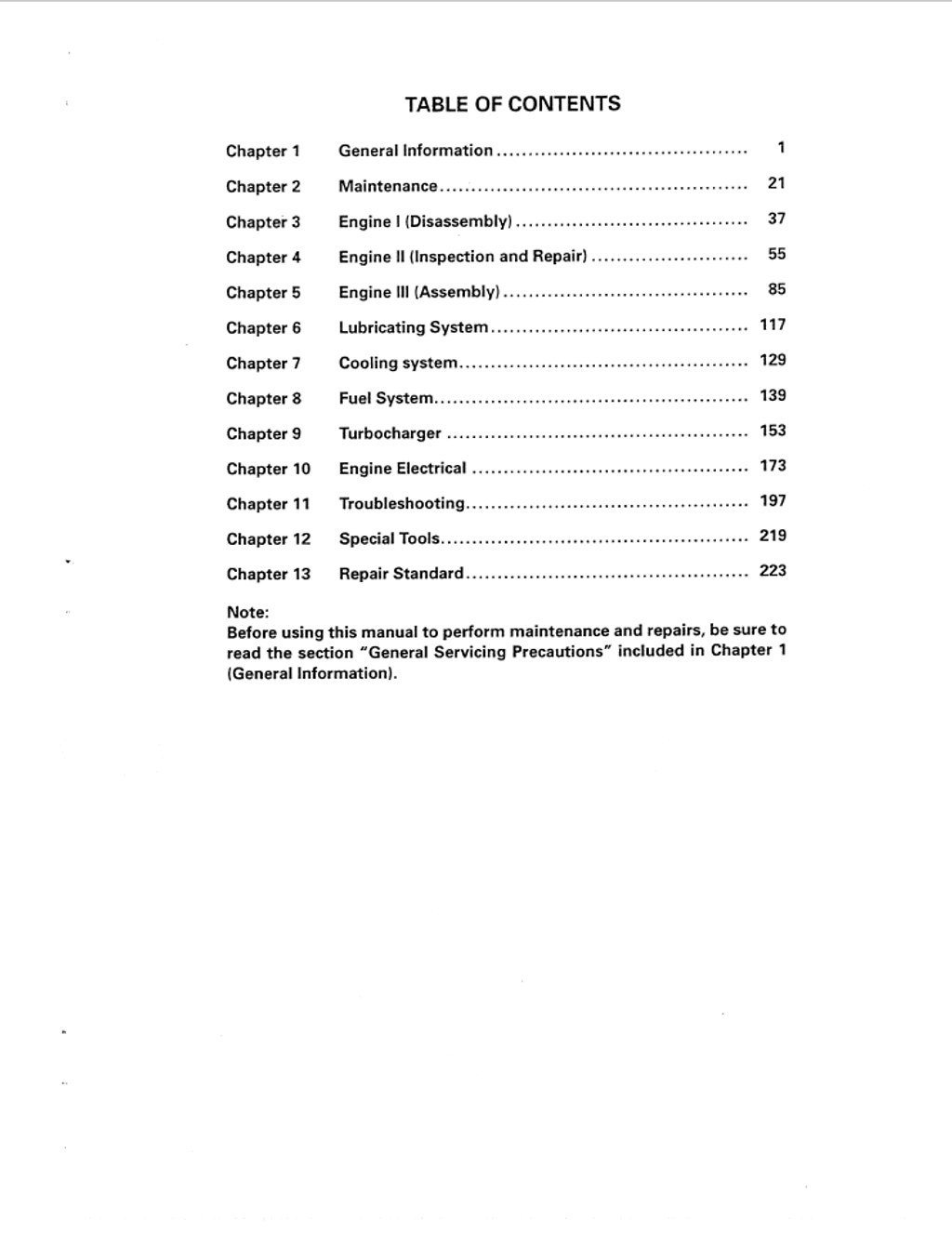

Table of Contents

  • General Information
    • General servicing precautions

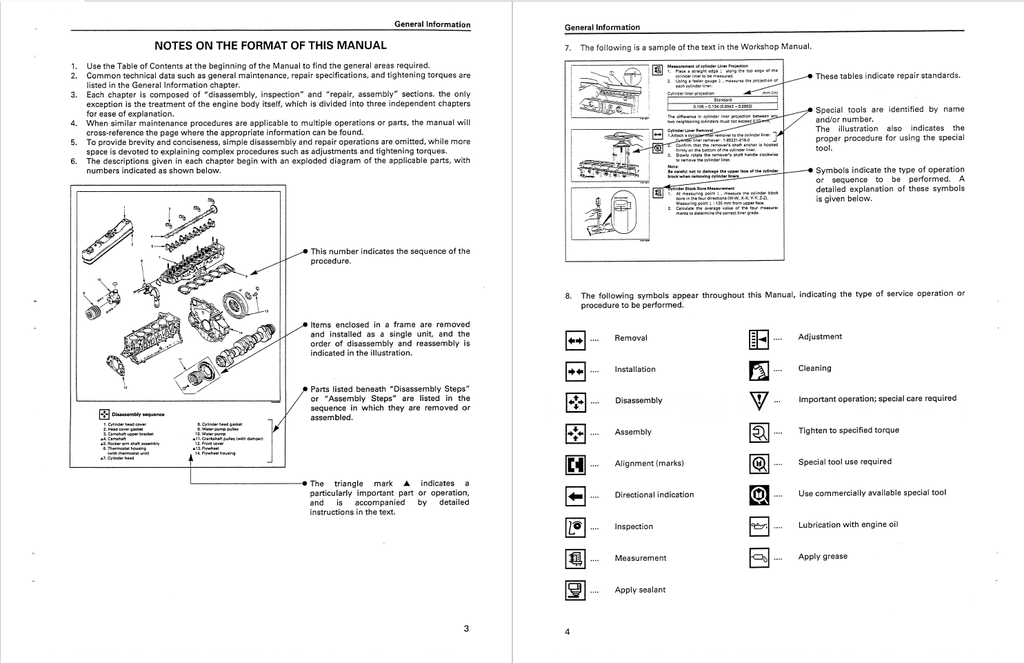

    • Notes on the Format of this Manual
    • About Angular Tightening

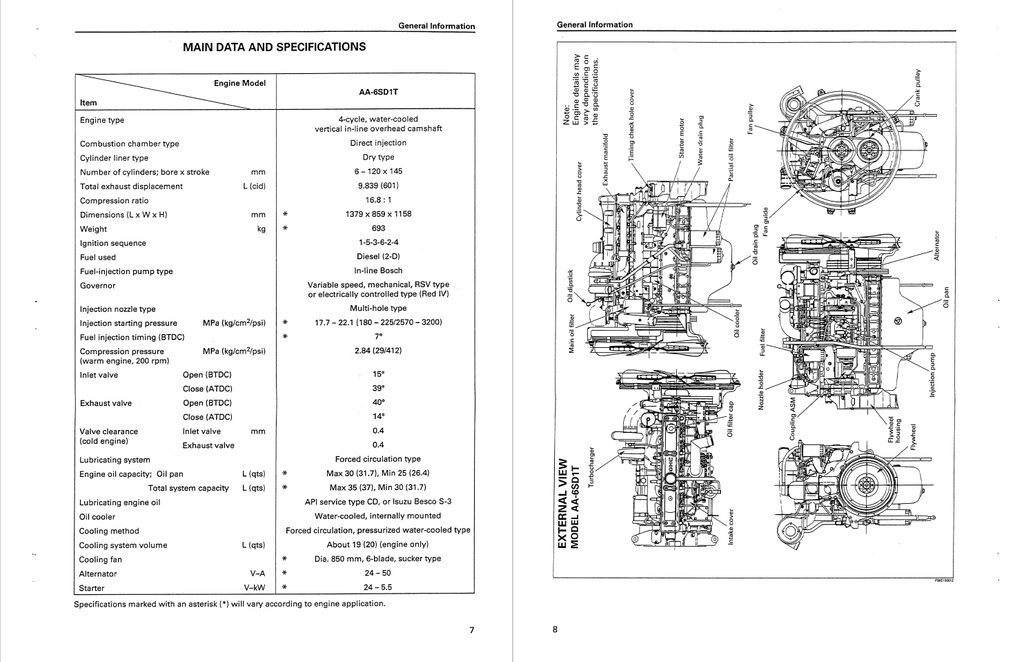

    • Main Data and Specifications
    • External View
    • Tightening Torque Specifications
    • Tightening Torques for Main Parts
    • Model and Identification Serial Numbers
  • Maintenance
    • Lubricating system
    • Fuel system
    • Cooling system
    • Valve clearance adjustment

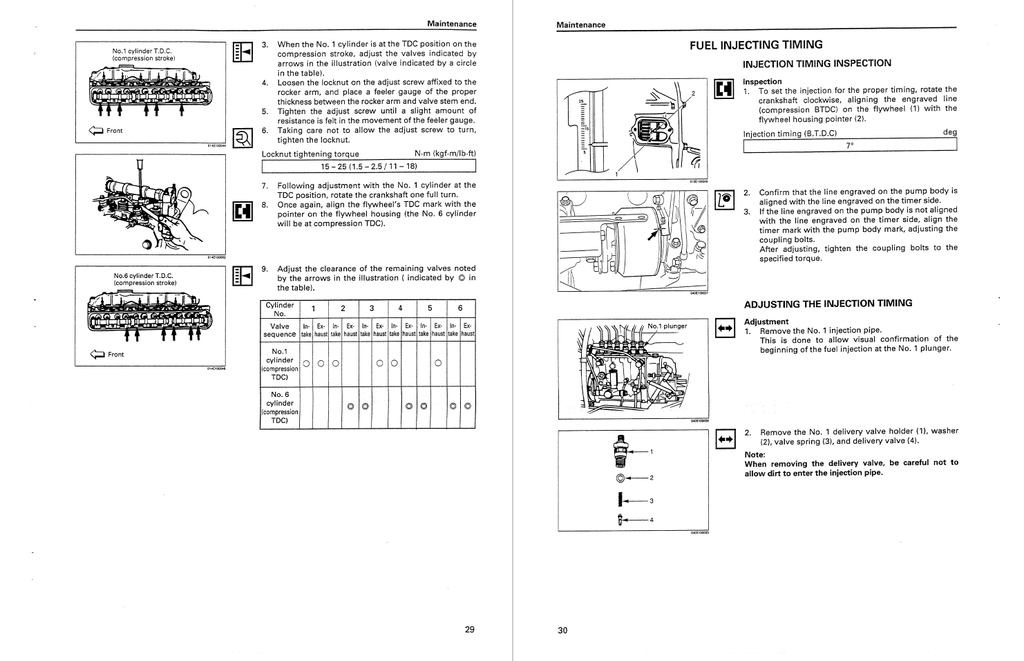

    • Fuel injection timing
    • Recommended lubricating oil
    • Cylinder compression pressure
    • Engine repair kit
  • Engine I (Disassembly)
    • External view
    • Disassembly 1
    • Disassembly 2
    • Disassembly 3
    • Cylinder head ASM disassembly
    • Rocker arm shaft ASM disassembly
    • Piston and connecting rod disassembly
  • Engine II (Inspection and Repair)
    • Inspection and repair (1) (Cylinder head)
      • Cylinder head

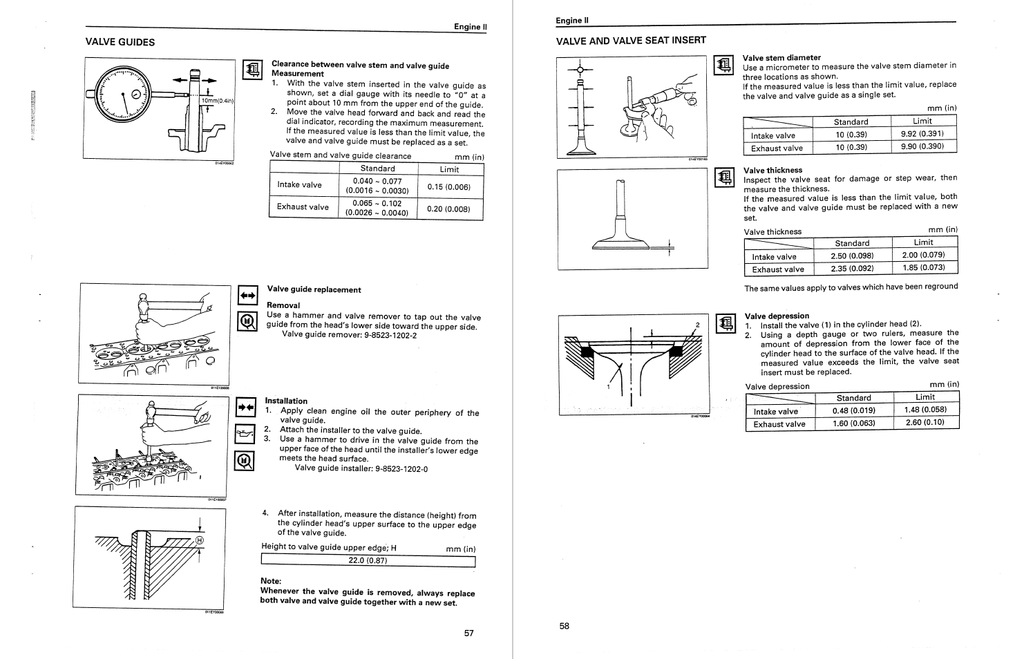

      • Valve guides
      • Valve seat insert
      • Valve springs
      • Rocker arm shaft, rocker arm
      • Camshaft
    • Inspection and repair (2) (Cylinder block)
      • Cylinder block, cylinder liner
      • Pistons
      • Piston ring
      • Piston pins
      • Connecting rods
      • Crankshaft
      • Crankshaft and bearings
      • Front cover oil seal
      • Crankshaft rear oil seal
  • Engine III (Assembly)
    • Rocker arm shaft assembly
    • Cylinder head assembly
    • Piston and connecting rod assembly

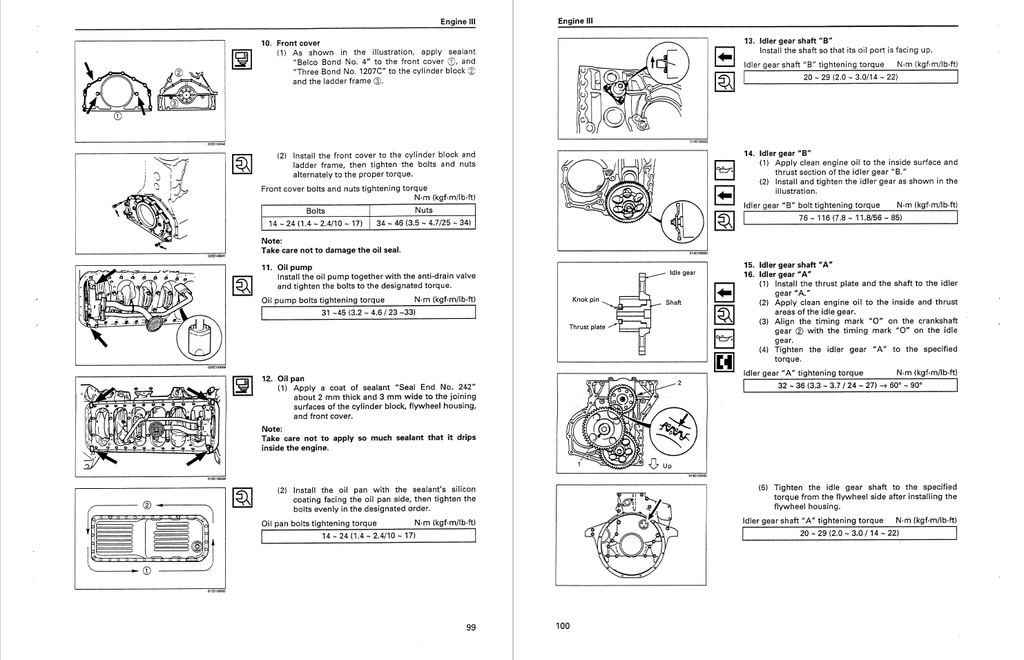

    • Assembly 1
    • Assembly 2
    • Assembly 3
    • Timing gear train diagram
  • Lubricating System
    • Introduction
    • Oil pump
      • Disassembly
      • Inspection and repair
      • Assembly
    • Oil filter
    • Oil cooler
      • Disassembly
      • Inspection and repair
      • Assembly
  • Cooling System
    • Introduction
    • Water pump
      • Disassembly
      • Inspection and repair
      • Assembly
    • Thermostat
      • Inspection and repair
  • Fuel System
    • Introduction
    • Injection nozzle
      • 2 Stage Injection Type
      • Disassembly
      • Reassembly and opening pressure adjustment
  • Turbocharger
    • Turbocharger servicing
    • Troubleshooting
    • Construction
    • Disassembly
    • Cleaning
    • Inspection
    • Reassembly
    • Service standard
  • Engine Electrical
    • Starter
      • Main data and specifications
      • Sectional drawing
      • Output characteristics
      • Circuit arrangement
      • Disassembly
      • Inspection and repair
      • Reassembly
    • Alternator
      • General description
      • Identification
      • Main data and specifications
      • Charging circuit
      • Alternator output performance
      • Disassembly
      • Inspection and repair
      • Reassembly
      • Troubleshooting
  • Troubleshooting
    • Starting difficulties
      • Starter doesn't turn
      • Starter turns, but engine doesn't turn over
      • The engine turns and fuel reaches the injection pump, but it doesn't start
      • The engine turns, but doesn't start
      • Fuel isn't supplied to the injection pump
    • Unstable idling rpm
    • Lack of power
    • Excessive fuel consumption
    • Excessive oil consumption
    • Overheating
    • White smoke in exhaust
    • Black smoke in exhaust
    • Low oil pressure

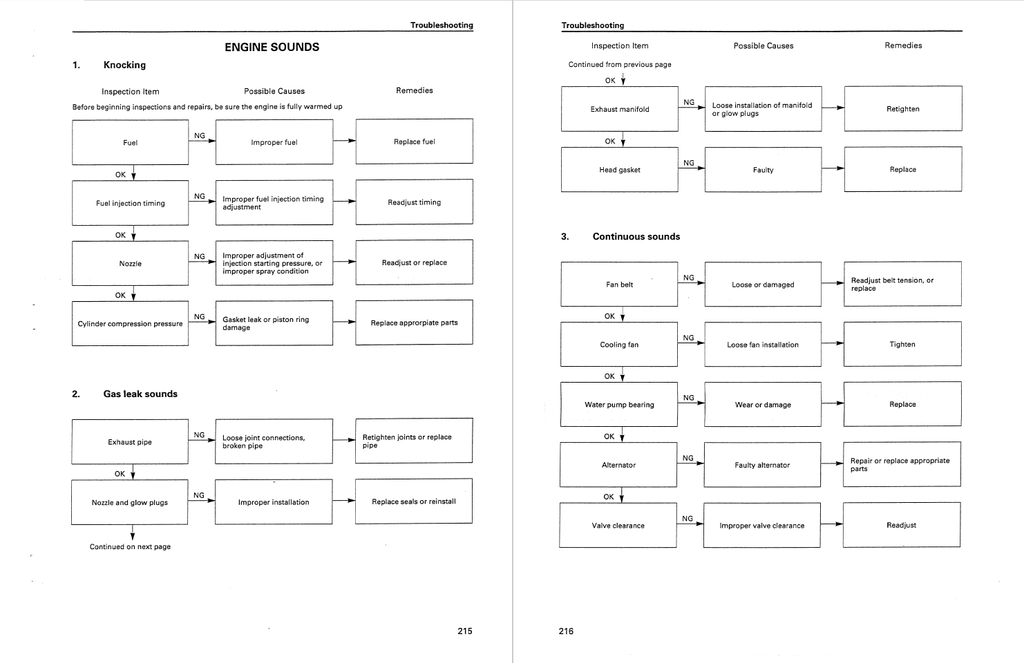

    • Engine sounds
      • Knocking
      • Gas leak sounds
      • Continuous sounds
      • Clanking sounds
  • Special Tools
    • Special Tools List

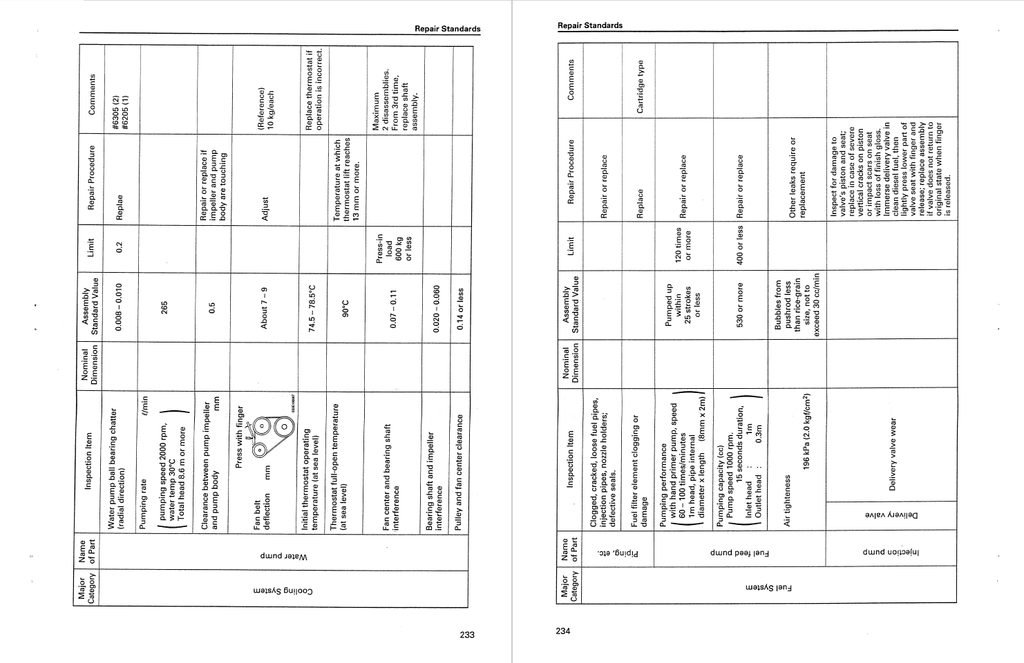

  • Repair Standards
    • General Rules
    • Engine Body
    • Main Operating Parts
    • Valves
    • Intake System
    • Lubricating System
    • Cooling System
    • Fuel System
    • Electrical
    • Final Inspection
