ISUZU / CASE Construction BB-4BG1T, BB-6BG1T Diesel Engine Service Manual 7-28771 English

Official Manual Overview

Take absolute command over your heavy-duty powertrain rebuilds with this specialized OEM Service Manual, explicitly published for the turbocharged ISUZU BB-4BG1T and BB-6BG1T Diesel Engines powering CASE machinery. Moving beyond basic overhauls, this volume provides elite-level machining data and unique diagnostic procedures rarely found in standard literature. It mandates rigorous metallurgical verification, detailing the exact 10% ammonium cuprous chloride chemical test to validate the crankshaft's Tufftriding (Nitrizing) integrity before reassembly. Technicians are armed with uncompromising rebuilding tolerances, including strict cylinder liner fitting clearances of 0.001–0.019 mm and the exact AX/CX piston grading matrix for the 105 mm standard bore. Furthermore, it outlines complete fuel delivery calibration for Bosch A and AD-type in-line pumps, detailing advanced two-stage nozzle pressure benchmarks and precise angular tightening sequences (39 Nm + 60°-90°) for connecting rod caps. From executing full block reconstruction to resolving complex VE-pump governor failures, this is the definitive blueprint for dealership-level diesel precision.

• Brands: ISUZU / CASE Construction
• Equipment Type: Diesel Engine
• Manuals Type: Service Manual
• Machine Model: BB-4BG1T, BB-6BG1T
• Serial Number: N/R
• Region: N/R
• Book Code: 7-28771
• Issued: Printed in France, February 2001
• Language: English
• Pages: 174
• File Format: PDF (Searchable)

Core Selling Points

• Two-Stage Fuel Injection Metrology: Master the intricacies of advanced emissions-compliant fuel delivery. This literature dictates the exact procedures for rebuilding dual-spring injection nozzles, requiring technicians to verify a strict 0.05 mm (0.0020 in) pre-lift measurement using a dial gauge and providing the complete shim thickness matrix (ranging from 0.40 mm to 0.70 mm) to perfectly calibrate the second nozzle opening pressure.
• Uncompromising Gear Train Clearances: Prevent catastrophic timing failures with absolute mathematical certainty. The manual outlines surgical teardown protocols for the timing gear case, mandating a strict timing gear backlash standard of 0.10 to 0.17 mm (0.004 to 0.007 in) and an idler gear end play limit of 0.2 mm (0.008 in) before requiring component replacement.
• Symptom-Driven Diagnostic Matrices: Eradicate the "parts cannon" approach to engine repair. The exhaustive troubleshooting section provides definitive logic paths for isolating complex mechanical faults. It rapidly guides mechanics to trace "Darkish Exhaust Smoke" or "Unstable Low Idling" directly to specific root causes, such as a defective fuel filter overflow valve, a worn VE pump cam disc, or a sticking piston ring.

Features & Highlights

• Progressive Torque Architecture: Eliminates the risk of blown head gaskets caused by improper fastening. The documentation dictates a highly specific three-stage angular tightening sequence for cylinder head bolts utilizing laminated steel gaskets: requiring an initial torque of 69 Nm (51 lb.ft), a secondary pass at 88 Nm (65 lb.ft), and a final rotational yield of 90° to 120°.
• High-Pressure Structural Integrity Testing: Features specialized protocols to validate block health before reassembly. It mandates a rigorous water jacket hydraulic pressure test, instructing builders to apply 490 kPa (71.1 psi) for exactly three minutes to expose hidden internal coolant leaks or micro-fractures in the cylinder head sealing faces.
• Complete Lubrication System Overhaul: Leaves no moving part to chance. The manual covers the complete disassembly of the gear-type oil pump and oil cooler assembly, dictating micrometer-level inspections that require a precise 0.15 mm (0.0059 in) clearance between the oil pump body and the driven gear to ensure continuous rotational protection.

Problem Solver

• Cures Phantom Power Loss & Hard Starting: Stop guessing whether a performance drop is a fuel issue or a top-end failure. By utilizing the manual's exact compression testing baseline—specifically targeting 3 MPa (440 psi) at 200 rpm—technicians can definitively prove if an engine is suffering from worn cylinder liners or simply needs an injection pump timing adjustment.
• Prevents Fatal Machining Mistakes: Saves machine shops from destroying expensive engine blocks. The manual explicitly warns that the inner dry-type cylinder liners feature specialized chrome plating and absolutely cannot be rebored or honed, dictating mandatory replacement when scored.
• Eradicates Injection Timing Errors: Resolves severe engine knocking and white exhaust smoke caused by misalignment. It outlines the absolute B.T.D.C. alignment procedures, utilizing the 8-notch damper pulley marks to lock the 6BG1T at exactly 8° and the gear case marks to lock the 4BG1T at 9°, guaranteeing perfect combustion synchronization.

Important Pre-Purchase Advisories

• Dedicated Powertrain Focus: Please be aware that this publication is a dedicated powerplant manual explicitly for the CASE/Isuzu BB-4BG1T and BB-6BG1T diesel engines. It does not contain hydraulic schematics, CAN-Bus chassis wiring, or undercarriage service instructions for the host machinery.
• Special Tools Section Note: While proprietary service tools (such as nozzle adjustment retaining nuts and taper bushing removers) are heavily referenced throughout the repair sequences, the manufacturer officially noted that the dedicated "Special Tool List" (Section 13) was to be distributed at a later date and is omitted from the original print.

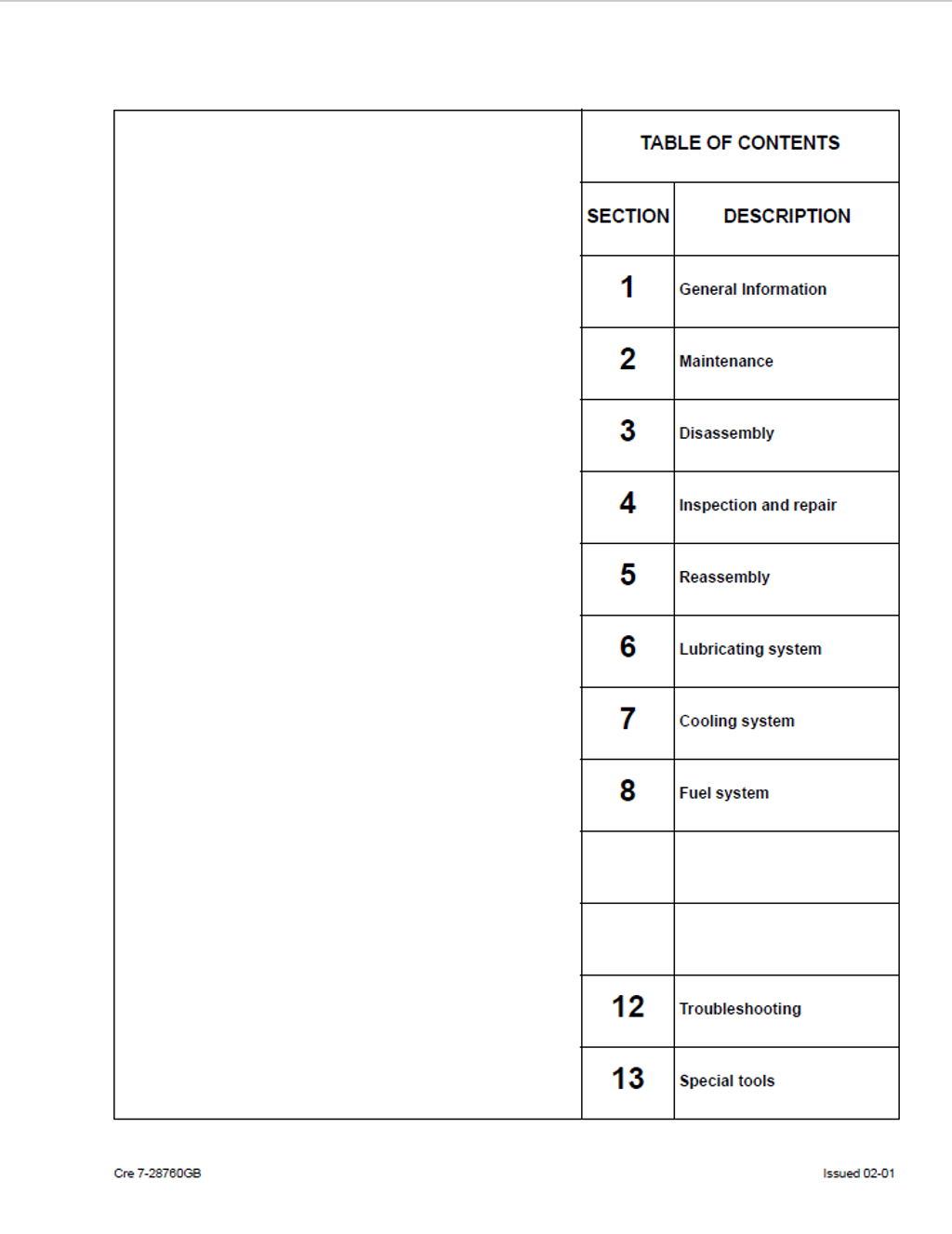

Table of Contents

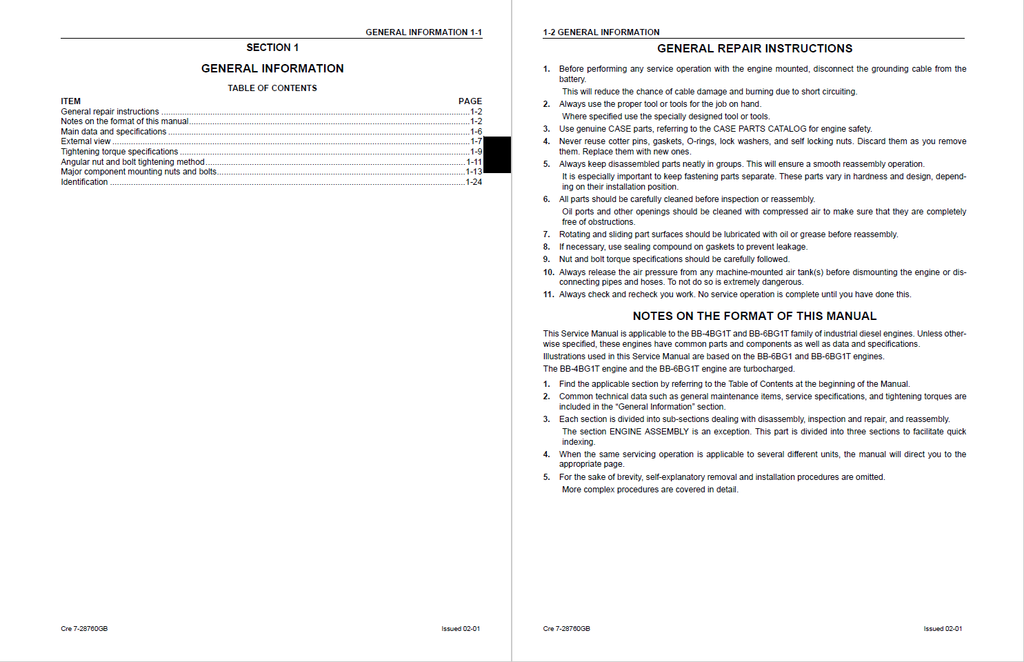

• General Information
  • General repair instructions
  • Notes on the format of this manual

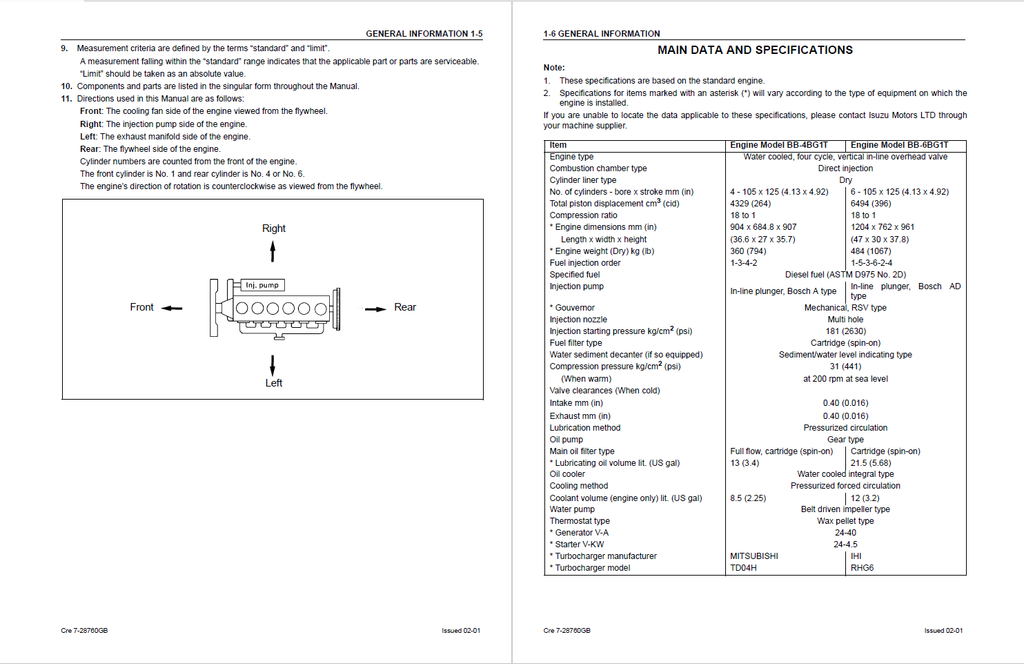

  • Main data and specifications

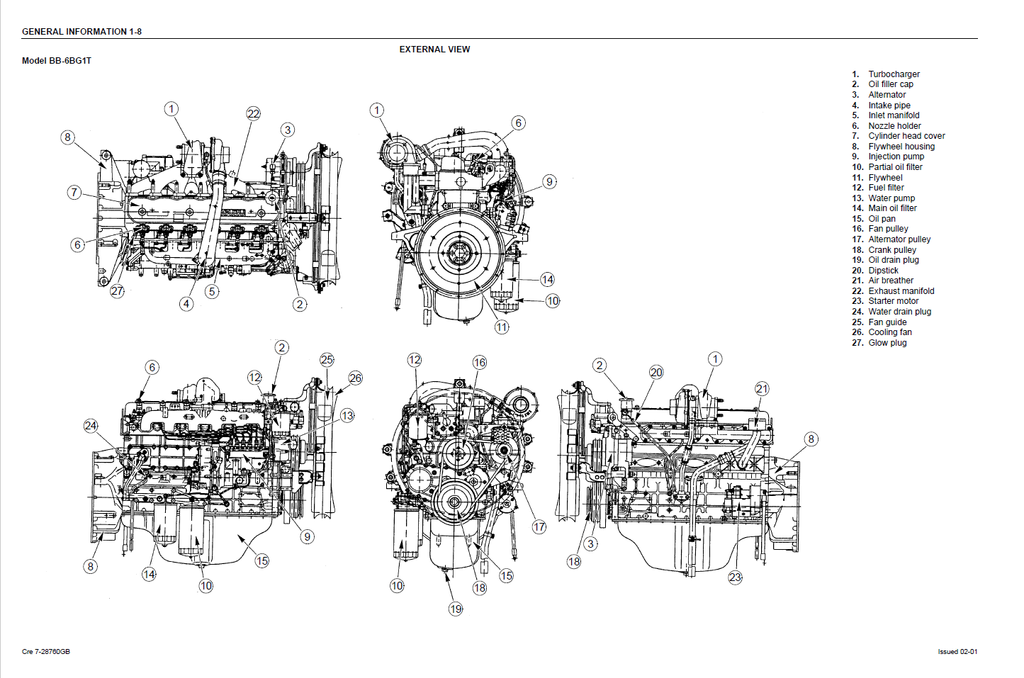

  • External view
  • Tightening torque specifications
  • Angular nut and bolt tightening method
  • Major component mounting nuts and bolts
  • Identification
• Maintenance
  • Fuel system
  • Cooling system
  • Valve clearance adjustment
  • Injection timing

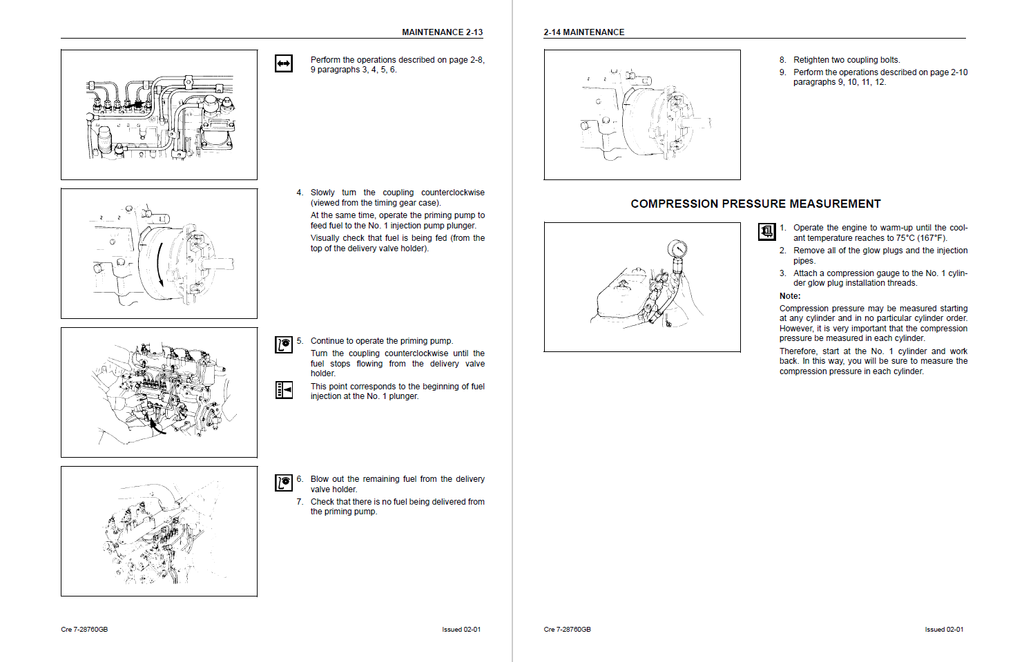

  • Compression pressure measurement
  • Turbocharger inspection
  • Engine repair kit
• Engine Assembly I (Disassembly)
  • External parts disassemby steps
  • Major components
  • Rocker arm and rocker arm shaft disassembly steps
  • Cylinder head disassembly steps
  • Piston and connecting rod disassembly steps

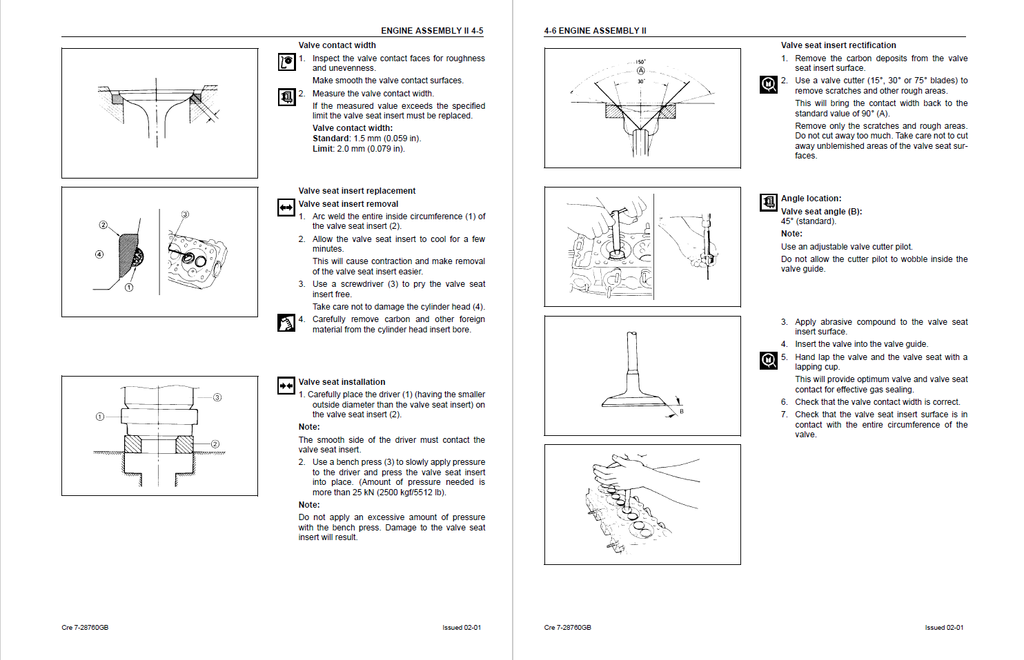

• Inspection and repair
• Engine Assembly III (Reassembly)
  • Piston and connecting rod reassembly steps

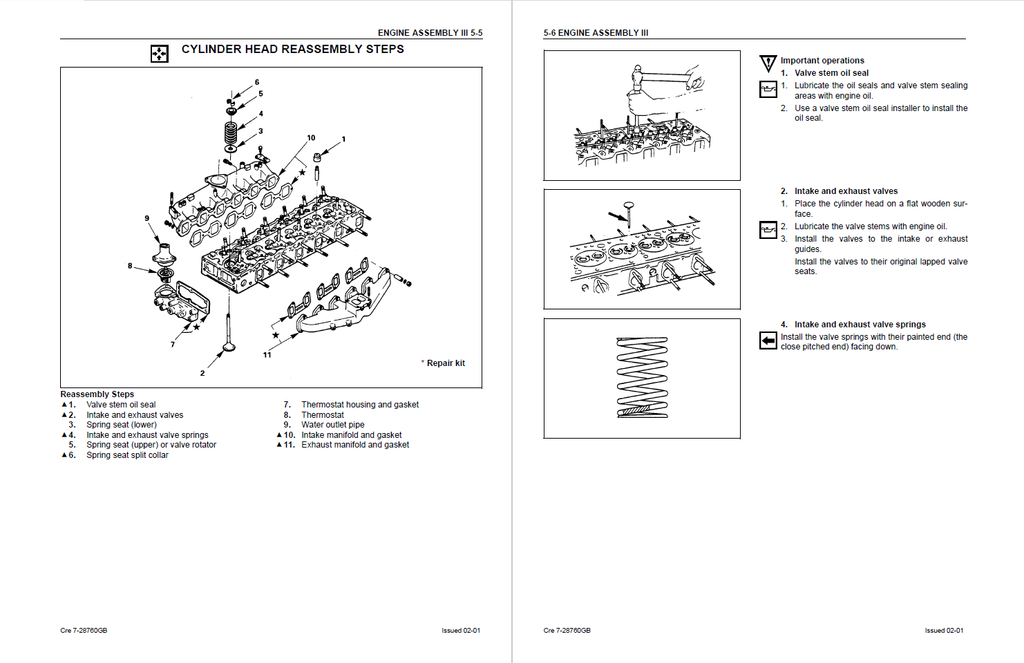

  • Cylinder head reassembly steps
  • Rocker arm and rocker arm shaft reassembly steps
  • Major component reassembly steps I
  • Major component reassembly steps II
  • External part reassembly steps (Left-hand side)
  • External part reassembly steps (Right-hand side)
  • Engine tuning operation
• Lubricating System
  • General information

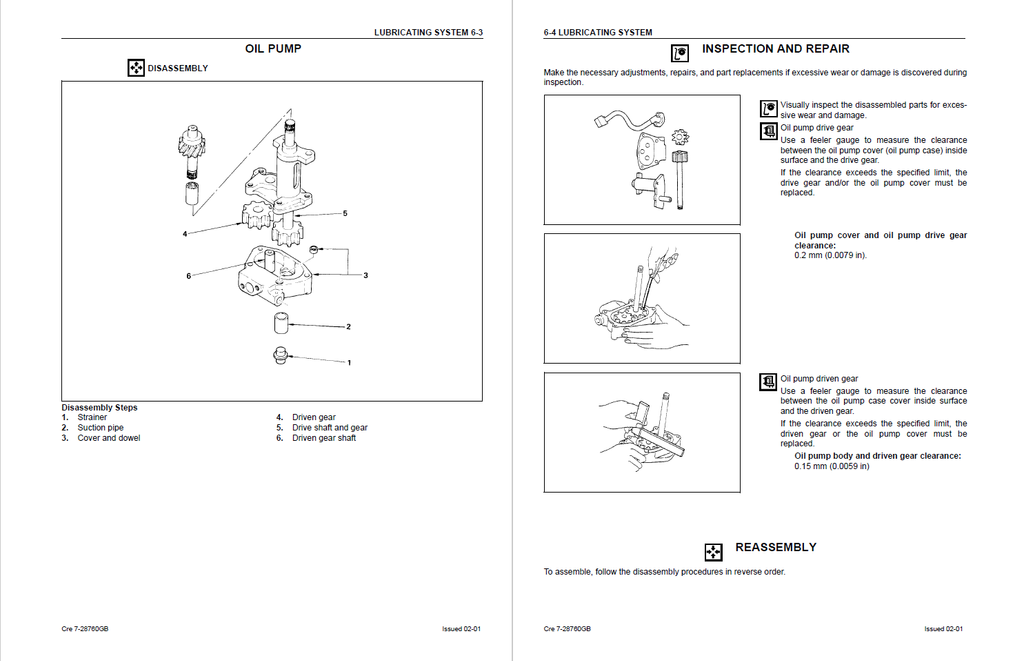

  • Oil pump
  • Oil cooler
• Cooling System
  • General description
  • Water pump
  • Thermostat
• Fuel System
  • General description
  • Injection nozzle (Single stage)

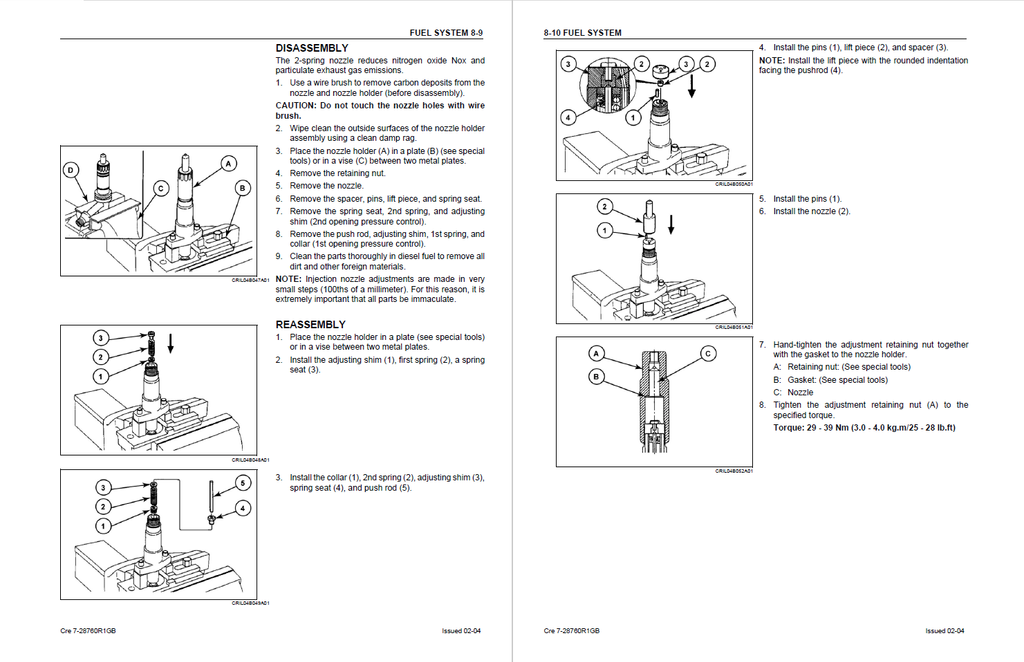

  • Injection nozzle (Two stage)
• Troubleshooting
  • Hard starting
    • Starter motor inoperative
    • Starter motor operates but engine does not turn over
    • Engine turns over but does not start though fuel is being delivered to the injection pump
    • Engine turns over but does not start
  • Fuel is not being delivered to the injection pump
  • Unstable low idling
  • Insufficient power

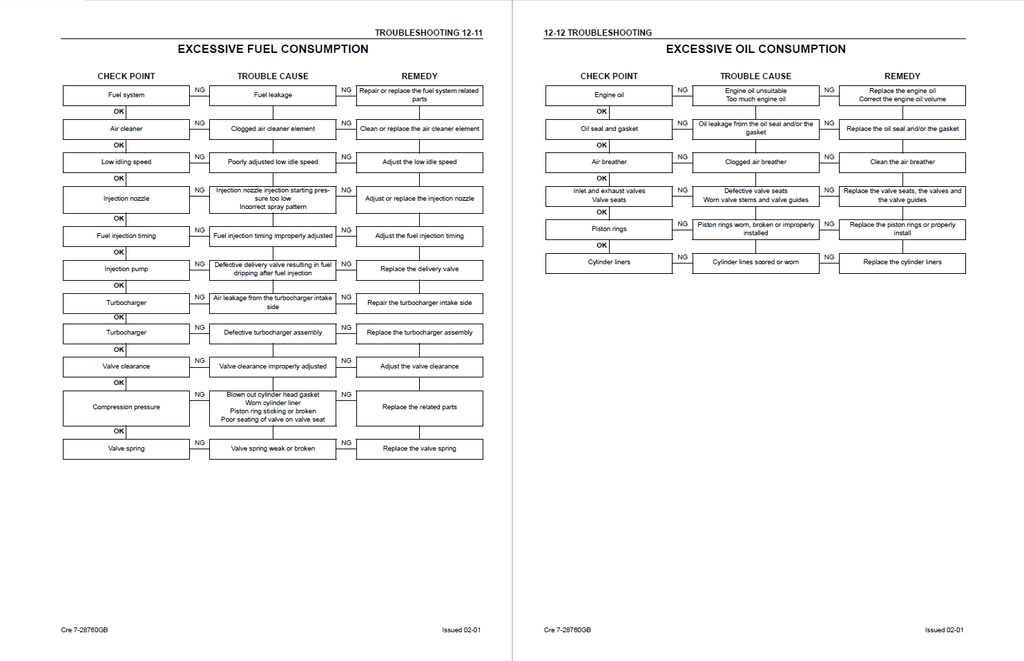

  • Excessive fuel consumption
  • Excessive oil consumption
  • Overheating
  • White exhaust smoke
  • Darkish exhaust smoke
  • Oil pressure does not rise
  • Abnormal engine noise
