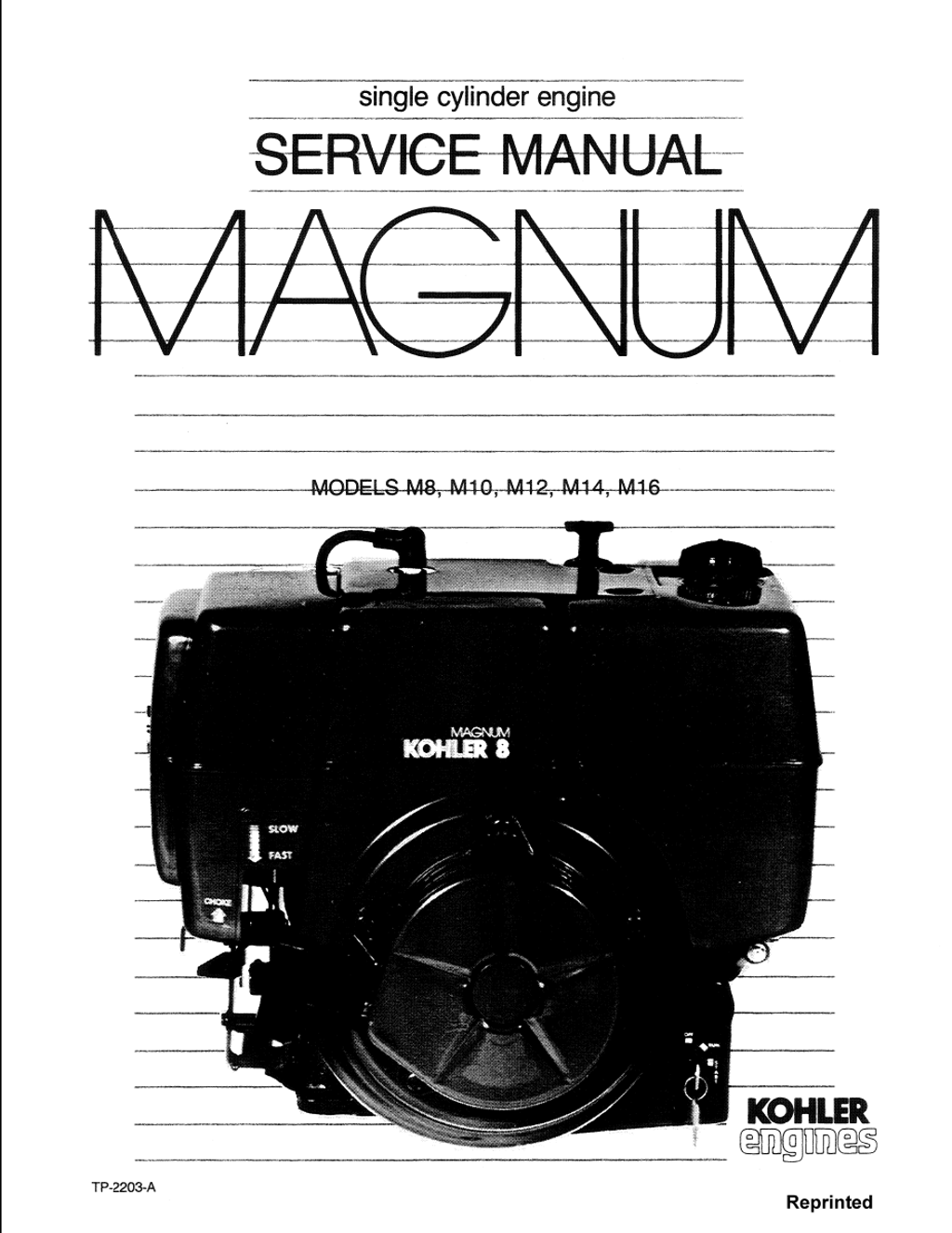

Kohler Engines Magnum M8, M10, M12, M14, M16 Single Cylinder Gasoline Engine Service Manual 40547800 English

$ 15.99 USD

Brands: Kohler / Sperry New Holland / New Holland Agriculture

Equipment Type: Gasoline Engine

Manuals Type: Service Manual

Machine Model & Serial Number: Magnum M8, M10, M12, M14, M16

Region: N/R

Book Code: 40547800 (TP-2203-A)

Issued: Reprinted 3/86

Language: English

Pages: 164

File Format: Portable Document Format (PDF)

Remark: The definitive 164-page factory service manual for Kohler Magnum single cylinder engines. This is a complete internal engine overhaul manual. High Value Info: Contains extreme deep-level procedures for cylinder reconditioning (boring and crosshatch honing), precision measurement of Posi-Lock connecting rods, crankshaft journal grinding limits, and complete reassembly of the Automatic Compression Release (ACR) system. Also covers exhaustive servicing for Kohler-built adjustable jet carburetors and electronic magneto ignition modules.

SECTION 1 - GENERAL INFORMATION
- Engine Identification Numbers (Model, Spec, Serial)
- Safety Warning and Caution Statements
- Oil Recommendations (API Class SF, SAE Viscosity Grades)
- Fuel Recommendations and Octane Ratings
- Overall Dimensions (M8 with Side/Top Tanks, M10-M16 Models)
- Standard Torque Values (Cast Iron/Steel vs. Aluminum)
- Specifications, Tolerances, and Special Torque Values
SECTION 2 - SPECIAL TOOLS
- Special Service Tool Kit No. 3211
- Valve Service Tools (Pullers, Installers, Reamers)
- Seal and Bearing Installers and Protector Sleeves
- Engine Analysis Kit No. 25 800 01 (Digital Engine Analyzer, Manometer)
- Electronic Ignition System Tester Construction
SECTION 3 - PERIODIC MAINTENANCE
- Required Maintenance Schedule and Frequency
- Checking/Changing Oil and Oil Sentry Protection
- Air Cleaner Service (Precleaner and Paper Element)
- Spark Plug Servicing and Gap Adjustments
- Reduction Gear Unit Service
- Cylinder Head and Combustion Chamber Cleaning
- Valve-to-Tappet Clearance Checks
- Engine Storage Procedures
SECTION 4 - TROUBLESHOOTING
- Troubleshooting Guide (Starting, Running, Power Loss, Overheating)
- External Engine Inspection and Cleaning
- Basic Engine Tests (Crankcase Vacuum Test with Manometer)
SECTION 5 - AIR CLEANER
- Disassembly and Reassembly Procedures
- Air Cleaner Component Inspection and Sealing
SECTION 6A - FUEL SYSTEM AND GOVERNOR
- Fuel System Operation and Troubleshooting Flowcharts
- Fuel Tank and Shut-off Valve Service
- Nylon-Bodied Mechanical Fuel Pump (Removal, Installation, Testing)
- Kohler-Built Side Draft Adjustable Jet Carburetor
  - Preliminary and Final Adjustments
  - Complete Disassembly and Deep Cleaning
  - Throttle and Choke Shaft Replacement (Bushing Installation)
  - Float Level and Float Drop Calibration
- Centrifugal Flyweight Mechanical Governor
  - Operation Theory (Regulating Pin, Cross Shaft)
  - Initial Adjustment and High-Speed Stop Setup
  - Governor Sensitivity (Spring Position) Adjustment
- Engine Mounted Throttle and Choke Control Rebuild (M8 vs. M10-M16)
SECTION 7 - RETRACTABLE STARTERS
- Model M8 Recoil Starter (Pawl Replacement, Rope Replacement)
- Models M10, M12, M14, M16 Recoil Starter
  - Spring Tension Release and Disassembly
  - Recoil Spring Replacement and Lubrication
SECTION 8 - ELECTRICAL SYSTEM AND COMPONENTS
- Magnum Electronic Magneto Ignition System
  - Theory of Operation and Magneto Air Gap Adjustment
  - Ignition Module Pinpoint Testing (Primary/Secondary Resistance)
  - Kill Lead with Optional In-Line Diode Testing
- Battery Charging Systems
  - 70 Watt Lighting Stator Diagnostics
  - 1.25 Amp and 3 Amp Unregulated Systems
  - 15 Amp and 25 Amp Regulated Systems (Rectifier-Regulator Testing)
- Battery Maintenance and Continuity Testing
- Starter Solenoid and Bendix Drive Electric Starter Overhaul
- Oil Sentry™ Low Oil Level Monitor (Float Switch Removal, Testing, Installation)
SECTION 9 - AUTOMATIC COMPRESSION RELEASE (ACR)
- Theory of Operation (Flyweights and Camshaft Tab)
- Benefits and Starting Diagnostics
SECTION 10A & 10B - DISASSEMBLY
- Complete Engine Teardown Sequence (M8 vs. M10-M16)
- Removing Flywheel (Strap Wrench and Puller usage)
- Separating Crankcase and Bearing Plate
SECTION 11 - INSPECTION AND REPAIR/RECONDITIONING
- Cylinder Head Flatness and Warpage Checks
- Cylinder Block Overhaul: Resizing, Boring, and Honing Procedures
- Piston-to-Bore Clearance Precision Measurement
- Valve Overhaul: Reaming Guides, Seat Inserts, and Lapping
- Piston and Ring Service (Style A, C, and D Identification)
- Posi-Lock Connecting Rod Inspection and Offset Identification
- Balance Gears and Stub Shaft Press Depths (M10-M16)
- Camshaft and Crankshaft Journal Wear Limits and Fillet Radii
SECTION 12A & 12B - REASSEMBLY
- Crankshaft Installation and Timing Mark Alignment
- Measuring and Adjusting Crankshaft and Camshaft End Play
- Cylinder Head Fastener Tightening Sequences and Torque
- Sealant Patterns and Crankcase Sealing

Foreword
This manual deals with specific mechanical and electrical information needed by engine mechanics for troubleshooting, servicing, repairing, or overhauling the engine. Accurate measurements and adherence to specified torque values are critical for the successful reconditioning of Kohler Magnum engines. Use only genuine Kohler replacement parts to ensure quality and durability. The Automatic Compression Release (ACR) is a precision-engineered component; never attempt to bend the flyweight tab as it will break.
